WATER LINES

Assembly ID: 3210.096-03

WATER LINES

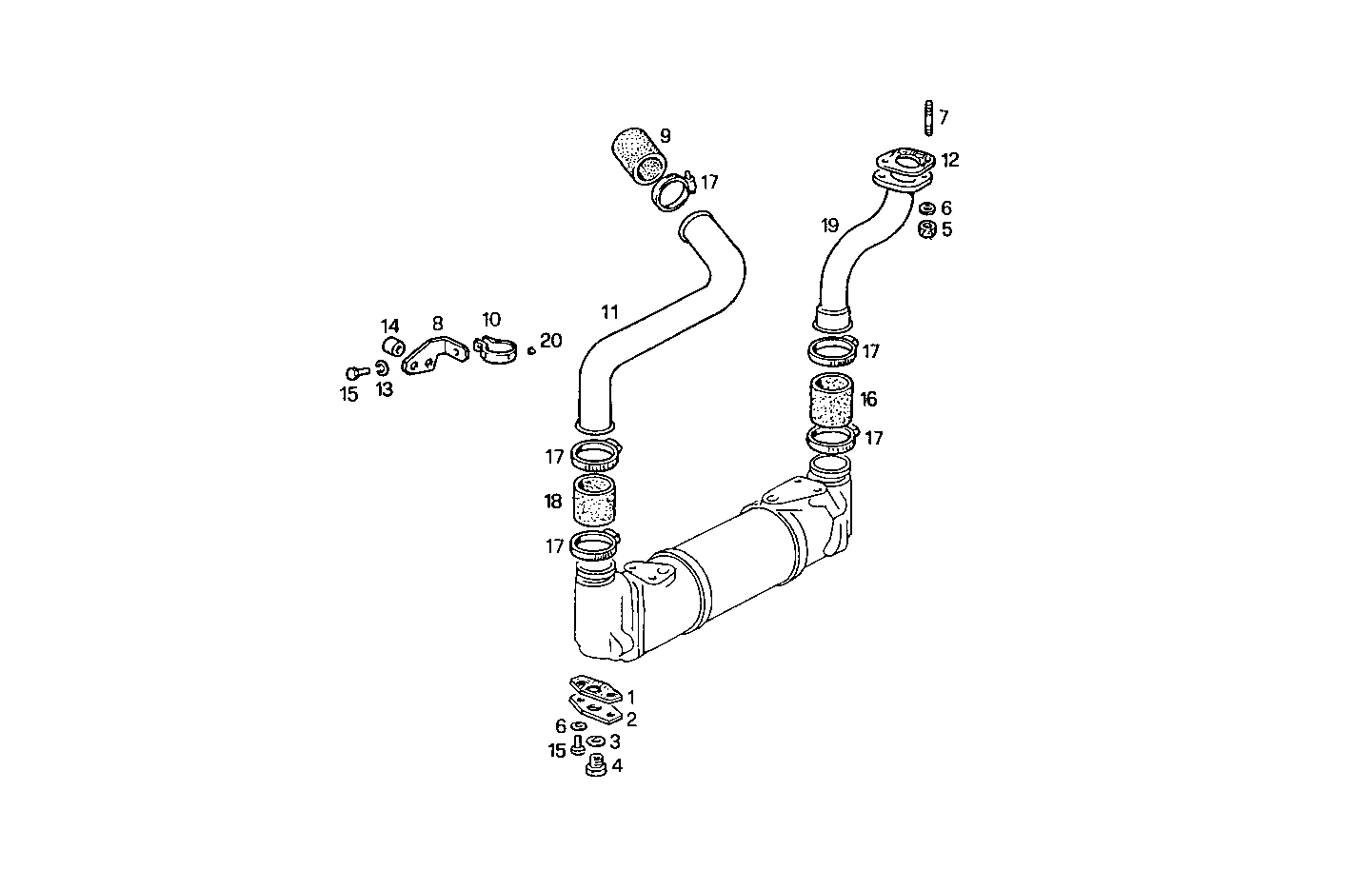

Parts

# Part number Description Note Quantity
1 4863947 FLAT ENGINE GASKET 1
2 1365519 FLANGE 1
3 4858609 WASHER 1
4 10300711 LOCK PLUG 1
5 17037931 HEXAGON NUT 2
6 11198074 SPRING WASHER 4
7 13517021 STUD 2
8 8014710 RETAINER 1
9 99432745 WATER HOSE 1
10 4910359 CLIP 1
11 98428450 WATER PIPE 1
12 4863951 FLAT ENGINE GASKET 1
13 17089474 SPRING WASHER 1
14 13605811 SPACER 1
15 16605624 HEXAGON BOLT 3
16 98437153 WATER HOSE 1
17 17764892 PIPE CLIP 6
18 4863960 WATER HOSE 1
19 4709713 WATER PIPE 1
20 4565875 RUBBER PAD 3

Applies to engines

Engine Family
GE8210SRi26.02A955 GE8210SRi26 view
GE8210SRi27.00A955 GE8210SRi27 view
GS8210SRi26.02 GS8210SRi26 view
GS8210SRi27.00 GS8210SRi27 view
GE8210SRi27.01A955 GE8210SRi27 view
GS8210SRi26.02A601 GS8210SRi26 view
GS8210SRi26.02A602 GS8210SRi26 view
GS8210SRi26.02A651 GS8210SRi26 view
GS8210SRi27.00A601 GS8210SRi27 view
8210SRi26.02 8210SRi26 view
8210SRi27.00 8210SRi27 view
8210SRi26.03 8210SRi26 view
8210SRi27.01 8210SRi27 view
8210SRi26.02A550 8210SRi26 view
8210SRi26.02A580 8210SRi26 view
8210SRi27.00A550 8210SRi27 view
8210SRi27.00A580 8210SRi27 view
8210SRi26.03A550 8210SRi26 view
8210SRi26.03A580 8210SRi26 view
8210SRi27.01A550 8210SRi27 view
8210SRi27.01A580 8210SRi27 view
8210SRi26.03A602 8210SRi26 view
8210SRi27.01A603 8210SRi27 view
GE8210SRi26.03R970 GE8210SRi26 view
GE8210SRi27.01N970 GE8210SRi27 view
GE8210SRi27.01R970 GE8210SRi27 view
GE8210SRi26.03A71M GE8210SRi26 view
