| 1 |
61315629
|

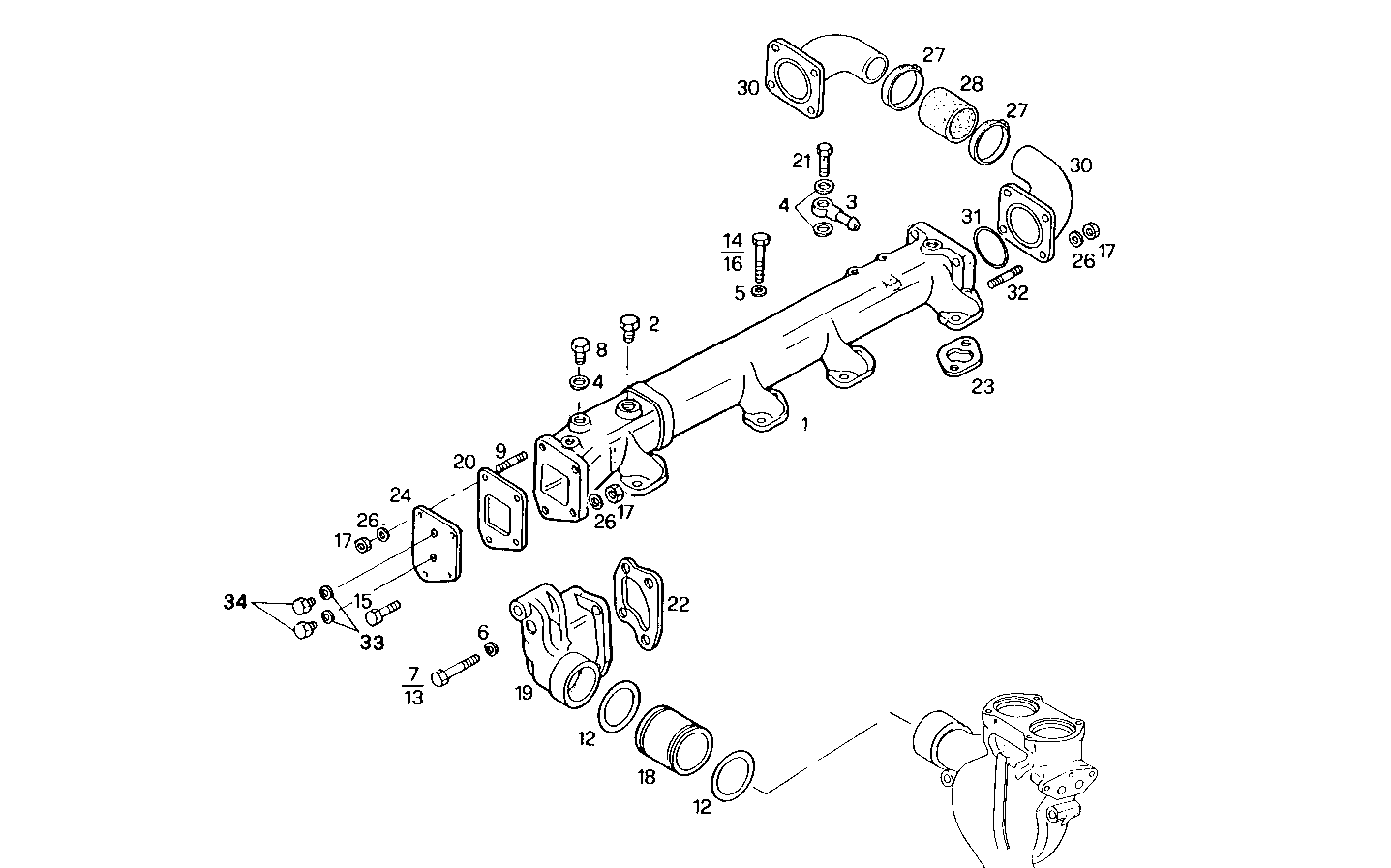

WATER MANIFOLD
|
|
1
|
|
| 2 |
16997411
|
THREADED PLUG
|
|
1
|
|
|
7177194 |
THREADED PLUG |
|
1 |
|
| 3 |
98417685
|
PIPE
|
|
1
|
|
| 4 |
4858607
|
WASHER
|
|
3
|
|
| 5 |
17089574
|
WASHER
|
|
8
|
|
|
17089575 |
WASHER |
|
8 |
|
| 6 |
17090274
|
WASHER
|
|
4
|
|
| 7 |
11306921
|
SCREW
|
|
2
|
|
| 8 |
16992211
|
THREADED PLUG
|
|
1
|
|
| 9 |
16746824
|
STUD
|
|
3
|
|
| 12 |
17296081
|
O-RING
|
|
4
|
|
| 13 |
15971321
|
HEXAGON BOLT
|
|
2
|
|
| 14 |
16606324
|
HEXAGON BOLT
|
|
4
|
|
| 15 |
16605824
|
HEXAGON BOLT
|
|
1
|
|
| 16 |
16605734
|
HEXAGON BOLT
|
|
4
|
|
| 17 |
17037931
|
HEXAGON NUT
|
|
12
|
|
| 18 |
61317101
|
CONNECTOR SLEEVE
|
|
2
|
|
| 19 |
8014862
|
WATER PIPE
|
|
1
|
|
| 20 |
61318822
|
FLAT ENGINE GASKET
|
|
1
|
|
| 21 |
8009696
|
SCREW CONNECTOR
|
|
1
|
|
| 22 |
61318820
|
FLAT ENGINE GASKET
|
|
1
|
|
| 23 |
61319050
|
FLAT ENGINE GASKET
|
|
4
|
|
| 24 |
8017510
|
COVER
|
|
1
|
|
| 26 |
17089474
|
SPRING WASHER
|
|
8
|
|
| 27 |
17765091
|
CLIP
|
|
2
|
|
| 28 |
8016642
|
WATER HOSE
|
|
1
|
|
| 30 |
8016620
|
EXHAUST COOL. ELBOW
|
|
2
|
|
| 31 |
17290281
|
O-RING
|
|
2
|
|
| 32 |
16729424
|
STUD
|
|
8
|
|
| 33 |
4858608
|
SEAL GASKET
|
|
2
|
|
| 34 |
16992311
|
LOCK PLUG
|
|
2
|
|
|
16992315 |
LOCK PLUG |
|
2 |
|
