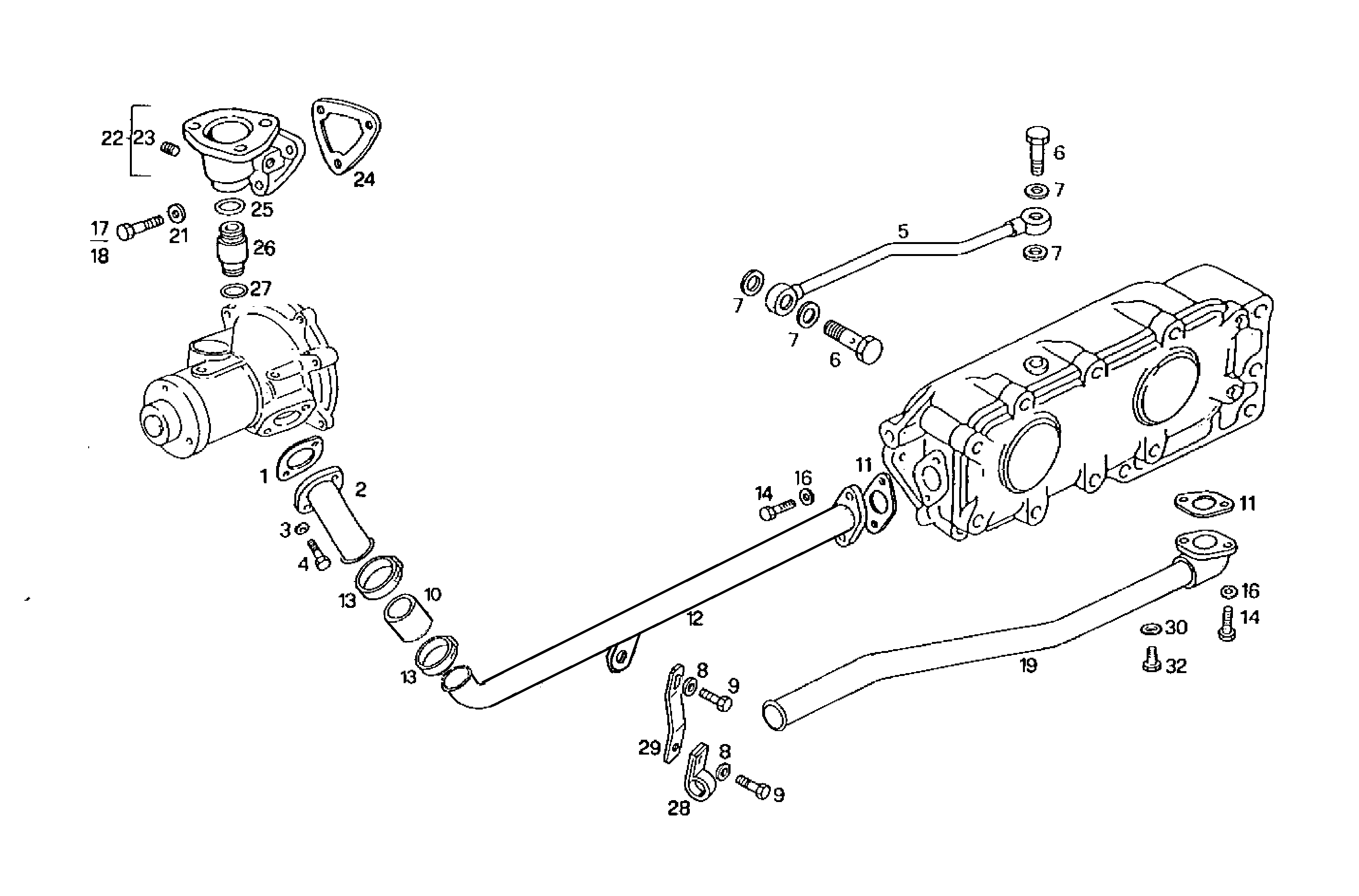

| 1 |
4852556
|
FLAT ENGINE GASKET
|
|
1
|
|
| 2 |
4800147
|
PIPE
|
|
1
|
|
| 3 |
17094911
|
WASHER
|
|
2
|
|
| 4 |
98401723
|
HEXAGON BOLT
|
|
2
|
|
| 5 |
99470277
|
WATER PIPE
|
|
1
|
|
| 6 |
4864080
|
SCREW CONNECTOR
|
|
2
|
|
| 7 |
4858606
|
GASKET
|
|
4
|
|
| 8 |
17089974
|
SPRING WASHER
|
|
2
|
|
| 9 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
| 10 |
98434881
|
WATER HOSE
|
|
1
|
|
| 11 |
8021305
|
GASKET
|
|
2
|
|
| 12 |
500336451
|
WATER PIPE
|
|
1
|
|
| 13 |
17764892
|
PIPE CLIP
|
|
2
|
|
| 14 |
16043521
|
SCREW
|
|
4
|
|
| 16 |
17089474
|
SPRING WASHER
|
|
6
|
|
| 17 |
11234724
|
HEXAGON BOLT
|
|
2
|
|
|
11234731 |
HEXAGON BOLT |
|
2 |
|
| 18 |
15004021
|
HEXAGON BOLT
|
|
2
|
|
| 19 |
8025517
|
WATER PIPE
|
|
1
|
|
| 21 |
17090174
|
SPRING WASHER
|
|
3
|
|
| 22 |
4823608
|
THERMOSTAT BODY
|
|
1
|
|
|
16997611 |
THERMOSTAT BODY |
|
1 |
|
| 23 |
16997611
|
THREADED PLUG
|
|
1
|
|
| 24 |
4851926
|
FLAT ENGINE GASKET
|
|
1
|
|
| 25 |
17288681
|
O-RING
|
|
1
|
|
| 26 |
98415712
|
PIPE SOCKET
|
|
1
|
|
|
504123603 |
PIPE SOCKET |
|
1 |
|
| 27 |
17282281
|
O-RING
|
|
1
|
|
| 28 |
8103077
|
CLIP
|
|
1
|
|
| 29 |
8005101
|
RETAINER
|
|
1
|
|
| 30 |
4858606
|
GASKET
|
|
1
|
|
| 32 |
16992111
|
THREADED PLUG
|
|
1
|
|
|
16992115 |
THREADED PLUG |
|
1 |
|
