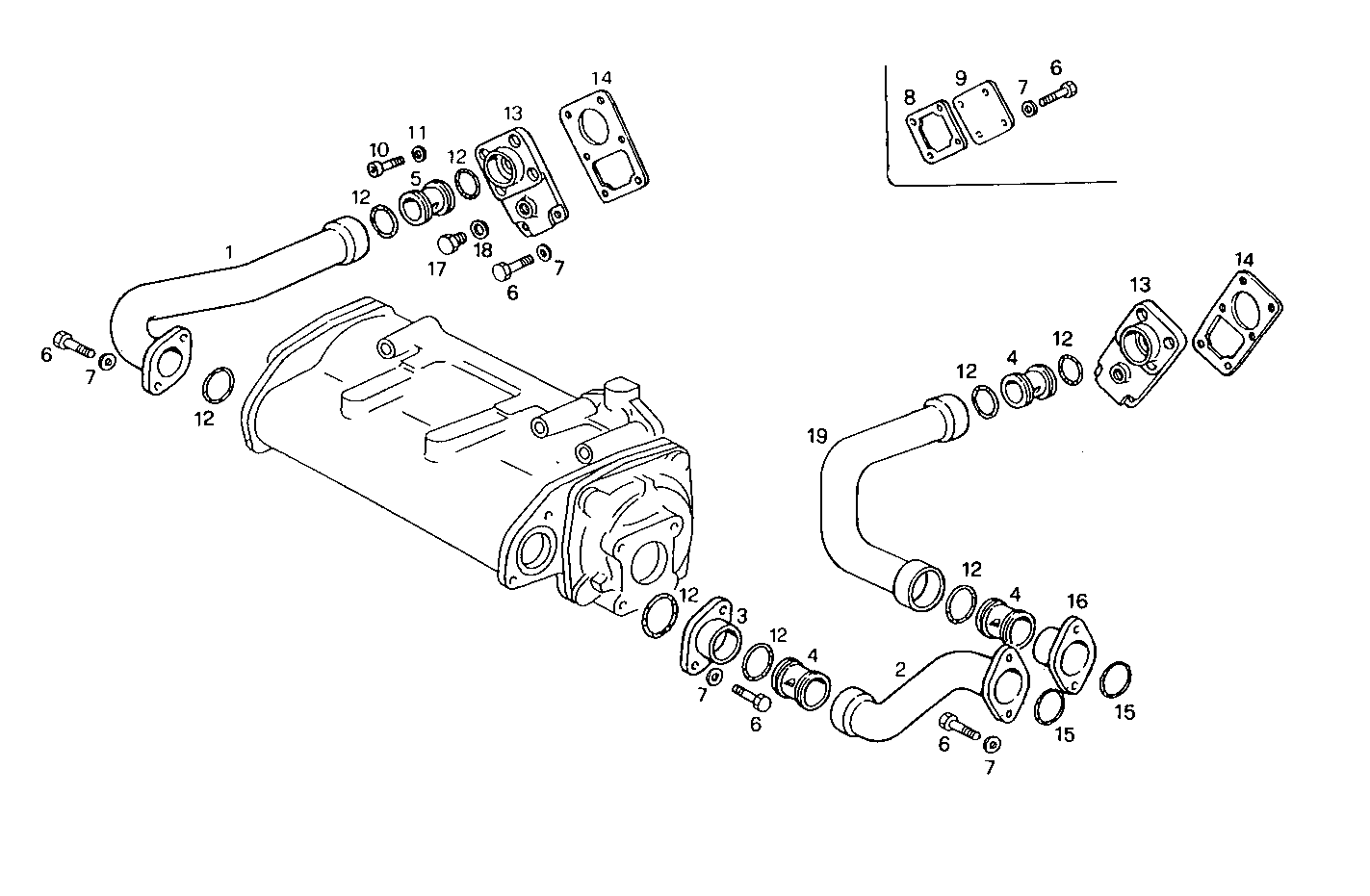

| 1 |
8009593
|
WATER PIPE
|
|
1
|
|
| 2 |
8020812
|
WATER PIPE
|
|
1
|
|
| 3 |
8009632
|
FLANGE
|
|
1
|
|
|
16605934 |
FLANGE |
|
1 |
|
| 4 |
8009637
|
WATER PIPE
|
|
1
|
|
| 5 |
8112496
|
CONNECTION
|
|
1
|
|
| 6 |
16605624
|
HEXAGON BOLT
|
|
18
|
|
|
16605635 |
HEXAGON BOLT |
|
18 |
|
| 7 |
17089474
|
SPRING WASHER
|
|
18
|
|
| 8 |
8105608
|
GASKET
|
|
2
|
|
| 9 |
8107612
|
COVER
|
|
2
|
|
| 10 |
16690724
|
CYLIND-HEAD SCREW
|
|
8
|
|
| 11 |
17101534
|
SPRING WASHER
|
|
8
|
|
| 12 |
17289981
|
O-RING
|
|
8
|
|
| 13 |
8009895
|
WATER PIPE
|
|
2
|
|
| 14 |
8101855
|
GASKET
|
|
2
|
|
| 15 |
17284981
|
O-RING
|
|
2
|
|
| 16 |
8014082
|
FLANGE
|
|
1
|
|
| 17 |
16992340
|
THREADED PLUG
|
|
2
|
|
| 18 |
4858608
|
SEAL GASKET
|
|
2
|
|
| 19 |
8020813
|
WATER PIPE
|
|
1
|
|
