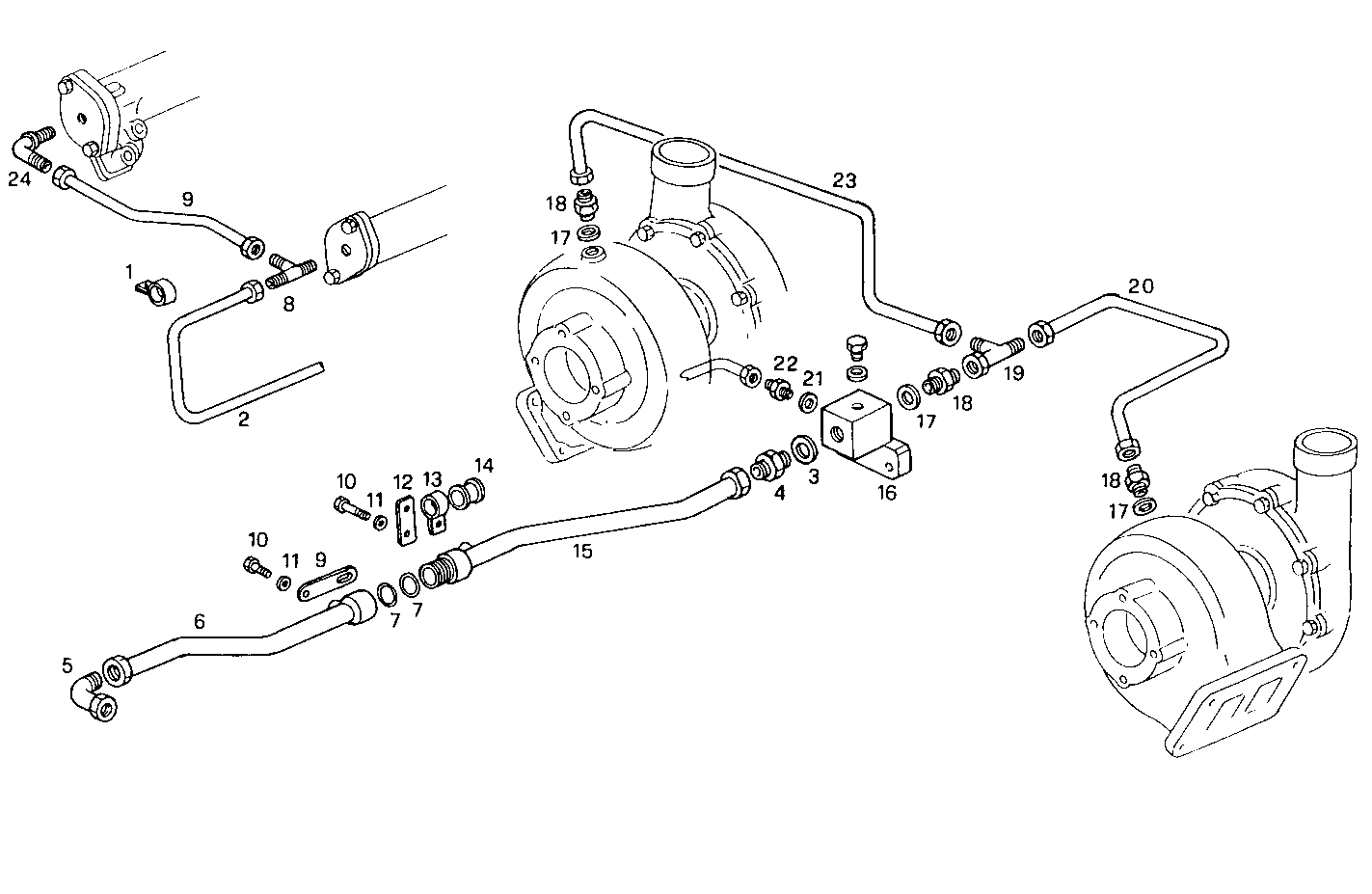

WATER LINES

Parts

#	Part number	Description	Quantity
1	17316390	CLIP	1
	10450090	CLIP	1
2	8022525	WATER PIPE	1
3	16528060	WASHER	2
4	16527914	PIPE SOCKET	2
5	16581714	PIPE SOCKET	1
6	8023716	WATER PIPE	1
7	17282781	O-RING	2
	98465110	O-RING	2
8	8112120	PIPE SOCKET	1
9	8011148	WATER PIPE	1
10	16605524	HEXAGON BOLT	3
11	17089474	SPRING WASHER	3
12	8023573	RETAINER	1
13	4621091	CLIP	1
14	4626901	CLIP	1
15	8023568	WATER PIPE	1
16	8023388	CHOCK	1
17	98429282	SEAL GASKET	3
18	8110943	PIPE SOCKET	3
19	16545011	T-COUPLING	1
20	8022521	WATER PIPE	1
21	4858607	WASHER	1
22	16500114	THREADED UNION	1
23	8022522	WATER PIPE	1
24	8112247	PIPE SOCKET	1
	FPT8112247	PIPE SOCKET	1
