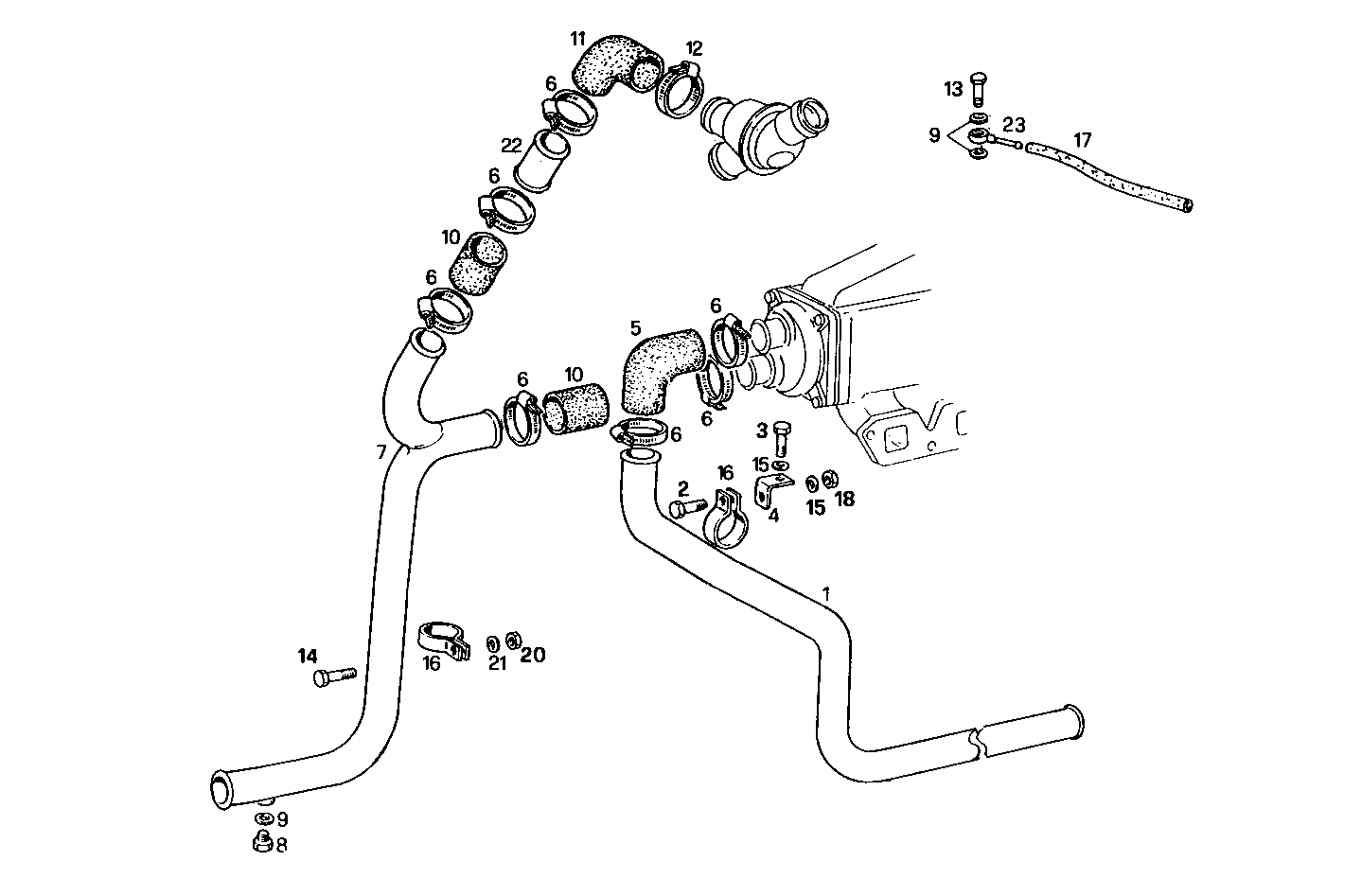

| 1 |
8029521
|
WATER PIPE
|
|
1
|
|
| 2 |
16607524
|
HEXAGON BOLT
|
|
1
|
|
| 3 |
15970521
|
HEXAGON BOLT
|
|
1
|
|
|
15970524 |
HEXAGON BOLT |
|
1 |
|
| 4 |
8005646
|
RETAINER
|
|
1
|
|
| 5 |
8017516
|
WATER HOSE
|
|
1
|
|
| 6 |
17764791
|
CLIP
|
|
7
|
|
|
17764792 |
CLIP |
|
7 |
|
| 7 |
8019644
|
WATER PIPE
|
|
1
|
|
| 8 |
16992111
|
THREADED PLUG
|
|
2
|
|
|
16992115 |
THREADED PLUG |
|
2 |
|
| 9 |
4858606
|
GASKET
|
|
2
|
|
| 10 |
17742687
|
RUBBER SLEEVE
|
|
1
|
|
| 11 |
4951429
|
WATER HOSE
|
|
1
|
|
| 12 |
17764891
|
CLIP
|
|
1
|
|
|
17764892 |
CLIP |
|
1 |
|
| 13 |
4864079
|
SCREW CONNECTOR
|
|
1
|
|
| 14 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
| 15 |
17090174
|
SPRING WASHER
|
|
2
|
|
| 16 |
8027280
|
CLIP
|
|
2
|
|
| 17 |
19056687
|
RUBBER HOSE
|
|
1
|
|
|
17724587 |
RUBBER HOSE |
|
1 |
|
| 18 |
17038121
|
HEXAGON NUT
|
|
1
|
|
|
17038131 |
HEXAGON NUT |
|
1 |
|
| 19 |
17080174
|
WASHER
|
|
1
|
|
| 20 |
17037931
|
HEXAGON NUT
|
|
1
|
|
| 21 |
17089474
|
SPRING WASHER
|
|
1
|
|
| 22 |
8019645
|
WATER PIPE
|
|
1
|
|
| 23 |
4627990
|
BREATHER CONN.
|
|
1
|
|
