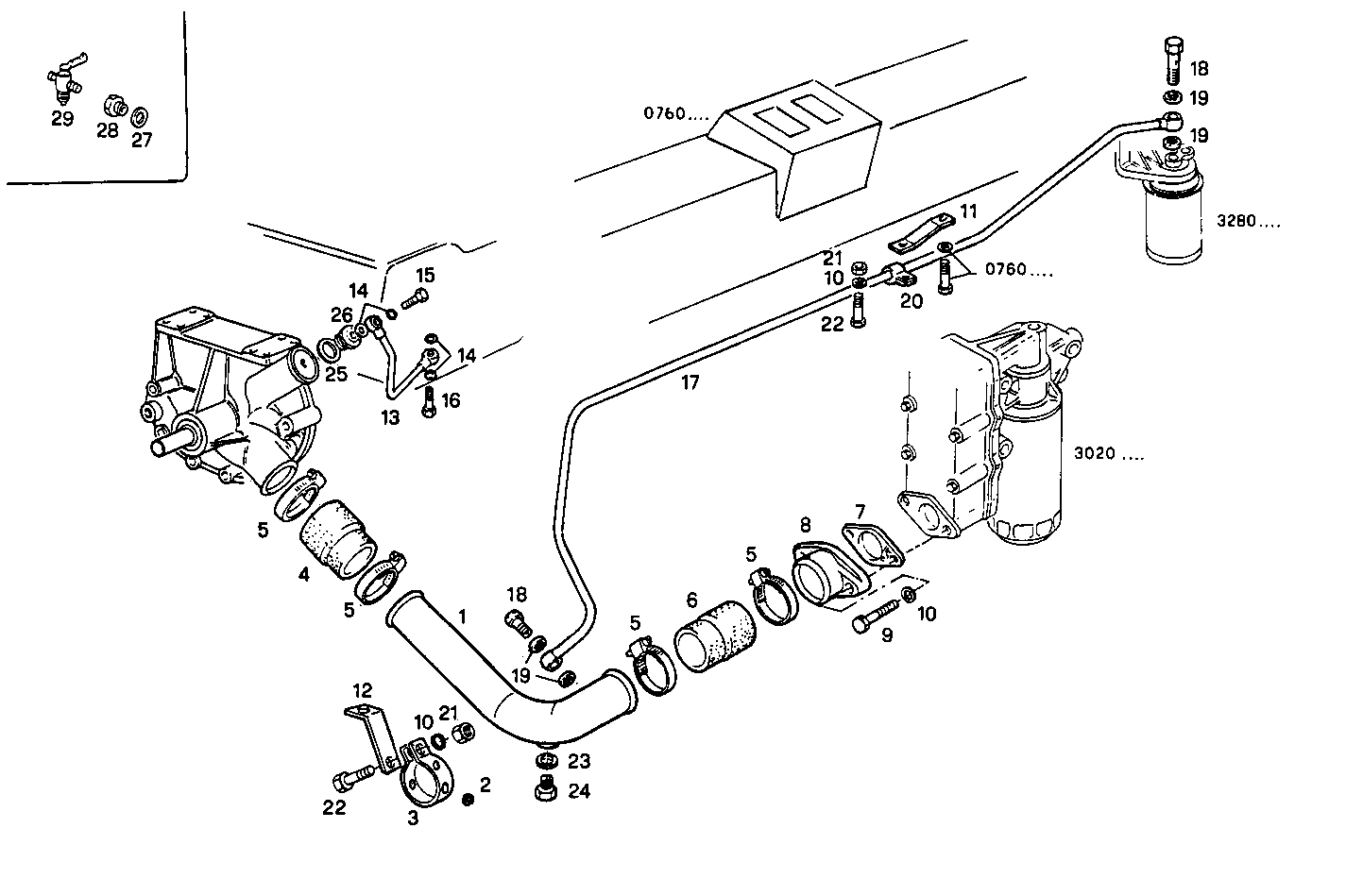

| 1 |
8105538
|
WATER PIPE
|
|
1
|
|
| 2 |
4565875
|
RUBBER PAD
|
|
3
|
|
| 3 |
4640545
|
CLIP
|
|
1
|
|
| 4 |
4951318
|
RUBBER SLEEVE
|
|
1
|
|
| 5 |
17764993
|
CLIP
|
|
4
|
|
| 6 |
61318022
|
WATER HOSE
|
|
1
|
|
| 7 |
98412396
|
GASKET
|
|
1
|
|
| 8 |
4936216
|
WATER PIPE
|
|
1
|
|
| 9 |
16045721
|
HEXAGON BOLT
|
|
2
|
|
| 10 |
17089471
|
SPRING WASHER
|
|
4
|
|
|
17089474 |
SPRING WASHER |
|
4 |
|
| 11 |
8100407
|
RETAINER
|
|
1
|
|
| 12 |
8100819
|
RETAINER
|
|
1
|
|
| 13 |
8012645
|
WATER PIPE
|
|
1
|
|
| 14 |
4858607
|
WASHER
|
|
4
|
|
| 15 |
4864082
|
BANJO BOLT
|
|
1
|
|
| 16 |
8009696
|
SCREW CONNECTOR
|
|
1
|
|
| 17 |
8013889
|
WATER PIPE
|
|
1
|
|
| 18 |
4864083
|
SCREW CONNECTOR
|
|
2
|
|
| 19 |
4858608
|
SEAL GASKET
|
|
4
|
|
| 20 |
10450190
|
PIPE CLIP
|
|
1
|
|
|
17316499 |
PIPE CLIP |
|
1 |
|
| 21 |
17037931
|
HEXAGON NUT
|
|
2
|
|
| 22 |
16605424
|
SCREW
|
|
2
|
|
| 23 |
4858609
|
WASHER
|
|
1
|
|
| 24 |
16992411
|
THREADED PLUG
|
|
1
|
|
|
16992415 |
THREADED PLUG |
|
1 |
|
| 25 |
10265160
|
SEAL GASKET
|
|
1
|
|
| 26 |
4934984
|
PLUG
|
|
1
|
|
| 27 |
4858608
|
SEAL GASKET
|
|
1
|
|
| 28 |
8103321
|
PIPE SOCKET
|
|
1
|
|
| 29 |
8113445
|
DRAIN COCK
|
|
1
|
|
