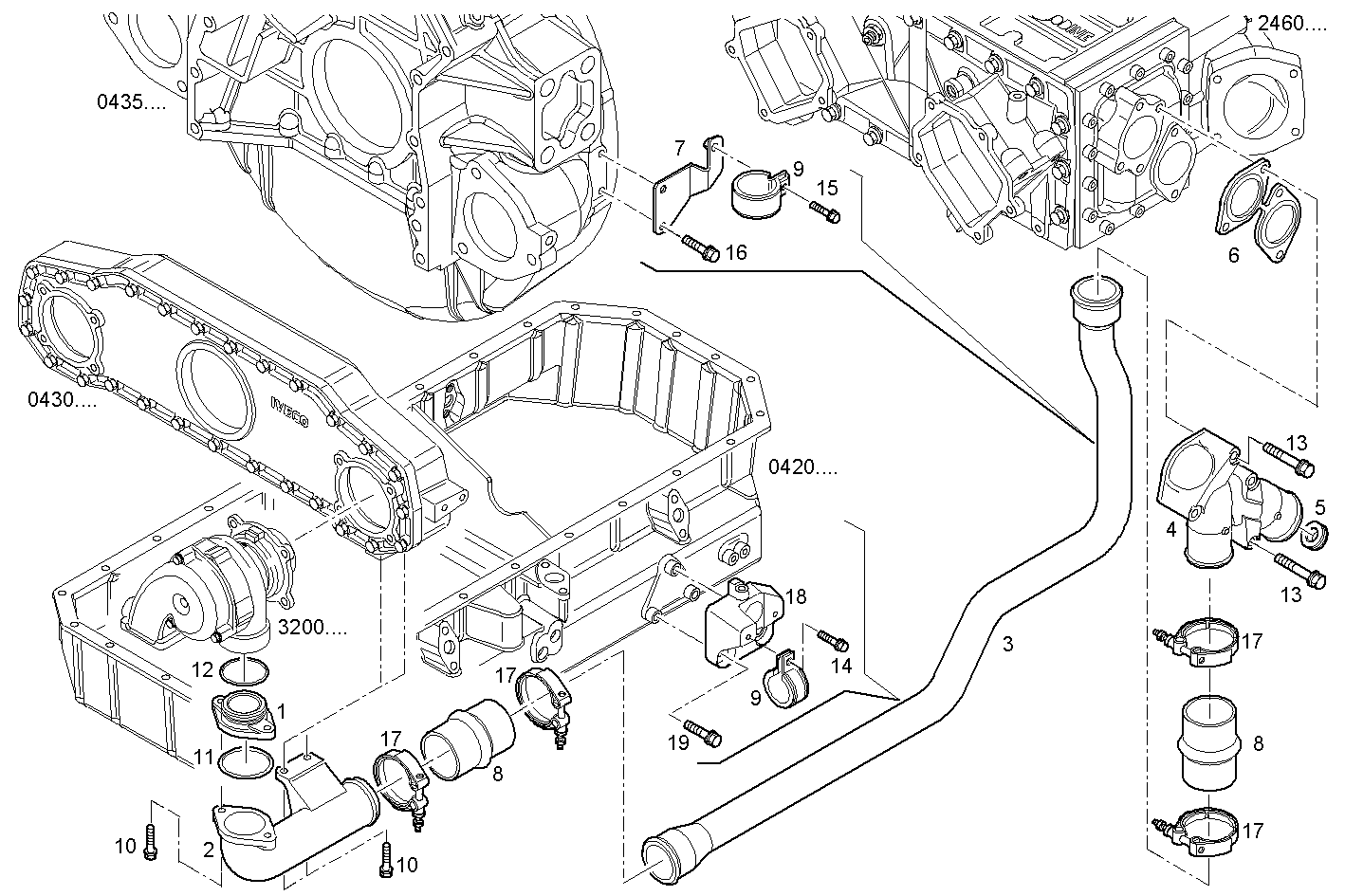

WATER LINES
Assembly ID: 3210.252
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504055352 | WATER PIPE | 1 | ||
| 2 | 504074028 | WATER PIPE | 1 | ||
| 3 | 504074156 | WATER PIPE | 1 | ||
| 4 | 504106439 | WATER PIPE | 1 | ||
| 5 | 504050297 | THREADED PLUG | 1 | ||
| 6 | 504074188 | FLAT ENGINE GASKET | 1 | ||
| 7 | 504074315 | SUPPORT | 1 | ||
| 8 | 93165331 | WATER HOSE | 2 | ||
| 9 | 504112724 | PIPE CLIP | 2 | ||
| 10 | 16673735 | HEXAGON BOLT | 4 | ||
| 11 | 17290581 | O-RING | 1 | ||
| 12 | 17296480 | O-RING | 1 | ||
| 13 | 16592925 | HEXAGON BOLT | 4 | ||
| 14 | 16673835 | HEXAGON BOLT | 4 | ||
| 15 | 16673635 | HEXAGON BOLT | 3 | ||
| 16 | 16597925 | HEXAGON BOLT | 2 | ||
| 17 | 41042200 | CLIP | 4 | ||
| 18 | 504074381 | SUPPORT | 1 | ||
| 19 | 16675835 | HEXAGON BOLT | 5 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVQE2883X*A200 | VECTOR 8 | view |
| PPVZ2883X*Q400 | POWER PACK | view |
| PPVZ2883X*Q440 | POWER PACK | view |
