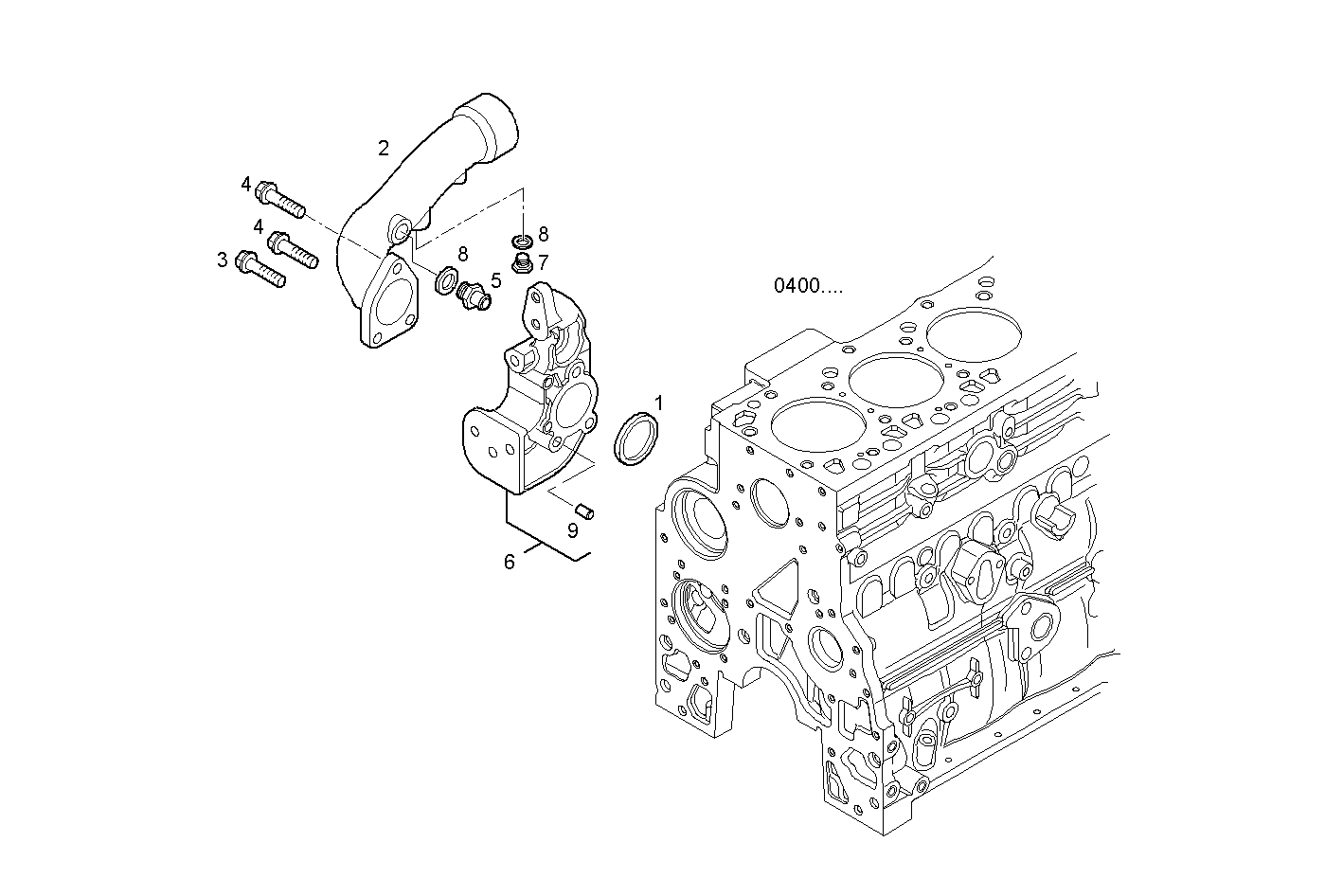

WATER LINES
Assembly ID: 3210.310
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504062710 | WASHER | 2 | ||
| 2 | 8042837 | WATER PIPE | 1 | ||
| 3 | 16592925 | HEXAGON BOLT | 1 | ||
| 4 | 16599224 | HEXAGON BOLT | 2 | ||
| 5 | 8024797 | PIPE SOCKET | 1 | ||
| 6 | 500387647 | GENERATOR SUPPORT | 1 | ||
| 7 | 16993011 | THREADED PLUG | 1 | ||
| 8 | 99434480 | SEAL GASKET | 2 | ||
| 9 | 4895576 | DOWEL PIN | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNAM15.30 | NEF 6 mechanic. | view |
