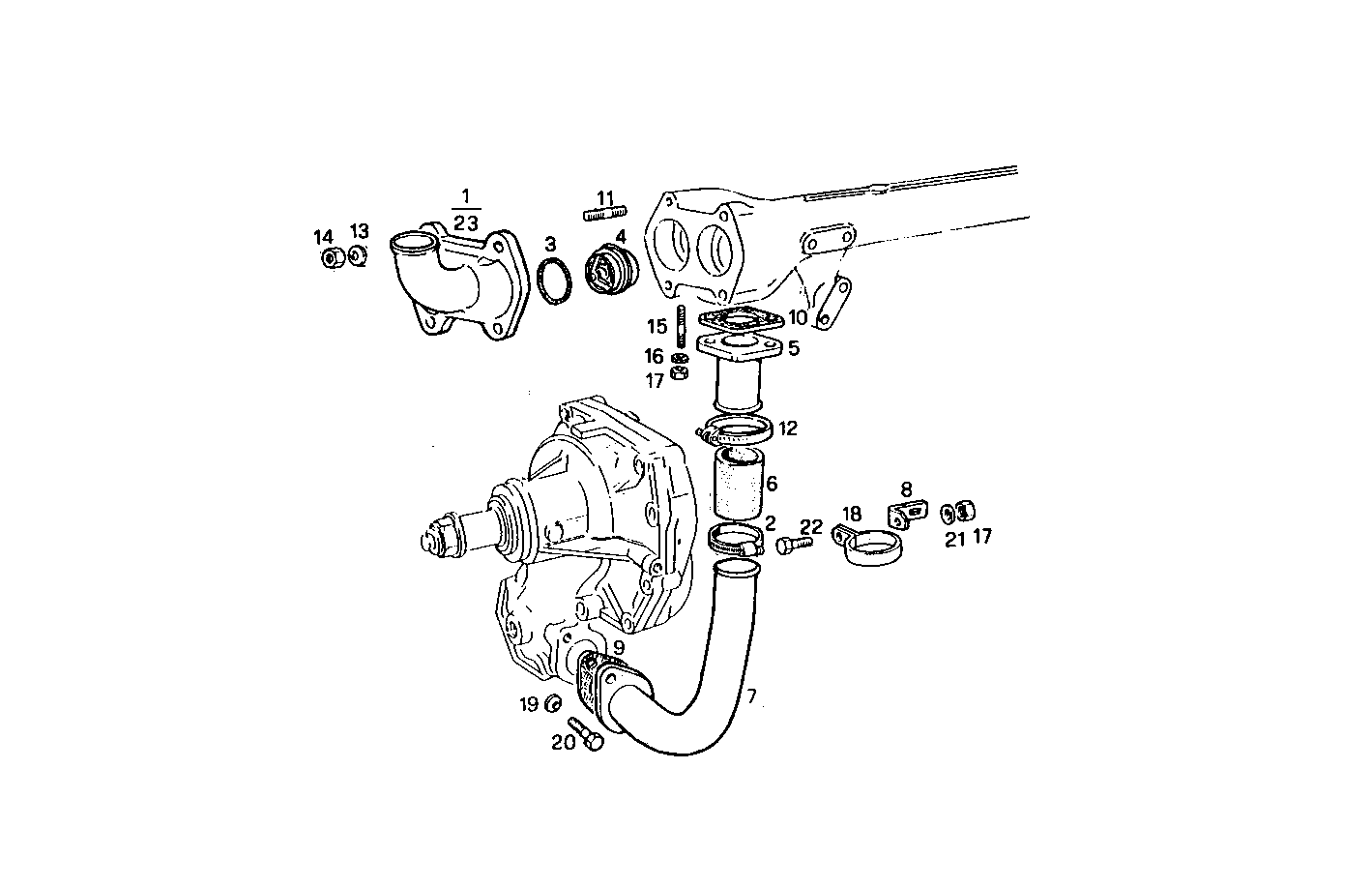

| 1 |
98418435
|
THERM.BODY COVER
|
|
1
|
|
| 2 |
17764792
|
HOSE CLIP
|
|
1
|
|
| 3 |
98465113
|
O-RING
|
|
2
|
|
| 4 |
98424854
|
THERMOSTAT
|
|
2
|
|
| 5 |
4765107
|
WATER PIPE
|
|
1
|
|
| 6 |
98447313
|
WATER HOSE
|
|
1
|
|
| 7 |
98450710
|
WATER PIPE
|
|
1
|
|
| 8 |
4765113
|
RETAINER
|
|
1
|
|
| 9 |
4864028
|
FLAT ENGINE GASKET
|
|
1
|
|
| 10 |
4864029
|
FLAT ENGINE GASKET
|
|
1
|
|
| 11 |
13546821
|
STUD
|
|
4
|
|
| 12 |
17764892
|
PIPE CLIP
|
|
1
|
|
| 13 |
17097124
|
WASHER
|
|
4
|
|
| 14 |
17038221
|
HEXAGON NUT
|
|
4
|
|
|
17038225 |
HEXAGON NUT |
|
4 |
|
| 15 |
12354521
|
STUD
|
|
2
|
|
| 16 |
17094914
|
WASHER
|
|
2
|
|
| 17 |
17037931
|
HEXAGON NUT
|
|
3
|
|
| 18 |
4628548
|
CLIP
|
|
1
|
|
| 19 |
17089574
|
WASHER
|
|
2
|
|
|
17089575 |
WASHER |
|
2 |
|
| 20 |
16605624
|
HEXAGON BOLT
|
|
2
|
|
|
16605635 |
HEXAGON BOLT |
|
2 |
|
| 21 |
10516674
|
WASHER
|
|
1
|
|
| 22 |
16043321
|
HEXAGON BOLT
|
|
1
|
|
| 23 |
4777115
|
THERM.BODY COVER
|
|
1
|
|
|
98418435 |
THERM.BODY COVER |
|
1 |
|
