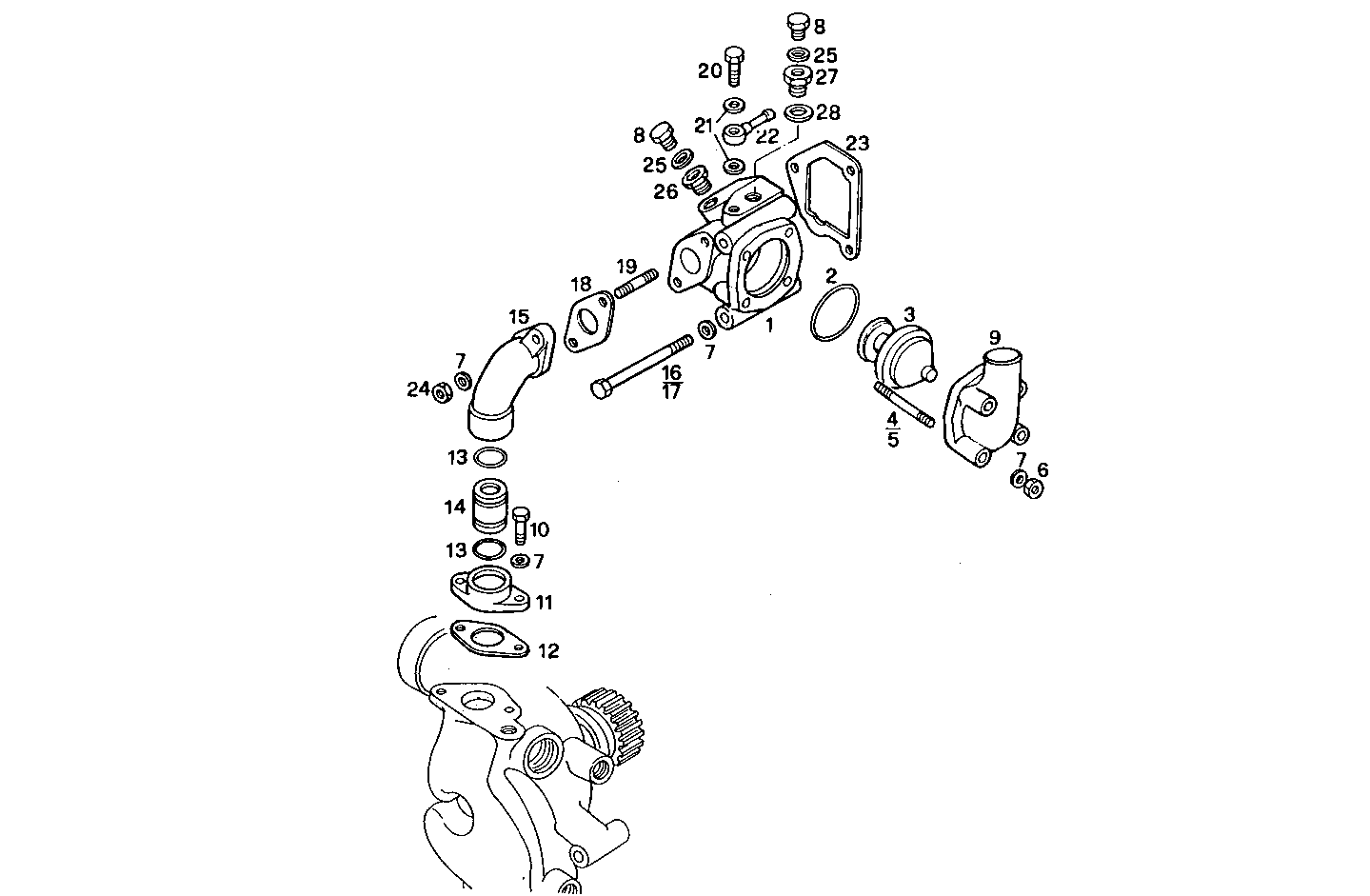

| 1 |
98429272
|
THERMOSTAT BODY
|
|
1
|
|
| 2 |
98465113
|
O-RING
|
|
1
|
|
| 3 |
98439348
|
THERMOSTAT
|
|
1
|
|
|
98439346 |
THERMOSTAT |
|
1 |
|
| 4 |
16729824
|
STUD
|
|
2
|
|
| 5 |
16730124
|
STUD
|
|
2
|
|
| 6 |
17037931
|
HEXAGON NUT
|
|
4
|
|
| 7 |
17094914
|
WASHER
|
|
11
|
|
| 8 |
16992311
|
LOCK PLUG
|
|
2
|
|
|
16992315 |
LOCK PLUG |
|
2 |
|
| 9 |
4853513
|
THERM.BODY COVER
|
|
1
|
|
| 10 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
| 11 |
4853510
|
PIPE SOCKET
|
|
1
|
|
| 12 |
4853511
|
FLAT ENGINE GASKET
|
|
1
|
|
| 13 |
98465117
|
O-RING
|
|
2
|
|
| 14 |
98415265
|
PIPE
|
|
1
|
|
| 15 |
4853502
|
WATER PIPE
|
|
1
|
|
| 16 |
16606924
|
SCREW
|
|
2
|
|
|
16045424 |
SCREW |
|
2 |
|
| 17 |
16605734
|
HEXAGON BOLT
|
|
1
|
|
| 18 |
4853509
|
FLAT ENGINE GASKET
|
|
1
|
|
| 19 |
16729424
|
STUD
|
|
2
|
|
| 20 |
4864080
|
SCREW CONNECTOR
|
|
1
|
|
| 21 |
4858606
|
GASKET
|
|
2
|
|
| 22 |
4671701
|
SWIVEL COUPLING
|
|
1
|
|
| 23 |
4853501
|
FLAT ENGINE GASKET
|
|
1
|
|
| 24 |
17152821
|
NUT
|
|
2
|
|
| 25 |
4858608
|
SEAL GASKET
|
|
2
|
|
| 26 |
4931480
|
PIPE SOCKET
|
|
1
|
|
| 27 |
4928330
|
PIPE SOCKET
|
|
1
|
|
| 28 |
4858609
|
WASHER
|
|
1
|
|
