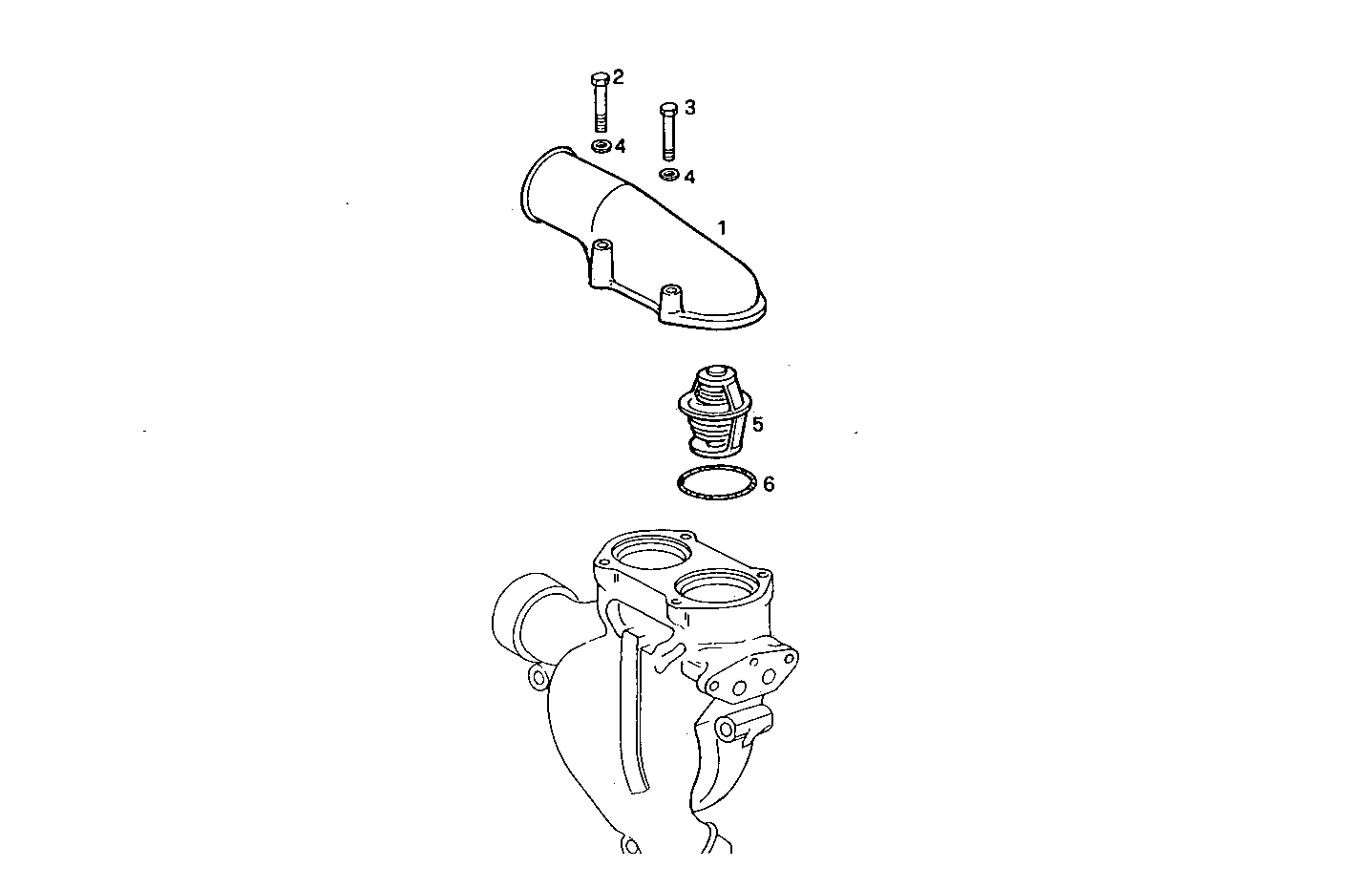

THERMOSTAT
Assembly ID: 3220.047
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61318956 | COVER | 1 | ||
| 2 | 15971421 | HEXAGON BOLT | 2 | ||
| 3 | 15888721 | HEXAGON BOLT | 2 | ||
| 4 | 17095104 | WASHER | 4 | ||
| 5 | 98424854 | THERMOSTAT | 2 | ||
| 6 | 98465113 | O-RING | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRi10.00 | 8460SRi10 | view |
| 8460SRi11.00 | 8460SRi11 | view |
| 8460SRi11.00A004 | 8460SRi11 | view |
| 8460SRi10.00A016 | 8460SRi10 | view |
| 8460SRE10.00 | 8460SRE10 | view |
| 8460SRE12.00 | 8460SRE12 | view |
| 8460SRi10.00A020 | 8460SRi10 | view |
| 8460SRE10.00A003 | 8460SRE10 | view |
