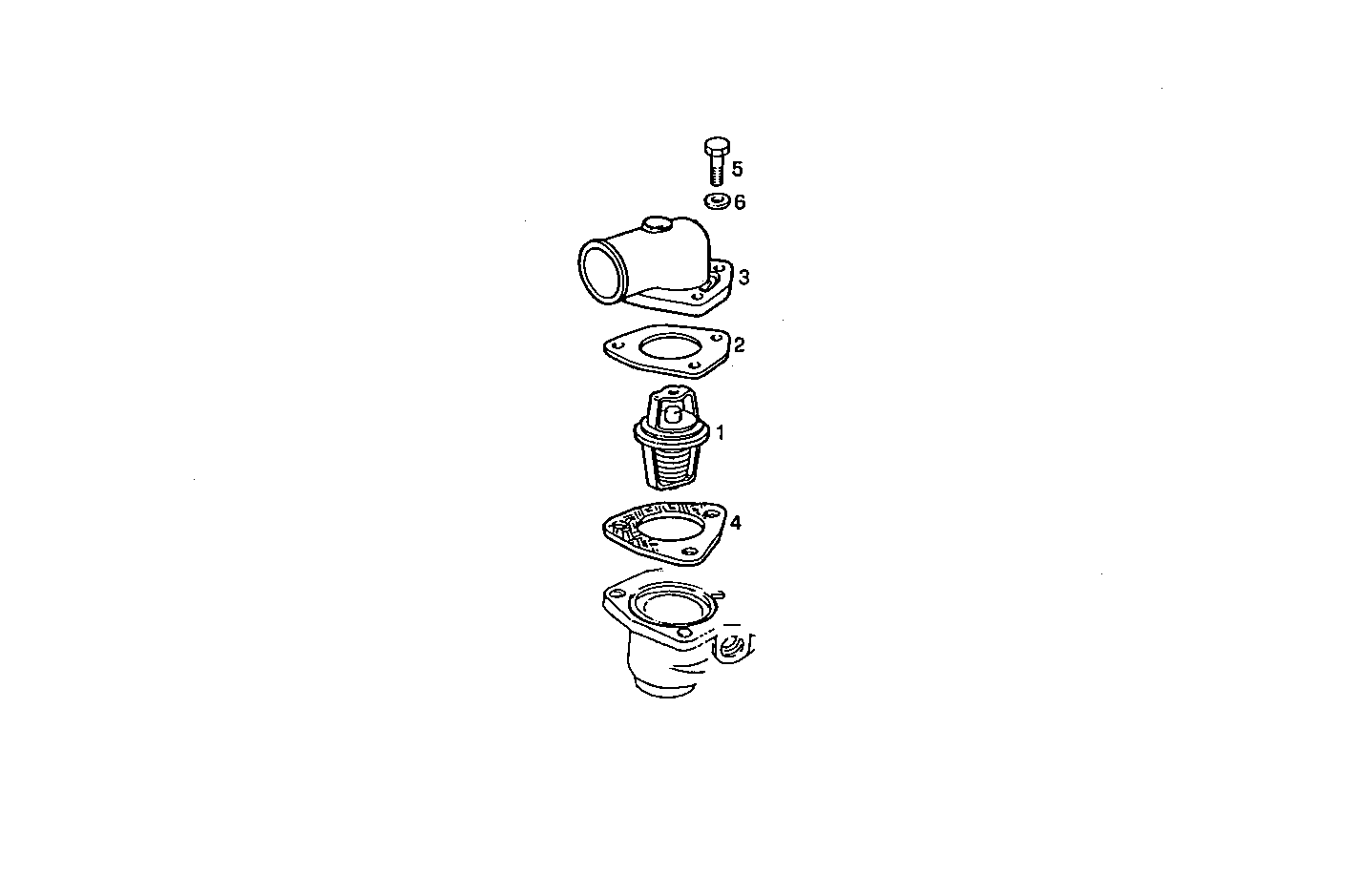

THERMOSTAT
Assembly ID: 3220.122
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98463637 | THERMOSTAT | 1 | ||
| 2 | 4752969 | SPACING BAR | 1 | ||
| 3 | 4605519 | EXHAUST ELBOW | 1 | ||
| 4 | 98482590 | GASKET | 1 | ||
| 5 | 16605624 | HEXAGON BOLT | 3 | ||
| 6 | 17089574 | WASHER | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8045E00.59A008 | 8045E00 | view |
| 8045E00.59A003 | 8045E00 | view |
| 8045E00.59A004 | 8045E00 | view |
| 8045E00.59A005 | 8045E00 | view |
| 8045E00.59A007 | 8045E00 | view |
