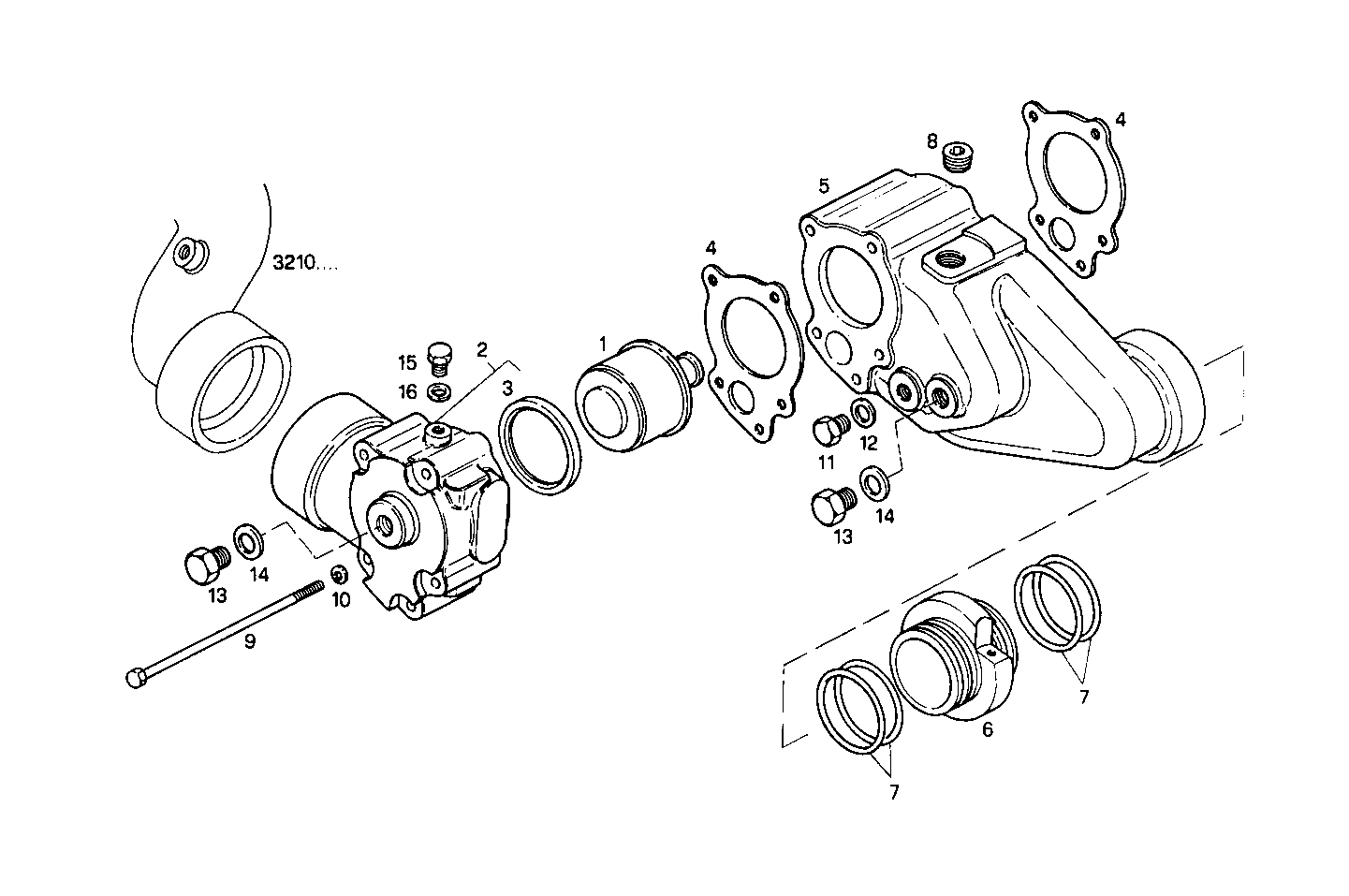

THERMOSTAT
Assembly ID: 3220.130
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8032239 | THERMOSTAT | 1 | ||
| 2 | 8030463 | THERM.BODY COVER | 1 | ||
| 3 | 98451661 | WASHER | 1 | ||
| 4 | 99443426 | FLAT ENGINE GASKET | 2 | ||
| 5 | 8029589 | THERMOSTAT BODY | 1 | ||
| 6 | 8028161 | SPACING BAR | 2 | ||
| 7 | 17290181 | O-RING | 8 | ||
| 8 | 99430692 | THREADED PLUG | 1 | ||
| 9 | 16607124 | HEXAGON BOLT | 5 | ||
| 10 | 17089474 | SPRING WASHER | 5 | ||
| 11 | 16992340 | THREADED PLUG | 1 | ||
| 12 | 4858608 | SEAL GASKET | 1 | ||
| 13 | 16992240 | THREADED PLUG | 2 | ||
| 14 | 4858609 | WASHER | 2 | ||
| 15 | 16992111 | THREADED PLUG | 1 | ||
| 16 | 4858606 | GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.10 | CURSOR 8 | view |
| C78ENTM30.10-C 12/03 | CURSOR 8 | view |
