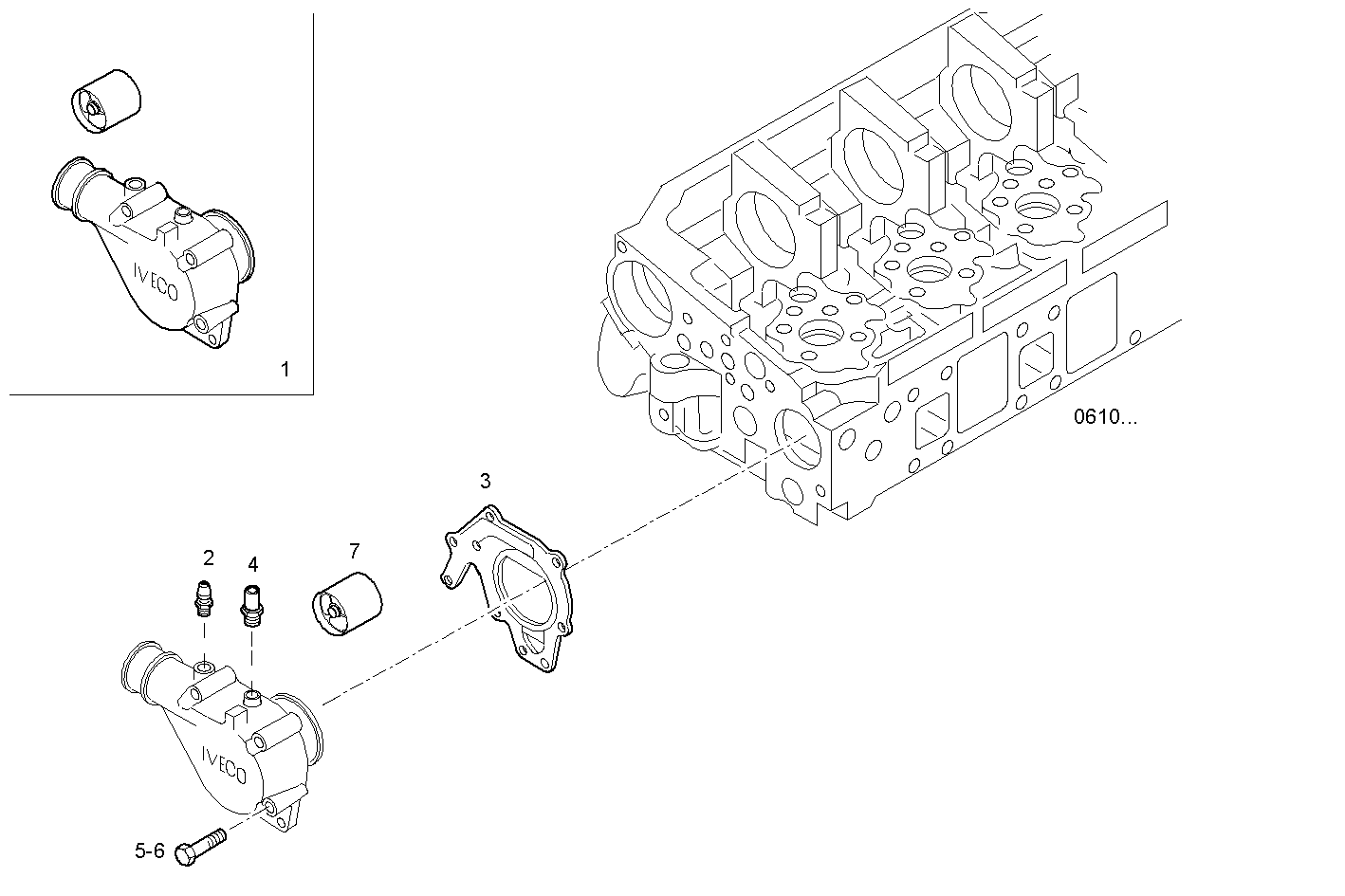

THERMOSTAT
Assembly ID: 3220.132
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504217885 | THERMOSTAT BODY | 1 | ||
| 2 | 500304562 | BREATHER PLUG | 1 | ||
| 3 | 500362150 | FLAT ENGINE GASKET | 1 | ||
| 4 | 98475757 | PIPE SOCKET | 1 | ||
| 5 | 16586825 | HEXAGON BOLT | 2 | ||
| 6 | 500383813 | HEXAGON BOLT | 5 | ||
| 7 | 504215955 | SUPPORT/HOUSING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684A*B002 | CURSOR 13 - TIER 2 | view |
| F3BE0684E*B003 | CURSOR 13 - TIER 2 | view |
| F3AE0684G*B001 | CURSOR 10 - TIER 2 | view |
| F3BE0684A*B001 | CURSOR 13 - TIER 2 | view |
| F3AE0684D*B001 | CURSOR 10 - TIER 2 | view |
| F3AE0684E*B002 | CURSOR 10 - TIER 2 | view |
| F3BE0684E*B001 | CURSOR 13 - TIER 2 | view |
| F3AE0684J*B901 | CURSOR 10 - TIER 2 | view |
| F3AE0684G*B003 | CURSOR 10 - TIER 2 | view |
| F3AE0684G*B004 | CURSOR 10 - TIER 2 | view |
| F3AE0684E*B006 | CURSOR 10 - TIER 2 | view |
