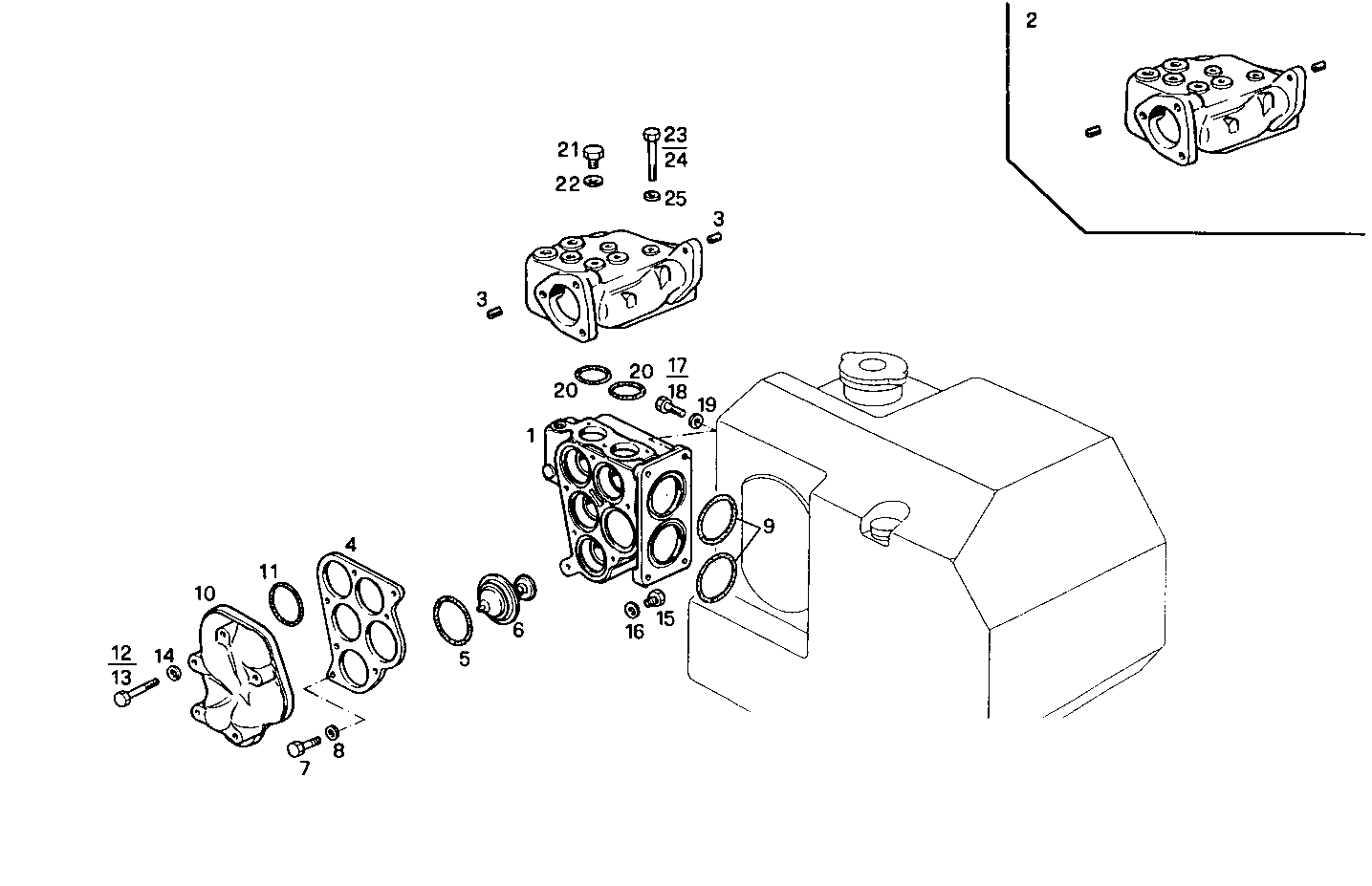

| 1 |
8020491
|
SUPPORT
|
|
1
|
|
| 2 |
8020495
|
WATER CONVEYOR
|
|
1
|
|
| 3 |
17873271
|
THREADED INSERT
|
|
5
|
|
| 4 |
8020493
|
SPACING BAR
|
|
1
|
|
| 5 |
98465113
|
O-RING
|
|
4
|
|
| 6 |
8038071
|
THERMOSTAT
|
|
4
|
|
| 7 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
| 8 |
17089474
|
SPRING WASHER
|
|
2
|
|
| 9 |
8026103
|
O-RING
|
|
4
|
|
| 10 |
8020494
|
COVER
|
|
1
|
|
| 11 |
8026095
|
O-RING
|
|
4
|
|
| 12 |
16608324
|
HEXAGON BOLT
|
|
3
|
|
|
16608325 |
HEXAGON BOLT |
|
3 |
|
| 13 |
16608424
|
SCREW
|
|
2
|
|
|
16608421 |
SCREW |
|
2 |
|
| 14 |
17095004
|
WASHER
|
|
5
|
|
| 15 |
4584394
|
PLUG
|
|
1
|
|
| 16 |
11271460
|
GASKET
|
|
1
|
|
| 17 |
16607824
|
HEXAGON BOLT
|
|
3
|
|
| 18 |
16607624
|
SCREW
|
|
1
|
|
| 19 |
17090174
|
SPRING WASHER
|
|
4
|
|
| 20 |
8026100
|
O-RING
|
|
2
|
|
| 21 |
16992440
|
THREADED PLUG
|
|
2
|
|
| 22 |
4858609
|
WASHER
|
|
2
|
|
| 23 |
16606824
|
HEXAGON BOLT
|
|
2
|
|
| 24 |
16605734
|
HEXAGON BOLT
|
|
1
|
|
| 25 |
17094914
|
WASHER
|
|
3
|
|
