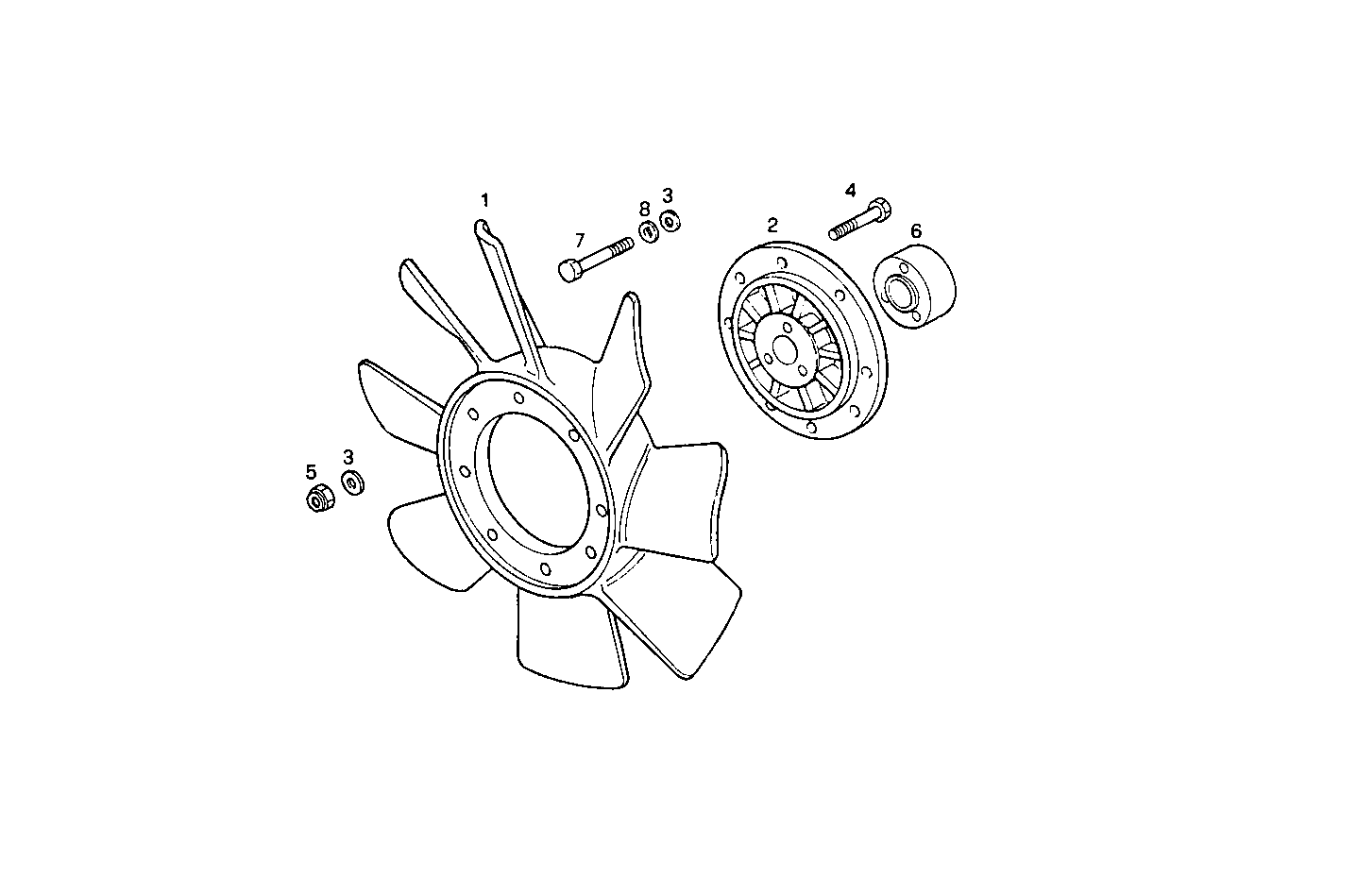

FAN
Assembly ID: 3230.020
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8108067 | FAN | 1 | ||
| 2 | 4677344 | SPACING BAR | 1 | ||
| 3 | 17089474 | SPRING WASHER | 11 | ||
| 4 | 16605824 | HEXAGON BOLT | 8 | ||
| 5 | 17152821 | NUT | 8 | ||
| 6 | 8105170 | SPACING BAR | 1 | ||
| 7 | 16606424 | HEXAGON BOLT | 3 | ||
| 8 | 17094904 | WASHER | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8045E00.09A002 | 8045E00 | view |
| 8045SE00.09A002 | 8045SE00 | view |
