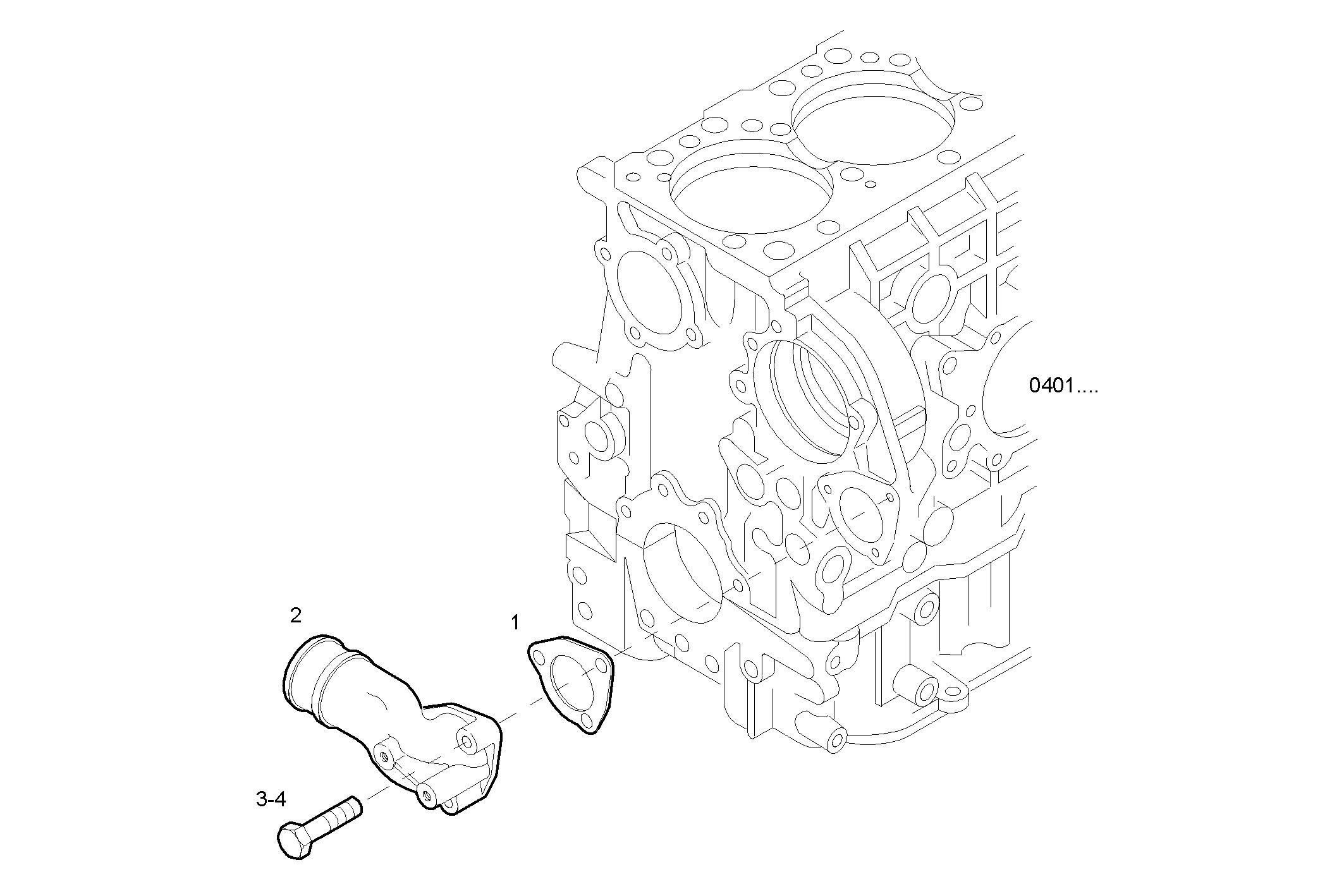

WATER PIPE
Assembly ID: 3230.024
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99466940 | FLAT ENGINE GASKET | 1 | ||
| 2 | 500373280 | WATER PIPE | 1 | ||
| 3 | 16674434 | HEXAGON BOLT | 2 | ||
| 4 | 16674934 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684A*B002 | CURSOR 13 - TIER 2 | view |
| F3BE0684E*B003 | CURSOR 13 - TIER 2 | view |
| F3BE0684J*E902 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A005 | CURSOR 13 - TIER 3 | view |
| F3CE0684A*E001 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684N*E904 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E903 | CURSOR 13 - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684N*E906 | CURSOR 13 - TIER 3 | view |
