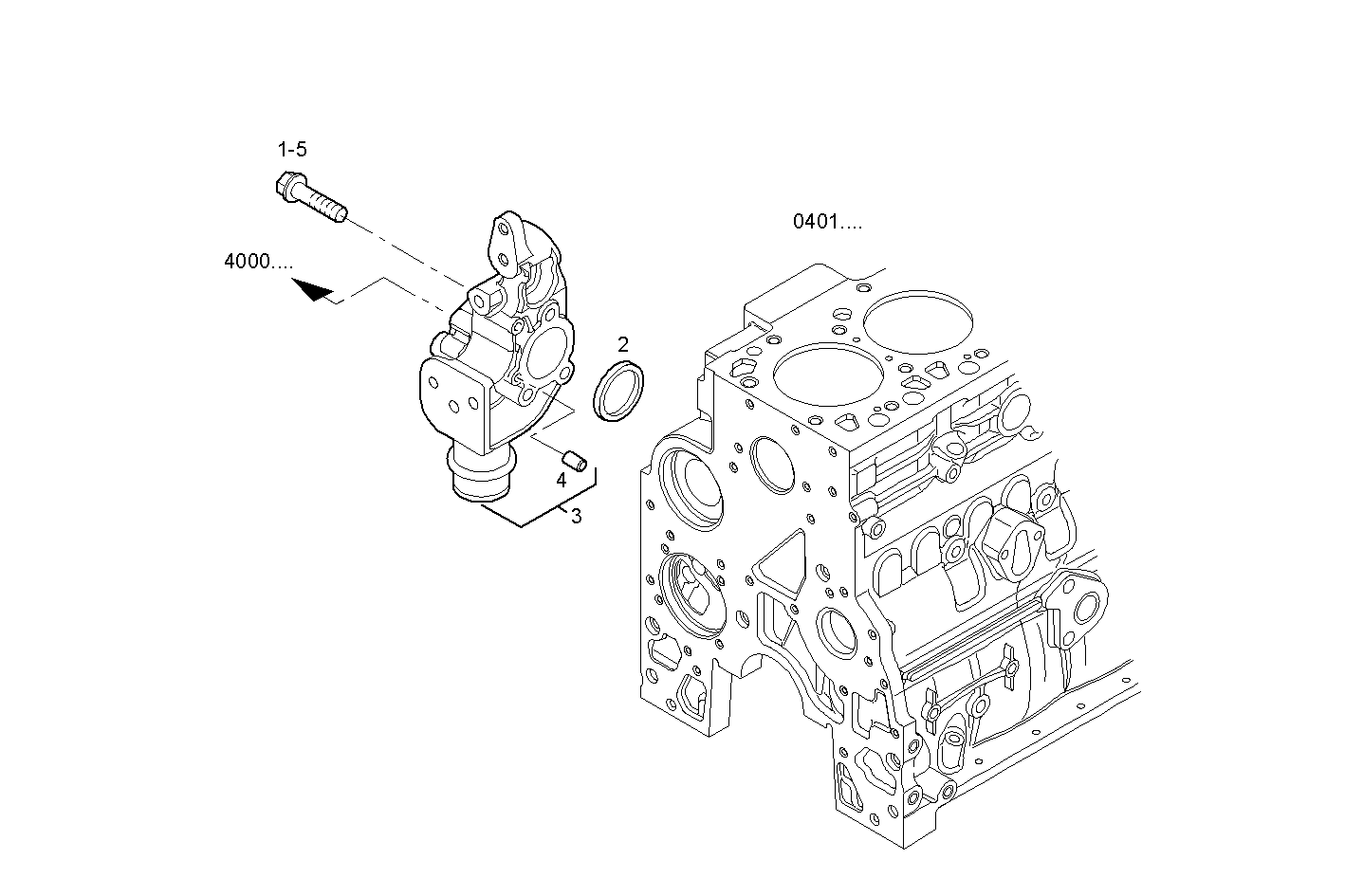

WATER PIPE

Assembly ID: 3230.030

WATER PIPE

Parts

# Part number Description Note Quantity
1 4895292 HEXAGON BOLT 1
2 504062710 WASHER 1
3 4892347 GENERATOR SUPPORT 1
4 4895576 DOWEL PIN 2
5 16599125 HEXAGON BOLT 2

Applies to engines

Engine Family
F4GE0684G*D601 NEF 6 mechanic. - TIER 2 view
GENEF180E.R980 GENEF 6 electron. - TIER 2 view
N60ENTE66.00 NEF 6 electron. - TIER 2 view
NEF60TE1.A001 NEF 6 electron. - TIER 2 view
N40ENTE20.00 NEF 4 electron. - TIER 2 view
F4AE0685A*F101 NEF 6 electron. - TIER 2 view
N60ENTE60.00 NEF 6 electron. - TIER 2 view
NEF6TAGE2.A002 NEF 6 electron. - TIER 2 view
N60ENTE20.00 NEF 6 electron. - TIER 2 view
NEF60TE2.00 NEF 6 electron. - TIER 2 view
GENEF200E.R980 GENEF 6 electron. - TIER 2 view
NEF60TE2.A559 NEF 6 electron. - TIER 2 view
NEF60TE2.A001 NEF 6 electron. - TIER 2 view
N40ENTU20.00 NEF 4 electron. - TIER 2 view
N60ENTU20.00 NEF 6 electron. - TIER 2 view
F4AE0684C*D103 NEF 6 electron. - TIER 2 view
F4GE0454A*D650 NEF 4 mechanic. - TIER 2 view
N67MNTE21.00A001 NEF 6 mechanic. - TIER 2 view
N60ENTD20.00 NEF 6 electron. - TIER 2 view
F4AE0484B*D101 NEF 4 electron. - TIER 2 view
F4AE0484B*D102 NEF 4 electron. - TIER 2 view
F4AE0684C*D104 NEF 6 electron. - TIER 2 view
GENEF200E.R990 GENEF 6 electron. - TIER 2 view
GENEF200E.A71M GENEF 6 electron. - TIER 2 view
GENEF200E.A551 GENEF 6 electron. - TIER 2 view
GENEF200E.A72M GENEF 6 electron. - TIER 2 view
GENEF200E.A552 GENEF 6 electron. - TIER 2 view
NEF60TE2.A558 NEF 6 electron. - TIER 2 view
N67MNTE60.00 NEF 6 mechanic. - TIER 2 view
F4GE9454C*J606 NEF 4 mechanic. - TIER 3 view
N45MNTX20.00A011 NEF 4 mechanic. - TIER 3 view
NEF67TM2A.A550 NEF 6 mechanic. - 2002/88/CE view
NEF60TE2.A002 NEF 6 electron. - TIER 2 view
NEF60TE2.A003 NEF 6 electron. - TIER 2 view
NEF60TE2.A004 NEF 6 electron. - TIER 2 view
F4GE0684C*D608 NEF 6 mechanic. - TIER 2 view
N67MNTE20.00A003 NEF 6 mechanic. - TIER 2 view
F4GE0685B*F601 NEF 6 mechanic. - TIER 2 view
F4GE0484C*D602 NEF 4 mechanic. - TIER 2 view
N45MNTE20.00A001 NEF 4 mechanic. - TIER 2 view
GENEF160M.R980 GENEF 6 mechanic. - TIER 2 view
N60ENTD20.00A800 NEF 6 electron. - TIER 2 view
N60ENTD20.00A801 NEF 6 electron. - TIER 2 view
NEF67TM3.A001 NEF 6 mechanic. - TIER 2 view
NEF67TM3.A002 NEF 6 mechanic. - TIER 2 view
F4AE0484B*D103 NEF 4 electron. - TIER 2 view
N40ENTD20.00 NEF 4 electron. - TIER 2 view
N40ENTD20.00A800 NEF 4 electron. - TIER 2 view
N40ENTD20.00A801 NEF 4 electron. - TIER 2 view
NEF60TE1.A002 NEF 6 electron. - TIER 2 view
N67MNTE61.00 NEF 6 mechanic. - TIER 2 view
F4AE0481D*C153 NEF 4 electron. - EURO 3 view
N40ENTC24.00A011 NEF 4 electron. - EURO 3 view
F4AE0481C*C103 NEF 4 electron. - EURO 3 view
N40ENTC21.00A015 NEF 4 electron. - EURO 3 view
NEF67TM2.A002 NEF 6 mechanic. - TIER 2 view
GENEF130M.R980 GENEF 6 mechanic. - TIER 2 view
F4AE0682C*C119 NEF 6 electron. - EURO 3 view
F4AE0681B*C100 NEF 6 electron. - EURO 3 view
NEF67TM2.A001 NEF 6 mechanic. - TIER 2 view
NEF60TE2.A005 NEF 6 electron. - TIER 2 view
F4AE0481A*C103 NEF 4 electron. - EURO 3 view
F4AE0481A*C106 NEF 4 electron. - EURO 3 view
F4AE0481C*C102 NEF 4 electron. - EURO 3 view
NEF67TM3.A559 NEF 6 mechanic. - TIER 2 view
GENEF200E.A002 GENEF 6 electron. - TIER 2 view
GENEF200E.A001 GENEF 6 electron. - TIER 2 view
GENEF180E.A002 GENEF 6 electron. - TIER 2 view
GENEF180E.A001 GENEF 6 electron. - TIER 2 view
GENEF160M.A002 GENEF 6 mechanic. - TIER 2 view
GENEF160M.A71M GENEF 6 mechanic. - TIER 2 view
GENEF160M.A001 GENEF 6 mechanic. - TIER 2 view
N67MNTD20.00A007 NEF 6 mechanic. - TIER 2 view
F4GE0454A*D603 NEF 4 mechanic. - TIER 2 view
F4AE0481A*C118 NEF 4 electron. - EURO 3 view
F4HE9684P*J101 NEF 6 electron. - TIER 3 view
N67ENTX20.00 NEF 6 electron. - TIER 3 view
F4BE0647A*B100 NEF 6 CNG view
N67ENTX20.00A800 NEF 6 electron. - TIER 3 view
F4HE9685A*J100 NEF 6 electron. - TIER 3 view
N67ENTX67.00 NEF 6 electron. - TIER 3 view
N67ENTX68.00 NEF 6 electron. - TIER 3 view
N40ENTD20.00A810 NEF 4 electron. - TIER 2 view
F4GE9685A*J600 NEF 6 mechanic. - TIER 3 view
N67MNTX68.00 NEF 6 mechanic. - TIER 3 view
F4AE3682F*P100 NEF 6 electron. - EURO 4 view
F4AE3682F*P101 NEF 6 electron. - EURO 4 view
F4AE3682E*P100 NEF 6 electron. - EURO 4 view
F4AE3682E*P101 NEF 6 electron. - EURO 4 view
F4AE3481D*P103 NEF 4 electron. - EURO 4 view
NEF67TM3.A558 NEF 6 mechanic. - TIER 2 view
NEF67TE2.X001 NEF 6 electron. - TIER 3 view
F4GE0685D*F601 NEF 6 mechanic. - TIER 2 view
N67MNTE61.01 NEF 6 mechanic. - TIER 2 view
NEF67TM2.1A001 NEF 6 mechanic. - TIER 2 view
NEF67TM2.1A002 NEF 6 mechanic. - TIER 2 view
NEF67TM2.1A558 NEF 6 mechanic. - TIER 2 view
GENEF130M.1A001 GENEF 6 mechanic. - TIER 2 view
GENEF130M.1A002 GENEF 6 mechanic. - TIER 2 view
GENEF130M.1A552 GENEF 6 mechanic. - TIER 2 view
GENEF130M.1A71M GENEF 6 mechanic. - TIER 2 view
GENEF130M.1A72M GENEF 6 mechanic. - TIER 2 view
GENEF130M.1R980 GENEF 6 mechanic. - TIER 2 view
F4AE3681D*P110 NEF 6 electron. - EURO 4 view
F4HE9484A*J101 NEF 4 electron. - TIER 3 view
N45ENTX20.00 NEF 4 electron. - TIER 3 view
F4GE9684D*J601 NEF 6 mechanic. - TIER 3 view
N67MNTX21.00A001 NEF 6 mechanic. - TIER 3 view
N45ENTX20.00A003 NEF 4 electron. - TIER 3 view
N45MSTX20.50A010 NEF 4 mechanic. - TIER 3 view
NEF67TE1X.A001 NEF 6 electron. - TIER 3 view
NEF67TE2X.R981 NEF 6 electron. - TIER 3 view
NEF67TE1X.R981 NEF 6 electron. - TIER 3 view
NEF67TM1X.A001 NEF 6 mechanic. - TIER 3 view
NEF67TM1X.R981 NEF 6 mechanic. - TIER 3 view
N67ENTX20.00A810 NEF 6 electron. - TIER 3 view
F4GE9484F*J605 NEF 4 mechanic. - TIER 3 view
F4GE0685B*F650 NEF 6 mechanic. - 2002/88/CE view
N67MNTA65.00 NEF 6 mechanic. - 2002/88/CE view
GENEF160MA.R980 GENEF 6 mechanic. - 2002/88/CE view
F4AE3682A*R105 NEF 6 electron. - EURO 4 view
F4AE3682E*R104 NEF 6 electron. - EURO 4 view
F4AE3682E*R105 NEF 6 electron. - EURO 4 view
F4AE3682F*R103 NEF 6 electron. - EURO 4 view
F4AE3682F*R104 NEF 6 electron. - EURO 4 view
F4HE0685A*F100 NEF 6 electron. - 2002/88/CE view
N67ENTA65.00 NEF 6 electron. - 2002/88/CE view
GENEF200EA.R980 GENEF 6 electron. - 2002/88/CE view
NEF67TM3A.A001 NEF 6 mechanic. - 2002/88/CE view
NEF67TE2A.A001 NEF 6 electron. - 2002/88/CE view
F4GE0685D*F650 NEF 6 mechanic. - 2002/88/CE view
N67MNTA66.00 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A001 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A002 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A003 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A004 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A558 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A509 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.S500 NEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A001 GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A002 GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A501 GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A552 GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A71M GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A72M GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.R980 GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A71S GENEF 6 mechanic. - 2002/88/CE view
GENEF200EA.A001 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A002 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A551 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A552 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A71M GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A72M GENEF 6 electron. - 2002/88/CE view
GENEF200EA.R990 GENEF 6 electron. - 2002/88/CE view
N67ENTA20.00A800 NEF 6 electron. - TIER 3 view
N67ENTA20.00A810 NEF 6 electron. - TIER 3 view
PUN67ENTX20.00A100 NEF 6 electron. - TIER 3 view
NEF67TE2A.A003 NEF 6 electron. - 2002/88/CE view
F4AE0484B*D100 NEF 4 electron. - TIER 2 view
N40ENTD20.00A802 NEF 4 electron. - TIER 2 view
F4GE0454A*D613 NEF 4 mechanic. - TIER 2 view
F4AE0481C*C111 NEF 4 electron. - EURO 3 view
N40ENTC21.00L018 NEF 4 electron. - EURO 3 view
N40ENTC21.00L019 NEF 4 electron. - EURO 3 view
F4AE3681A*R100 NEF 6 electron. - EURO 4 view
N60ENT429.00A001 NEF 6 electron. - EURO 4 view
N60ENT427.00A005 NEF 6 electron. - EURO 4 view
N60ENT427.00A003 NEF 6 electron. - EURO 4 view
F4GE0685D*F651 NEF 6 mechanic. - 2002/88/CE view
GENEF160M.A552 GENEF 6 mechanic. - TIER 2 view
GENEF160M.A72M GENEF 6 mechanic. - TIER 2 view
NEF67TM3A.A005 NEF 6 mechanic. - 2002/88/CE view
NEF67TM3A.A550 NEF 6 mechanic. - 2002/88/CE view
F4AE0684C*D102 NEF 6 electron. - TIER 2 view
N60ENTD20.00A802 NEF 6 electron. - TIER 2 view
F4HE0685A*F101 NEF 6 electron. - 2002/88/CE view
F4AE3681D*R107 NEF 6 electron. - EURO 4 view
F4GE9454C*J605 NEF 4 mechanic. - TIER 3 view
F4BE0641A*G105 NEF 6 CNG view
N60MNTG26.00A004 NEF 6 CNG view
NEF67TE1X.A008 NEF 6 electron. - TIER 3 view
NEF67TE2X.A008 NEF 6 electron. - TIER 3 view
NEF67TM1X.A008 NEF 6 mechanic. - TIER 3 view
F4AE3681B*R107 NEF 6 electron. - EURO 4 view
NEF67TE2X.A570 NEF 6 electron. - TIER 3 view
NEF67TE2A.A002 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A005 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A006 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A558 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A559 NEF 6 electron. - 2002/88/CE view
NEF67TM3A.A002 NEF 6 mechanic. - 2002/88/CE view
NEF67TM3A.A003 NEF 6 mechanic. - 2002/88/CE view
NEF67TM3A.A004 NEF 6 mechanic. - 2002/88/CE view
NEF67TM3A.A558 NEF 6 mechanic. - 2002/88/CE view
NEF67TM3A.A509 NEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A001 GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A002 GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A71M GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A552 GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A72M GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A501 GENEF 6 mechanic. - 2002/88/CE view
F4GE0454A*D615 NEF 4 mechanic. - TIER 2 view
F4AE3682E*S106 NEF 6 electron. - EURO 5 view
N40ENT526.00A001 NEF 4 electron. - EURO 5 view
N40ENTC21.00A014 NEF 4 electron. - EURO 3 view
N40ENTC21.00A020 NEF 4 electron. - EURO 3 view
N40ENTC21.00A021 NEF 4 electron. - EURO 3 view
N40ENT426.00A012 NEF 4 electron. - EURO 4 view
F4AE0681A*C157 NEF 6 electron. - EURO 3 view
N60ENTC23.00A003 NEF 6 electron. - EURO 3 view
F4AE3481D*R103 NEF 4 electron. - EURO 4 view
N40ENT426.00A014 NEF 4 electron. - EURO 4 view
N40ENT526.00A005 NEF 4 electron. - EURO 5 view
N40ENTC21.00A022 NEF 4 electron. - EURO 3 view
NEF67TM1X.A550 NEF 6 mechanic. - TIER 3 view
N60MNTG26.00A003 NEF 6 CNG view
F4GE9454C*J609 NEF 4 mechanic. - TIER 3 view
N67MNTX20.00A010 NEF 6 mechanic. - TIER 3 view
