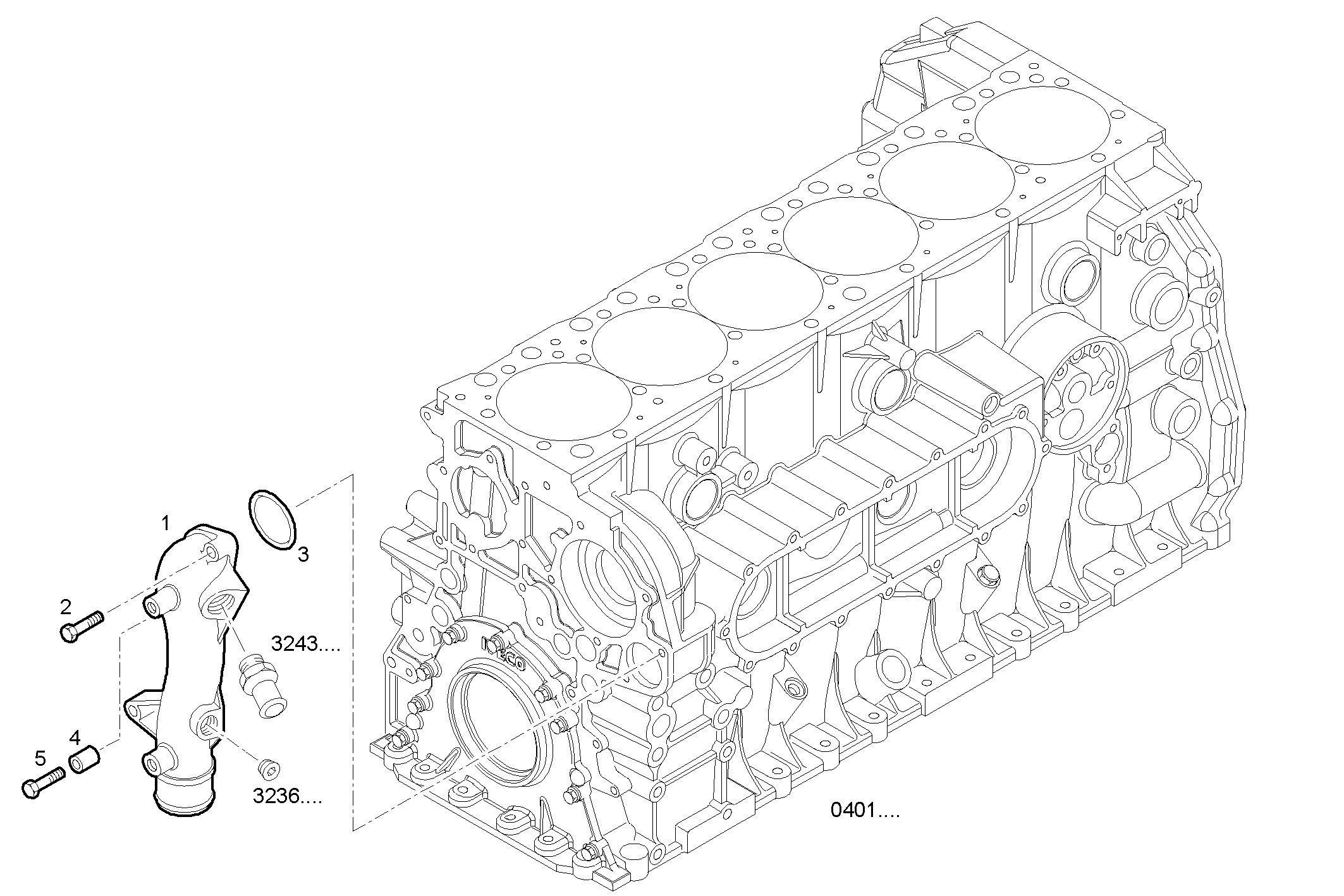

WATER PIPE

Assembly ID: 3230.032

WATER PIPE

Parts

# Part number Description Note Quantity
1 504210061 WATER PIPE 1
2 16586925 HEXAGON BOLT 1
3 17290081 O-RING 1
4 504253853 SPACING BAR 1
5 16592525 HEXAGON BOLT 1

Applies to engines

Engine Family
C87ENTX20.00A002 CURSOR 9 - TIER 3 view
F2CE9684C*E002 CURSOR 9 - TIER 3 view
F2CE9684E*E002 CURSOR 9 - TIER 3 view
F2CE9684L*E005 CURSOR 9 - TIER 3 view
F2CE9687A*E001 CURSOR 9 - TIER 3 view
F2CE9687B*E001 CURSOR 9 - TIER 3 view
F2CE9687C*E001 CURSOR 9 - TIER 3 view
C87ENTX20.00 CURSOR 9 - TIER 3 view
C87ENTX20.00A800 CURSOR 9 - TIER 3 view
C87ENTX20.00A801 CURSOR 9 - TIER 3 view
C87ENTX20.00A802 CURSOR 9 - TIER 3 view
F2CE9685A*E001 CURSOR 9 - 2002/88/CE - TIER 3 view
C87ENTX60.00 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.R991 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A001 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A002 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR270ED.R990 GECURSOR 9 - 2002/88/CE TIER 3 view
C87ENTX20.00A803 CURSOR 9 - TIER 3 view
F2CE9684A*E009 CURSOR 9 - TIER 3 view
F2CE9684M*E006 CURSOR 9 - TIER 3 view
F2CE9684N*E005 CURSOR 9 - TIER 3 view
F2CE9684P*E006 CURSOR 9 - TIER 3 view
CURSOR87TE1D.S550 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A559 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR250ED.R990 GECURSOR 9 - TIER 3 view
GECURSOR250ED.A71M GECURSOR 9 - TIER 3 view
GECURSOR250ED.A551 GECURSOR 9 - TIER 3 view
F2CE9684P*E008 CURSOR 9 - TIER 3 view
CURSOR87TE1D.A008 CURSOR 9 - 2002/88/CE - TIER 3 view
