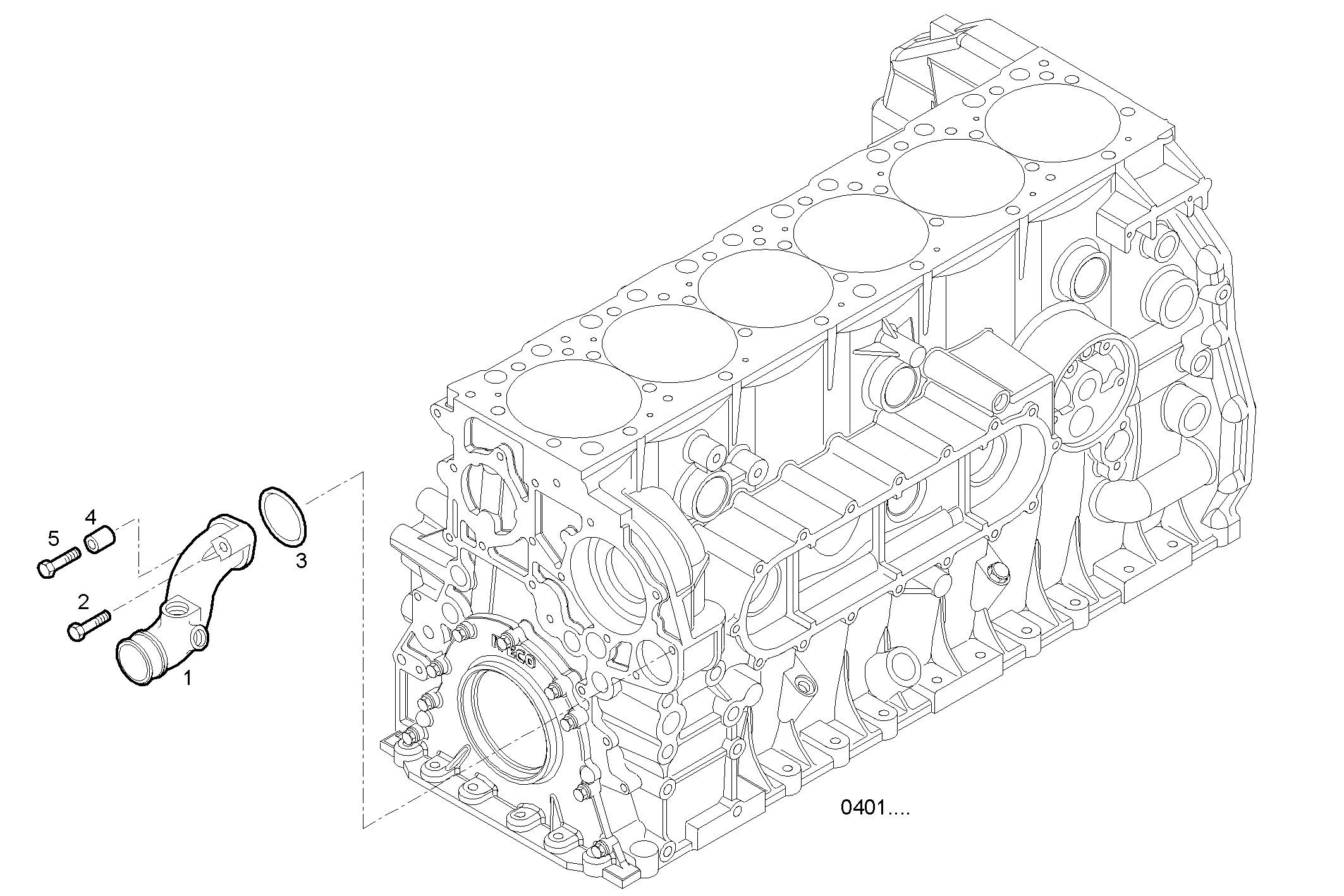

WATER PIPE
Assembly ID: 3230.033
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504206985 | WATER PIPE | 1 | ||
| 2 | 16586925 | HEXAGON BOLT | 1 | ||
| 3 | 17290081 | O-RING | 1 | ||
| 4 | 504253853 | SPACING BAR | 1 | ||
| 5 | 16592525 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE9684A*E004 | CURSOR 9 - TIER 3 | view |
| F2CE9684B*E001 | CURSOR 9 - TIER 3 | view |
| F2CE9684C*E001 | CURSOR 9 - TIER 3 | view |
| F2CE9684D*E001 | CURSOR 9 - TIER 3 | view |
| F2CE9684H*E003 | CURSOR 9 - TIER 3 | view |
| F2CE9684M*E008 | CURSOR 9 - TIER 3 | view |
| F2CE9684H*E010 | CURSOR 9 - TIER 3 | view |
| F2CE9684M*E007 | CURSOR 9 - TIER 3 | view |
| F2CE9684P*E007 | CURSOR 9 - TIER 3 | view |
