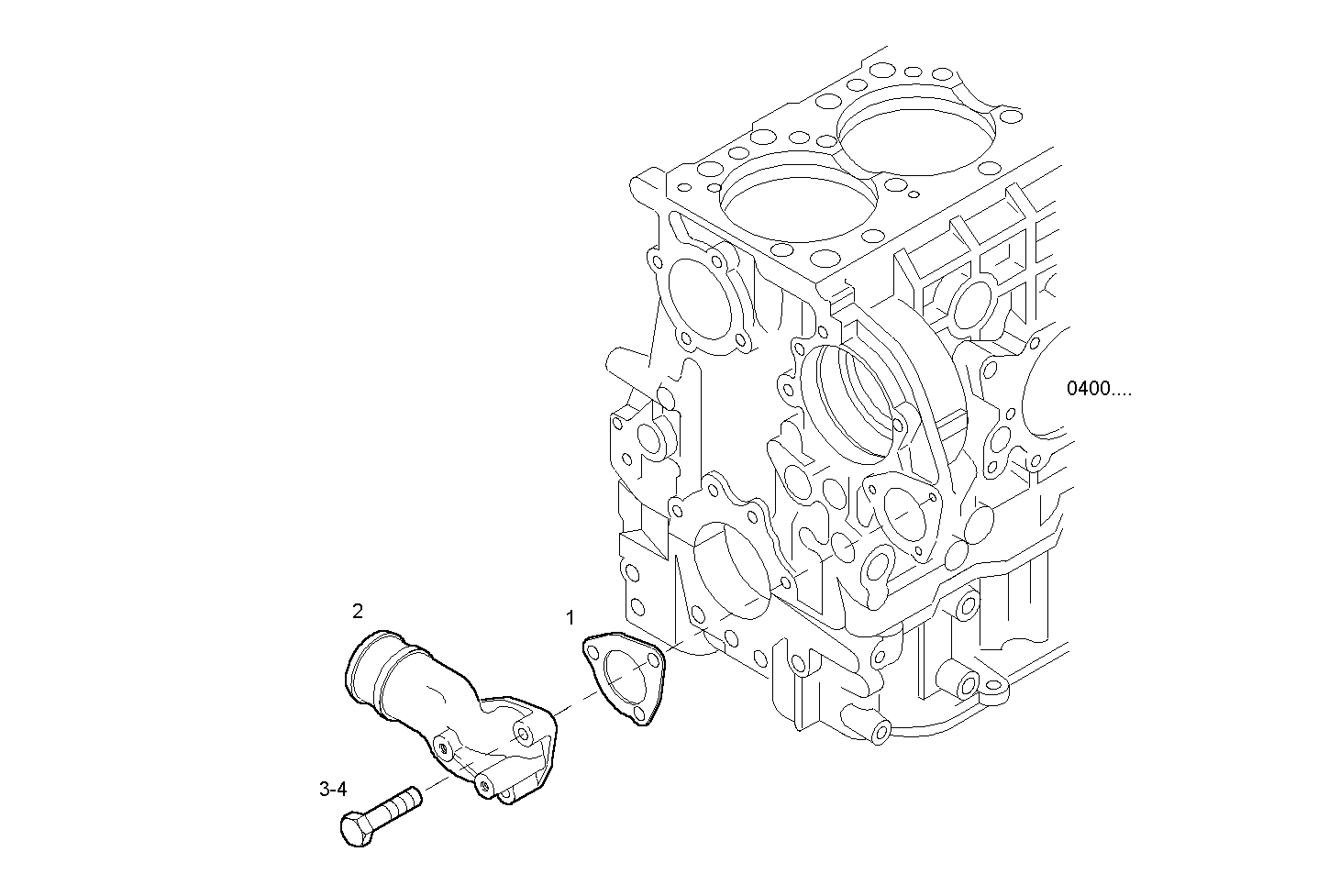

WATER PIPE
Assembly ID: 3230.038
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99466940 | FLAT ENGINE GASKET | 1 | ||
| 2 | 500373280 | WATER PIPE | 1 | ||
| 3 | 16674434 | HEXAGON BOLT | 2 | ||
| 4 | 16674934 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0684G*B004 | CURSOR 10 - TIER 2 | view |
| F3AE0684E*B006 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B003 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B005 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B006 | CURSOR 10 - TIER 2 | view |
| F3AE0684G*B005 | CURSOR 10 - TIER 2 | view |
| F3AE0684P*E904 | CURSOR 10 - TIER 3 | view |
| F3AE0684P*E905 | CURSOR 10 - TIER 3 | view |
| F3AE0684P*E906 | CURSOR 10 - TIER 3 | view |
| F3AE0684L*E906 | CURSOR 10 - TIER 3 | view |
| F3AE0684N*E907 | CURSOR 10 - TIER 3 | view |
| F3AE0684S*E908 | CURSOR 10 - TIER 3 | view |
| F3AE0684K*E905 | CURSOR 10 - TIER 3 | view |
| F3AE0684K*E904 | CURSOR 10 - TIER 3 | view |
| F3AE0684P*E909 | CURSOR 10 - TIER 3 | view |
