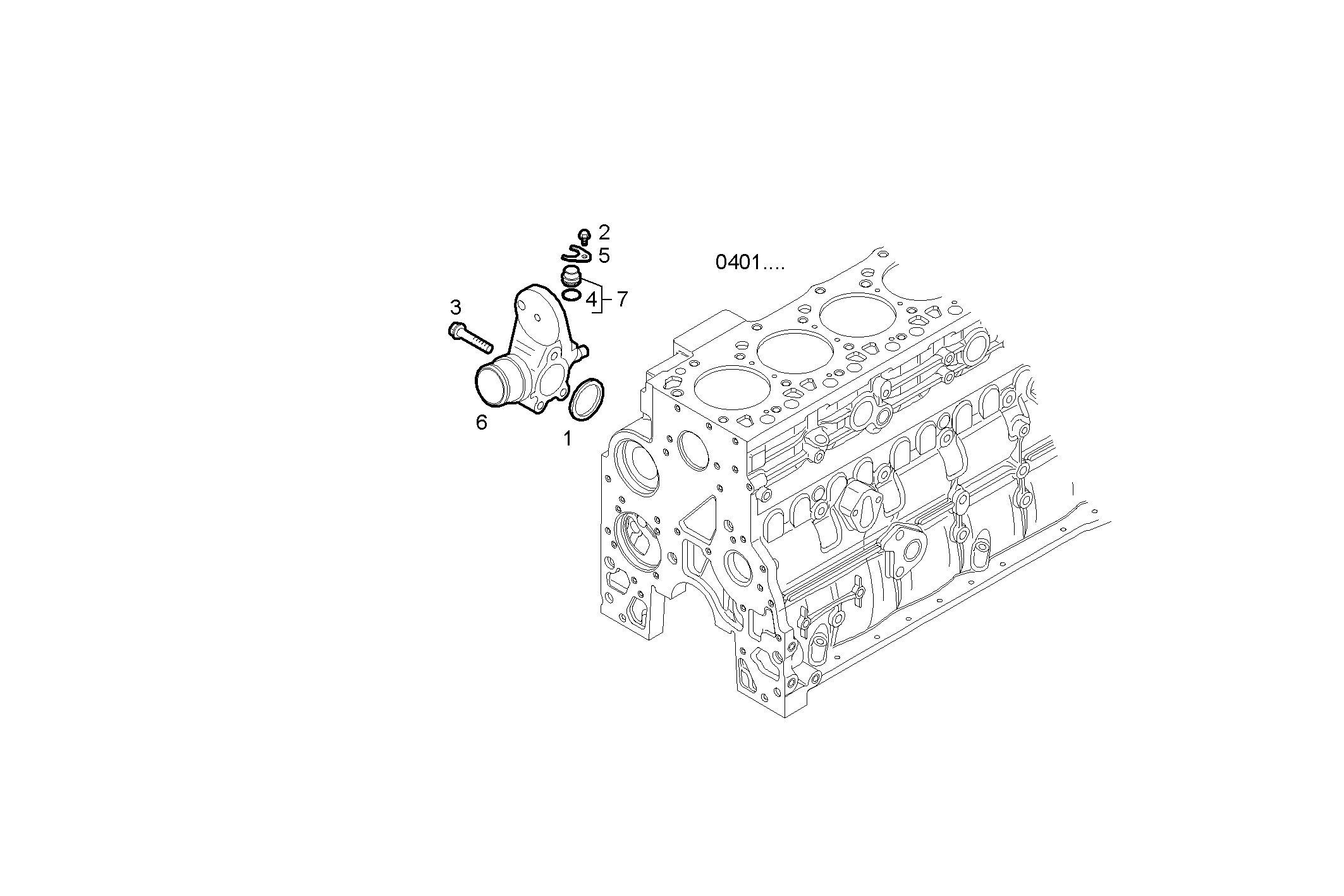

WATER PIPE
Assembly ID: 3230.043
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504062710 | WASHER | 1 | ||
| 2 | 4895164 | HEXAGON BOLT | 1 | ||
| 3 | 4895174 | HEXAGON BOLT | 3 | ||
| 4 | 17282081 | O-RING | 1 | ||
| 5 | 504074539 | FASTENING BRACKET | 1 | ||
| 6 | 504088100 | WATER PIPE | 1 | ||
| 7 | 504164586 | PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4DE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684U*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Y*J103 | NEF 6 electron. - TIER 3 | view |
| F4DE9687E*J103 | NEF 6 electron. - TIER 3 | view |
| F4DE9684X*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9687B*J100 | NEF 6 electron. - TIER 3 | view |
| F4CE9684K*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684N*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684P*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684J*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684H*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4DE9684W*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684A*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J102 | NEF 6 electron. - TIER 3 | view |
