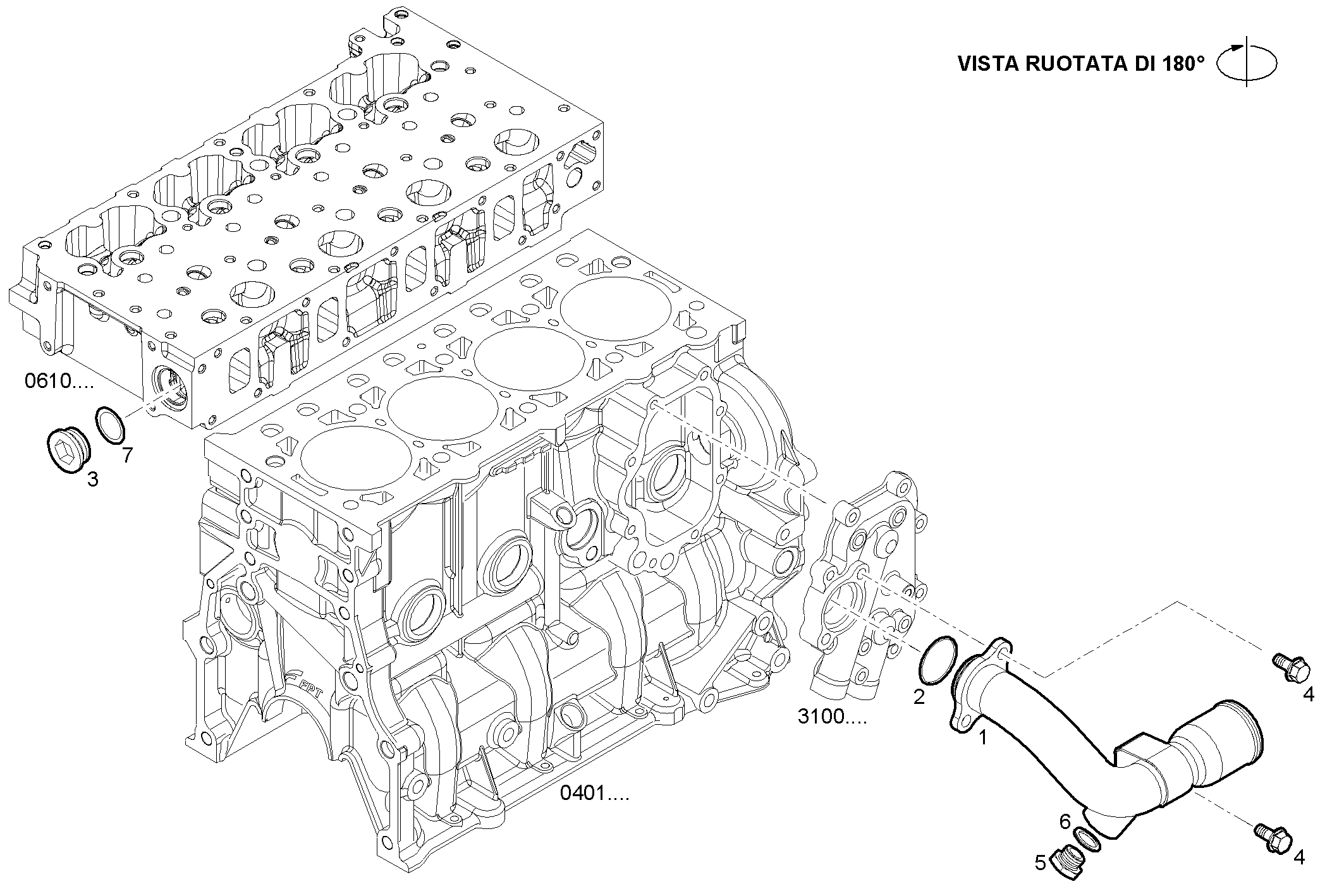

WATER PIPE

Assembly ID: 3230.045

WATER PIPE

Parts

# Part number Description Note Quantity
1 504182961 WATER PIPE 1
2 17289081 O-RING 1
3 16993711 THREADED PLUG 1
4 16600224 HEXAGON BOLT 3
5 16992411 THREADED PLUG 1
6 10257060 SEAL GASKET 1
7 10265160 SEAL GASKET 1

Applies to engines

Engine Family
F5CE9454E*A005 F32 mechanic. - TIER 3 view
F5CE9454E*A001 F32 mechanic. - TIER 3 view
F5CE9454C*A001 F32 mechanic. - TIER 3 view
F5CE9454G*A001 F32 mechanic. - TIER 3 view
F5CE9454E*A004 F32 mechanic. - TIER 3 view
F5CE9454E*A002 F32 mechanic. - TIER 3 view
F5CE9454E*A003 F32 mechanic. - TIER 3 view
F5CE9454E*A006 F32 mechanic. - TIER 3 view
F32MNSX00.00 F32 mechanic. - TIER 3 view
F5CE0455A*B001 F32 mechanic. - 2002/88/CE view
F5CE9455B*A001 F32 mechanic. - TIER 3 view
F5CE9484G*A001 F32 mechanic. - TIER 3 view
F5CE9484B*A002 F32 mechanic. - TIER 3 view
F5CE0485A*B001 F32 mechanic. - TIER 2 view
F5CE9485B*A001 F32 mechanic. - TIER 3 view
F32MNTX88.00 F32 mechanic. - TIER 3 view
F32TM1X.A008 F32 mechanic. - TIER 3 view
F32MNSX00.00A800 F32 mechanic. - TIER 3 view
F32MNSA85.10 F32 mechanic. - 2002/88/CE view
F32SM1A.S500 F32 mechanic. - 2002/88/CE view
GEF3240MA.R980 GEF32 mechanic. - 2008/88/CE view
F32MNTA85.00 F32 mechanic. - TIER 2 view
F32TM1A.S500 F32 mechanic. - 2002/88/CE view
GEF3250MA.R980 GEF32 mechanic. - 2008/88/CE view
F5CE9484E*A001 F32 mechanic. - TIER 3 view
F32MNTX20.00 F32 mechanic. - TIER 3 view
F32MNTX20.00A800 F32 mechanic. - TIER 3 view
