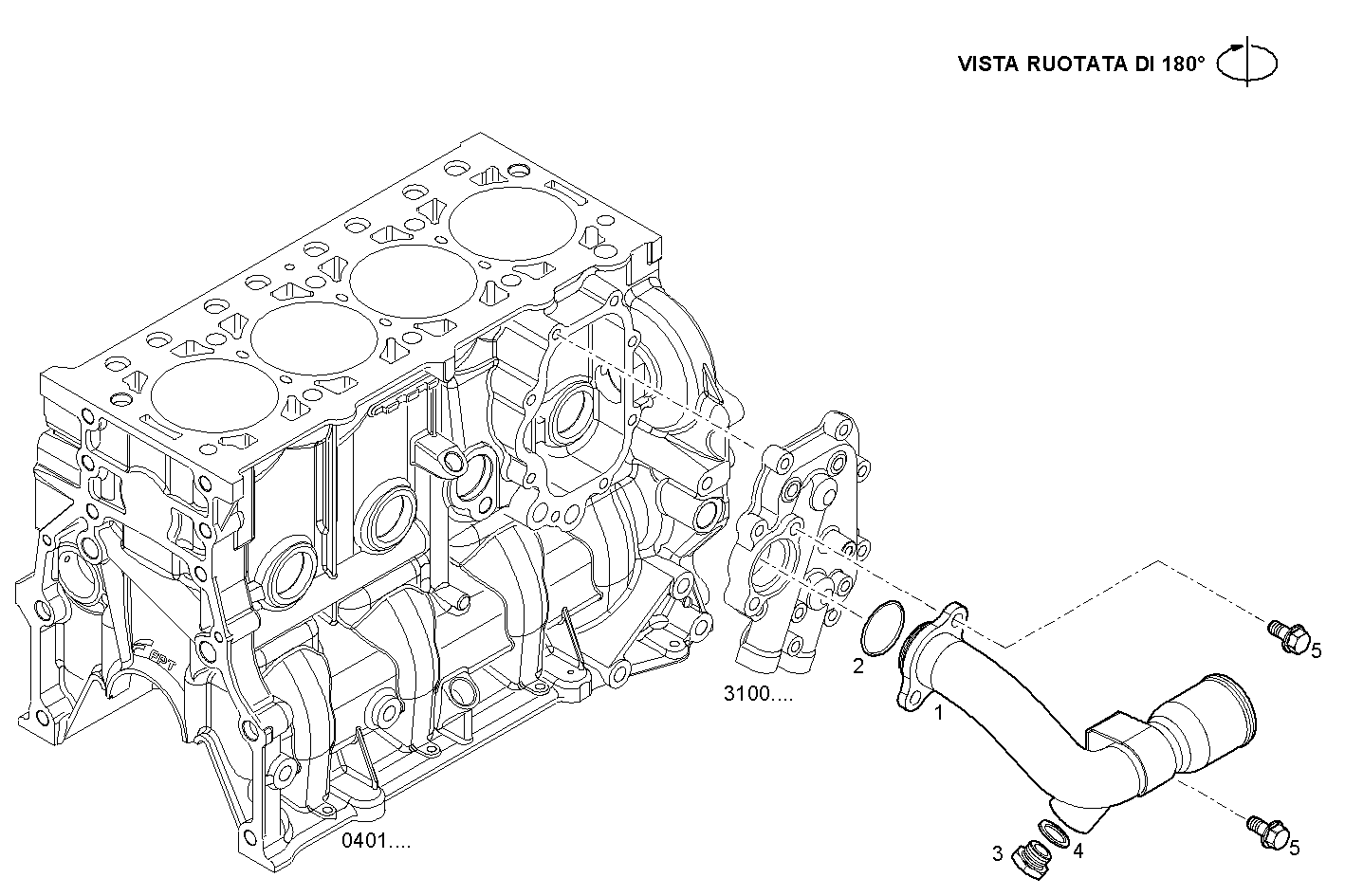

WATER PIPE
Assembly ID: 3230.046
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504182961 | WATER PIPE | 1 | ||
| 2 | 17289081 | O-RING | 1 | ||
| 3 | 16992411 | THREADED PLUG | 1 | ||
| 4 | 10257060 | SEAL GASKET | 1 | ||
| 5 | 16600224 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F32MNSX01.00A800 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A001 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A003 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A002 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A004 | F32 mechanic. - TIER 3 | view |
| F32MNSX01.00 | F32 mechanic. - TIER 3 | view |
