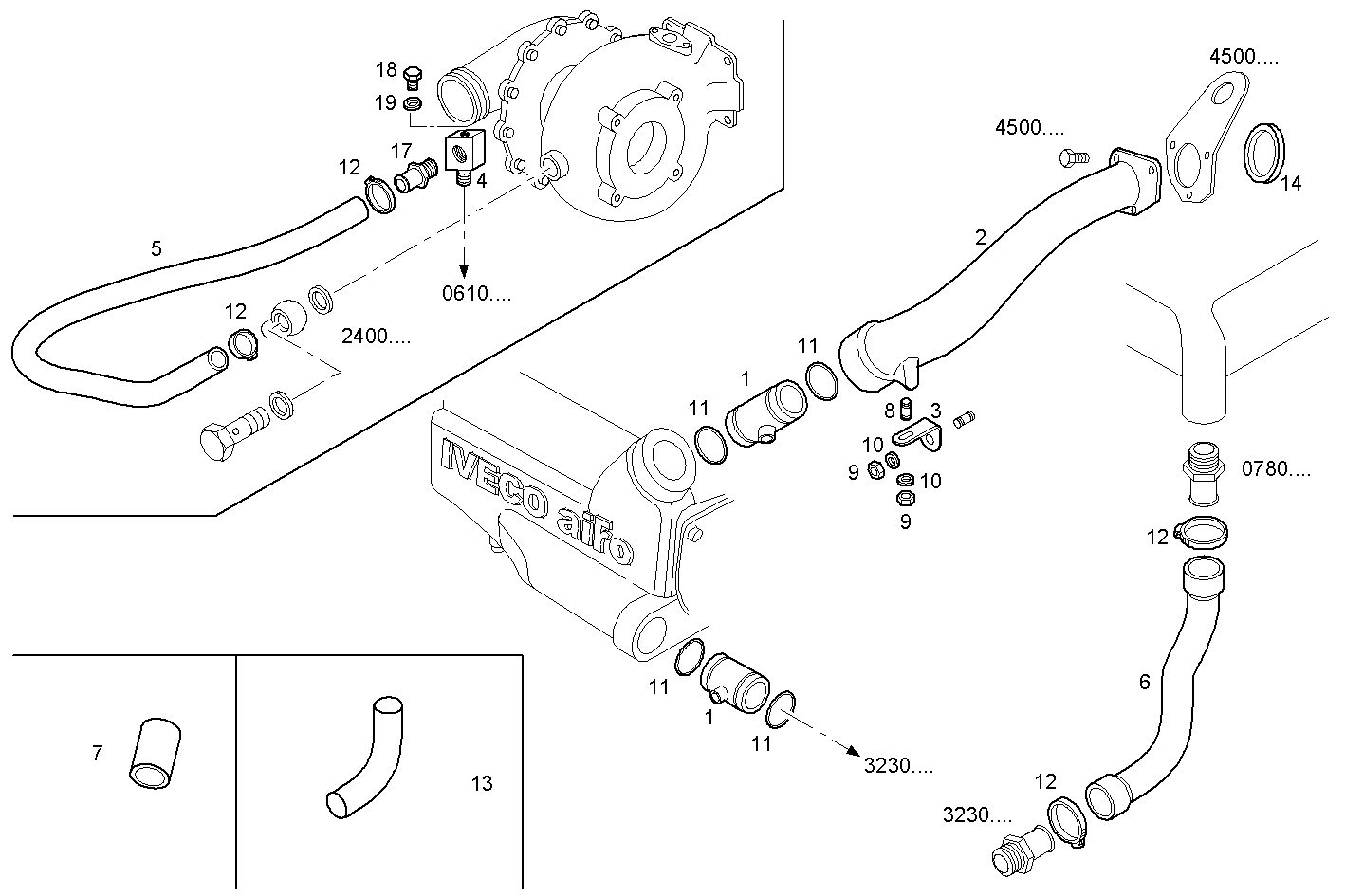

WATER PIPE

Assembly ID: 3230.053

WATER PIPE

Parts

# Part number Description Note Quantity
1 8018308 CONNECTOR SLEEVE 2
2 8036186 WATER PIPE 1
3 8031803 FASTENING BRACKET 1
4 8036937 PIPE SOCKET 1
5 8037097 WATER PIPE 1
6 8033541 WATER HOSE 1
7 8040181 RUBBER SLEEVE 1
8 16729224 STUD 1
9 17037925 HEXAGON NUT 2
10 17088374 WASHER 2
11 17289681 O-RING 4
12 18088593 CLIP 7
13 8037698 RUBBER SLEEVE 1
14 504078856 RUBBER GASKET 1
17 8032095 THREADED UNION 1
18 10300611 LOCK PLUG 1
19 4858608 SEAL GASKET 1
