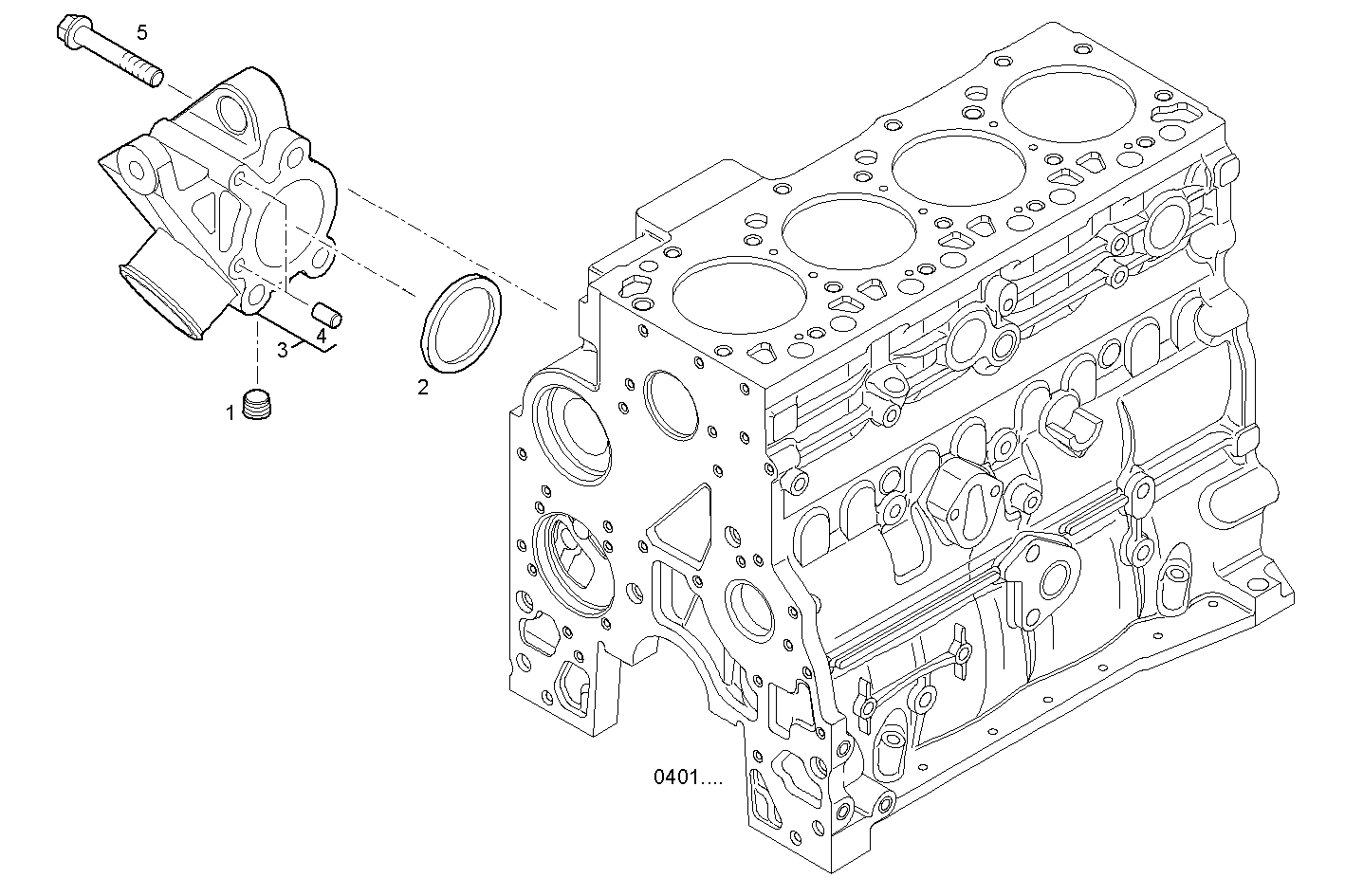

WATER PIPE
Assembly ID: 3230.059
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504074178 | THREADED PLUG | 1 | ||
| 2 | 504062710 | WASHER | 1 | ||
| 3 | 504064336 | GENERATOR SUPPORT | 1 | ||
| 4 | 2830894 | DOWEL PIN | 2 | ||
| 5 | 4899109 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE0404B*D650 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0454B*D651 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0454E*D651 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0404B*D651 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0404B*D603 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0454B*D602 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0454C*D660 | NEF 4 mechanic. - TIER 2 | view |
| N45MSSE03.50A001 | NEF 4 mechanic. - TIER 2 | view |
