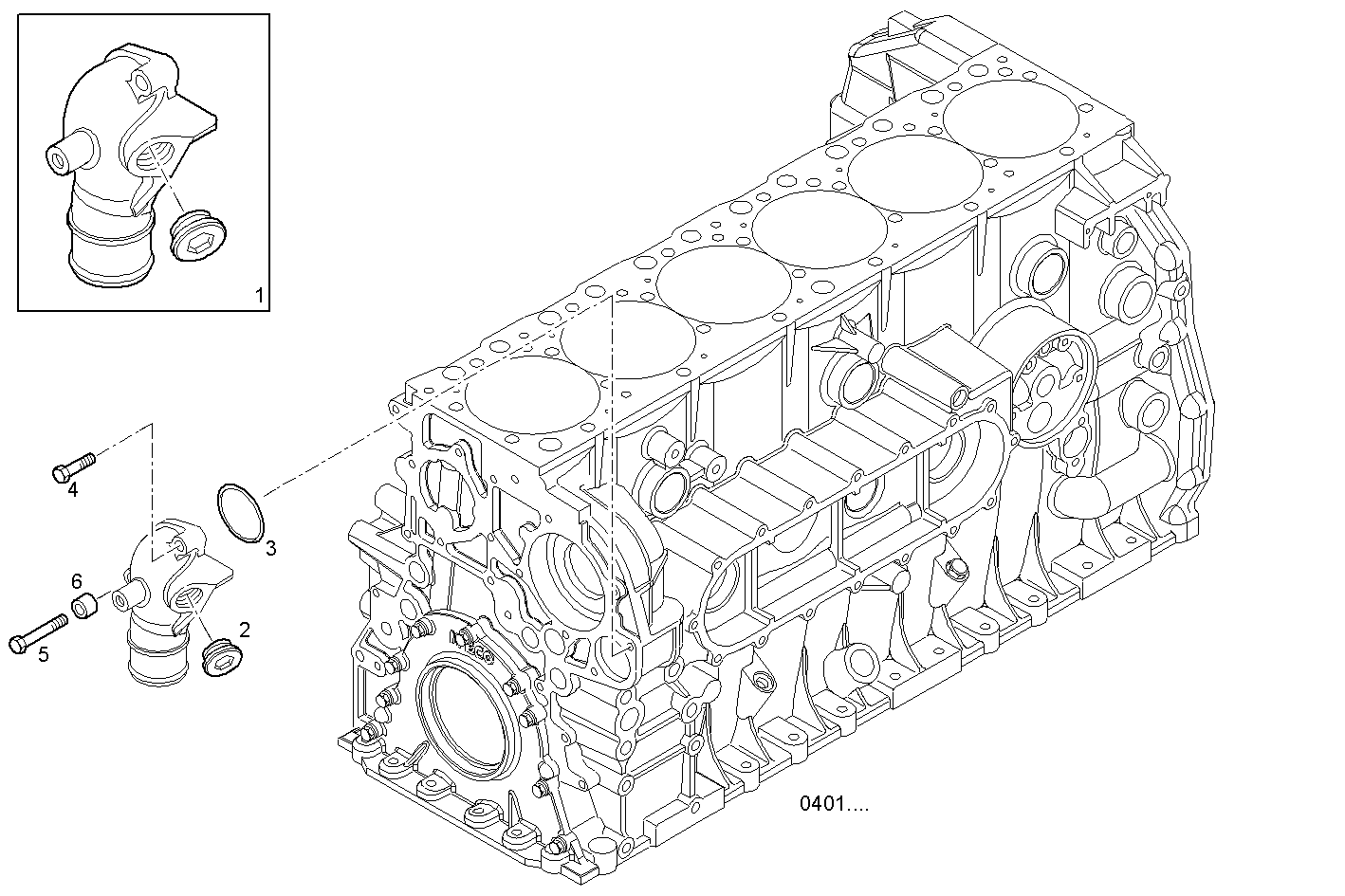

WATER PIPE
Assembly ID: 3230.075
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504332006 | WATER PIPE | 1 | ||
| 2 | 41221517 | THREADED PLUG | 1 | ||
| 3 | 17290081 | O-RING | 1 | ||
| 4 | 16586925 | HEXAGON BOLT | 1 | ||
| 5 | 16592525 | HEXAGON BOLT | 1 | ||
| 6 | 504253853 | SPACING BAR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE0681B*B200 | CURSOR 9 - EURO 3 | view |
| F2CE0681B*B201 | CURSOR 9 - EURO 3 | view |
