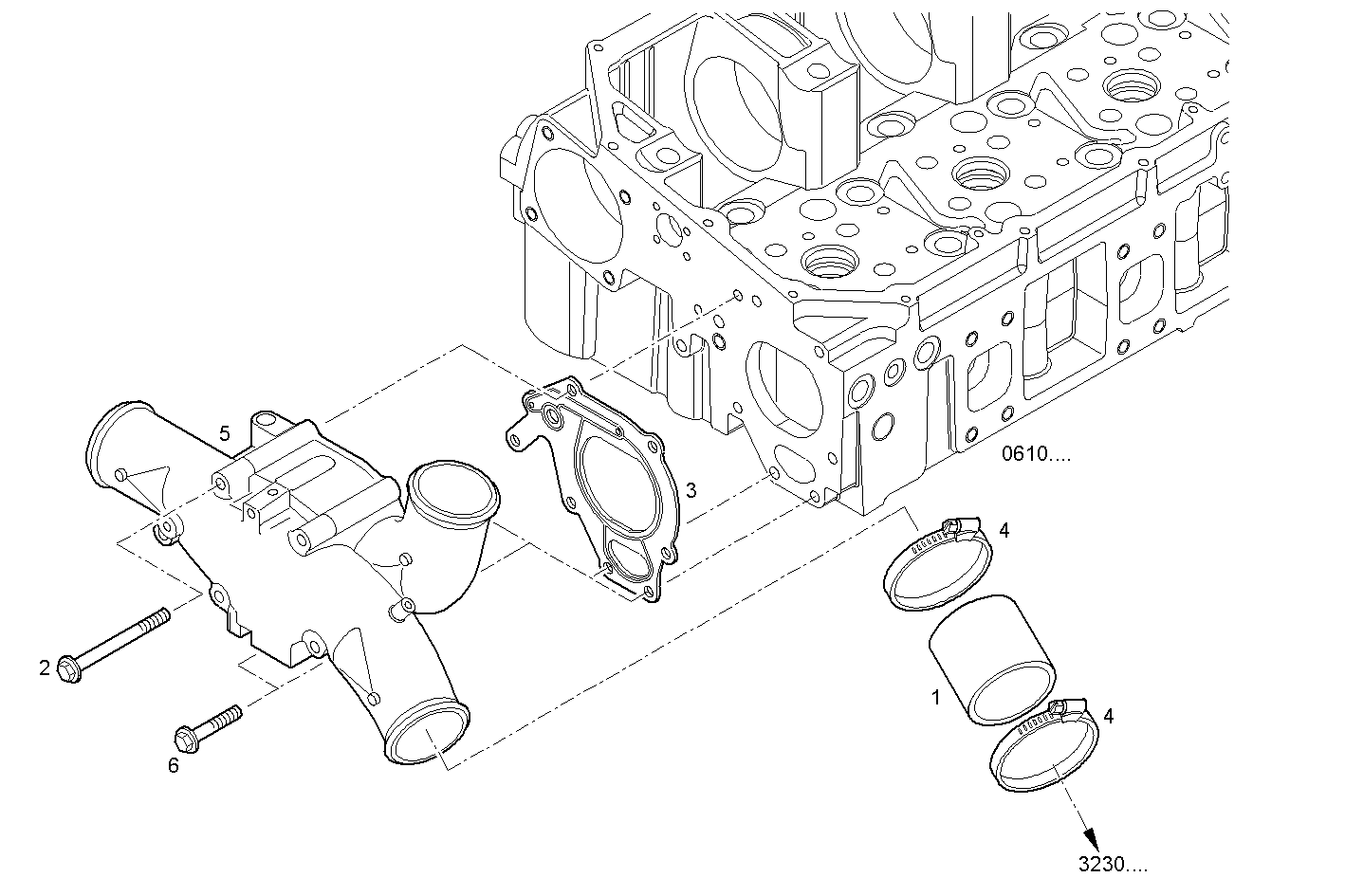

HEAD WATER EXIT PIPE
Assembly ID: 3239.010
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504000022 | WATER HOSE | 1 | ||
| 2 | 16598425 | HEXAGON BOLT | 5 | ||
| 3 | 500362150 | FLAT ENGINE GASKET | 1 | ||
| 4 | 17765093 | CLIP | 2 | ||
| 5 | 500324174 | WATER PIPE | 1 | ||
| 6 | 16586825 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
