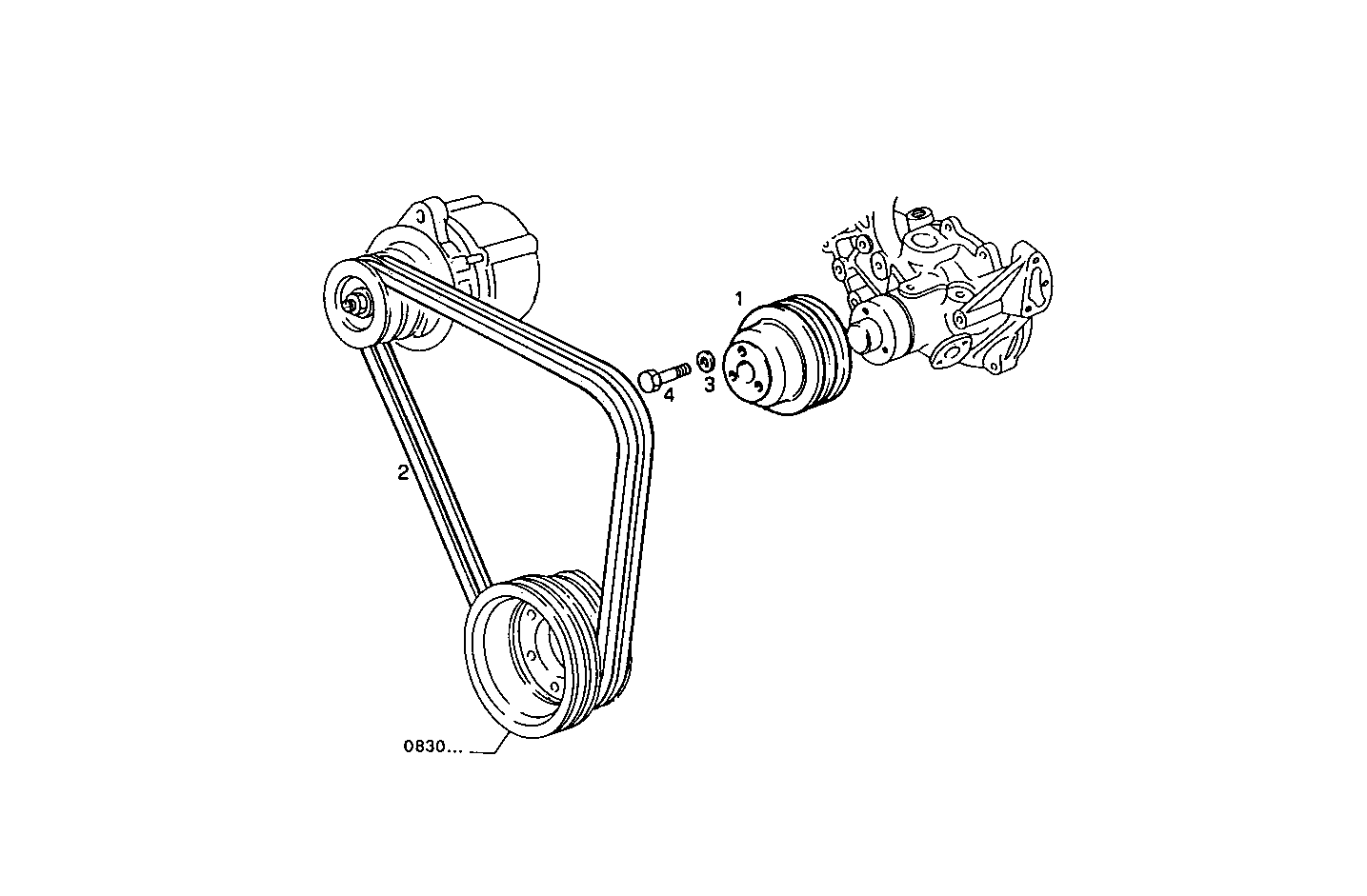

PULLEYS AND BELTS
Assembly ID: 3240.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4755341 | WATER PUMP PULLEY | 1 | ||
| 2 | 4796442 | V-BELT | 1 | ||
| 3 | 11194079 | SPRING WASHER | 3 | ||
| 4 | 16043421 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM27.10 | 8061SRM27 | view |
| 8061SRM24.00 | 8061SRM24 | view |
| 8061SRM24.10 | 8061SRM24 | view |
