PULLEYS AND BELTS

Assembly ID: 3240.012

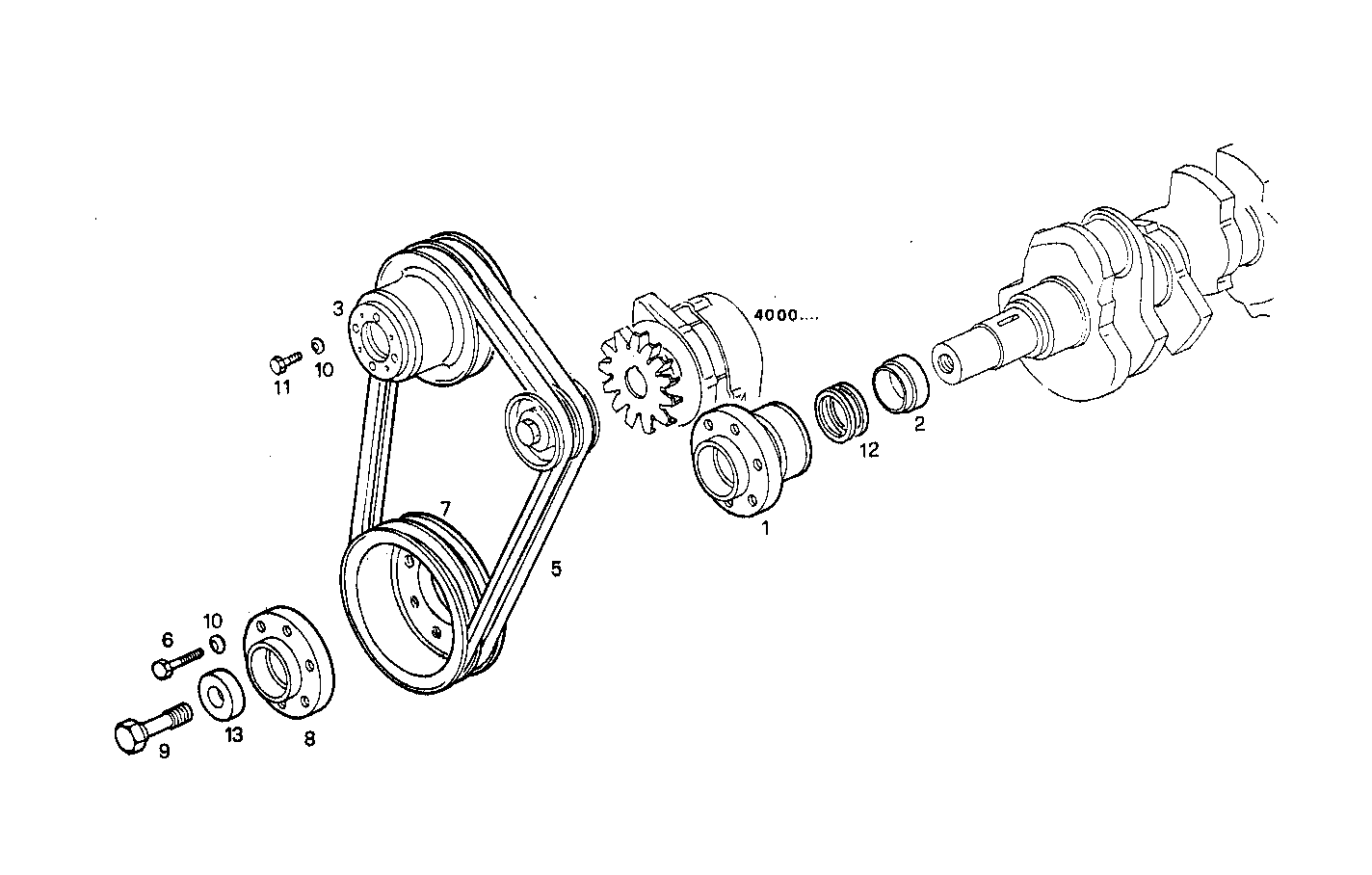

PULLEYS AND BELTS

Parts

# Part number Description Note Quantity
1 4820917 HUB 1
2 4711787 BUSH 1
3 4802373 PULLEY 1
5 8109714 SET OF V-BELTS 1
6 11234731 HEXAGON BOLT 6
7 4802369 PULLEY 1
8 4725248 SPACING BAR 1
9 8823774 SCREW 1
10 17090274 WASHER 10
11 11306931 SCREW 4
12 4811426 BUSH 2
13 8823773 WASHER 1

Applies to engines

Engine Family
GE8361SRi25.00A50L GE8361SRi25 view
GE8361SRi25.00A50S GE8361SRi25 view
GE8361SRi25.00A52S GE8361SRi25 view
GE8361SRi25.00A70E GE8361SRi25 view
GE8361SRi25.00A70L GE8361SRi25 view
GE8361SRi25.00A70S GE8361SRi25 view
GE8361SRi25.06A905 GE8361SRi25 view
GE8361SRi25.06A955 GE8361SRi25 view
GS8361SRi25.06 GS8361SRi25 view
GS8361SRi25.06A060 GS8361SRi25 view
GS8361SRi25.06A601 GS8361SRi25 view
GS8361SRi25.06A651 GS8361SRi25 view
8361SRi13.00 8361SRi13 view
8361SRi15.02 8361SRi15 view
8361SRi25.00 8361SRi25 view
8361Si11.05 8361Si11 view
8361SRi11.05 8361SRi11 view
8361SRi10.01 8361SRi10 view
8361SRi15.01 8361SRi15 view
8361SRi25.06 8361SRi25 view
8361SRi25.07 8361SRi25 view
8361SRE10.00A004 8361SRE10 view
8361SRE10.00 8361SRE10 view
8361SRi25.05 8361SRi25 view
8361SRi40.00 8361SRi40 view
8361Si10.00 8361Si10 view
8361SRE10.00A800 8361SRE10 view
8361SRi25.00A550 8361SRi25 view
8361SRi25.00A580 8361SRi25 view
8361SRi25.06A550 8361SRi25 view
8361SI10.00A802 8361Si10 view
8361SI10.00A801 8361Si10 view
8361SI10.00A800 8361Si10 view
8361SRE10.00A801 8361SRE10 view
8361SRI10.01A801 8361SRi10 view
PU8361SI10.00A100 PU8361SI10 view
PU8361SRE10.00A100 PU8361SRE10 view
