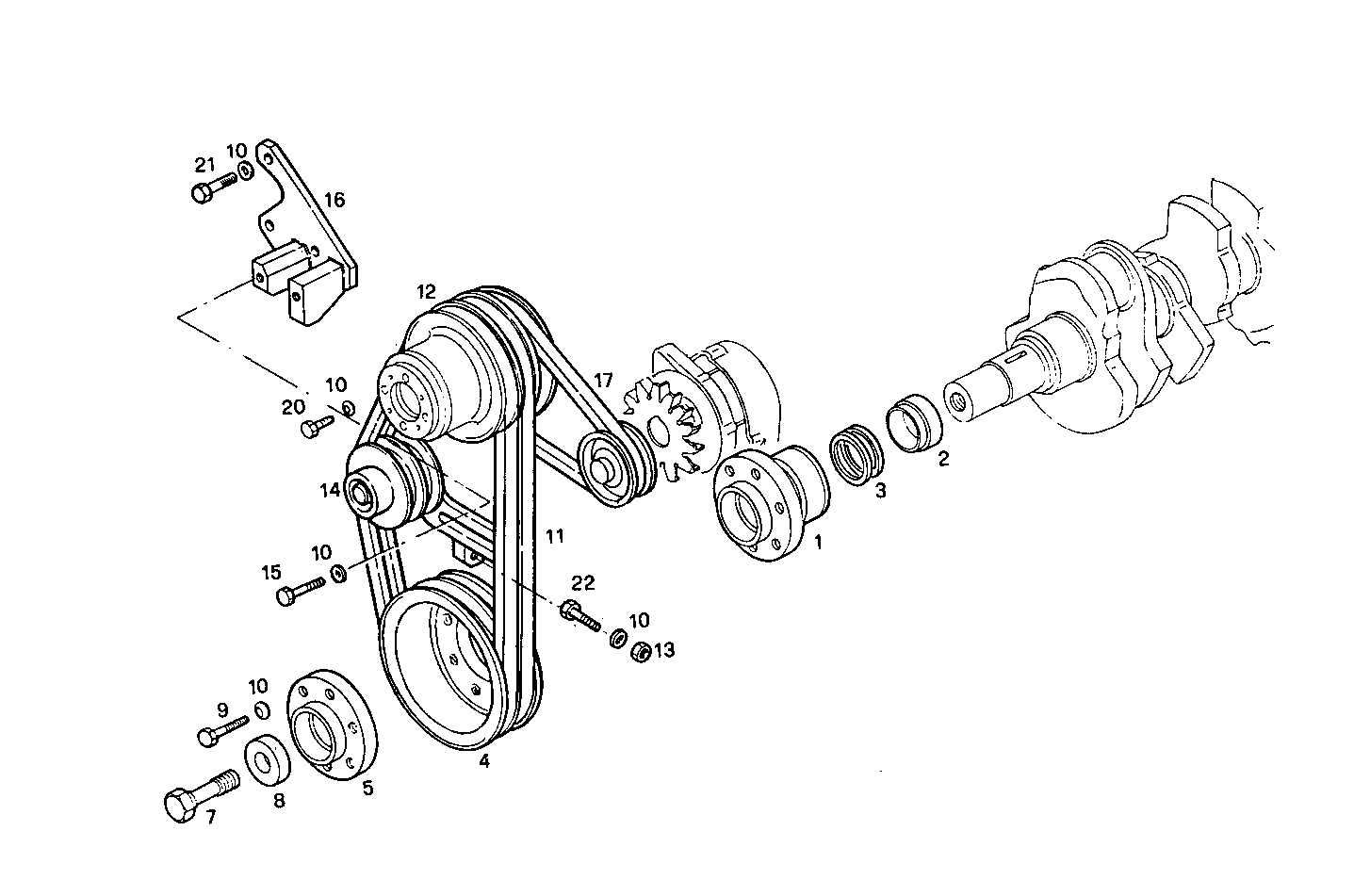

| 1 |
4820917
|
HUB
|
|
1
|
|
| 2 |
4711787
|
BUSH
|
|
1
|
|
| 3 |
4811426
|
BUSH
|
|
1
|
|
| 4 |
8112730
|
PULLEY
|
|
1
|
|
| 5 |
4725248
|
SPACING BAR
|
|
1
|
|
| 7 |
8823774
|
SCREW
|
|
1
|
|
| 8 |
8823773
|
WASHER
|
|
1
|
|
| 9 |
15888831
|
HEXAGON BOLT
|
|
6
|
|
| 10 |
17090274
|
WASHER
|
|
15
|
|
| 11 |
4763649
|
SET OF V-BELTS
|
|
1
|
|
| 12 |
8112729
|
PULLEY
|
|
1
|
|
| 13 |
12164711
|
HEXAGON NUT
|
|
1
|
|
| 14 |
8112733
|
BELT TENSIONER
|
|
1
|
|
|
8112732 |
BELT TENSIONER |
|
1 |
|
|
8107853 |
BELT TENSIONER |
|
1 |
|
| 15 |
15004021
|
HEXAGON BOLT
|
|
2
|
|
| 16 |
8112731
|
SUPPORT
|
|
1
|
|
| 17 |
4830442
|
V-BELT
|
|
1
|
|
| 20 |
15971821
|
SCREW
|
|
4
|
|
| 21 |
15971321
|
HEXAGON BOLT
|
|
3
|
|
| 22 |
15231721
|
SCREW
|
|
1
|
|
