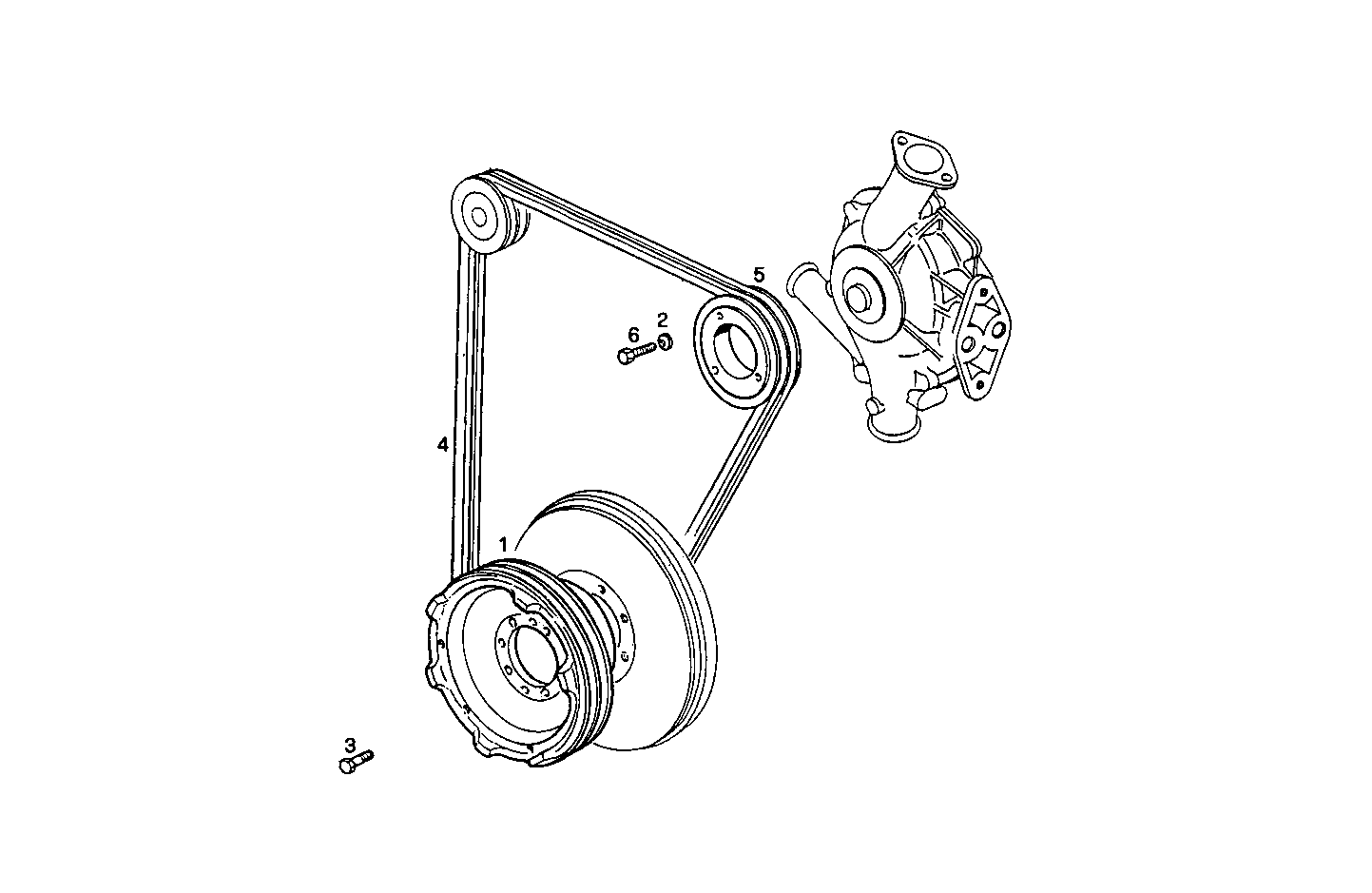

PULLEYS AND BELTS
Assembly ID: 3240.024
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4814680 | PULLEY | 1 | ||
| 2 | 17089574 | WASHER | 3 | ||
| 3 | 14255030 | LOCKING SCREW | 8 | ||
| 4 | 4814683 | V-BELT | 1 | ||
| 5 | 8104376 | PULLEY | 1 | ||
| 6 | 16605524 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8281Si10.00 | 8281Si10 | view |
| 8281Si15.00 | 8281Si15 | view |
| PU8281Si10.00A101 | PU8281Si10 | view |
| 8281Si15.00A500 | 8281Si15 | view |
| 8281Si15.00A550 | 8281Si15 | view |
| 8281Si15.00A580 | 8281Si15 | view |
| PU8281SI10.00A103 | PU8281Si10 | view |
