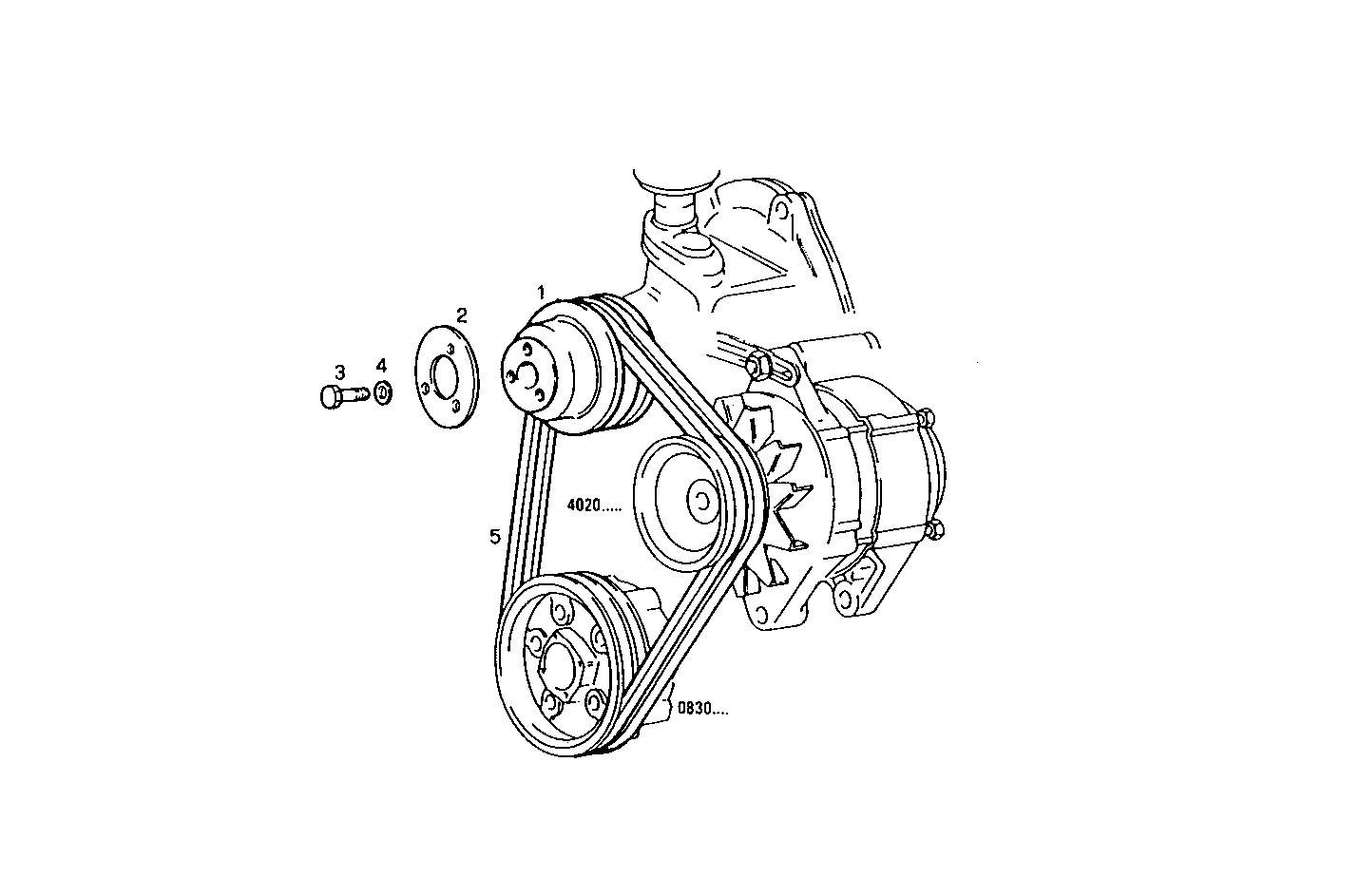

PULLEYS AND BELTS
Assembly ID: 3240.069
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4619286 | WATER PUMP PULLEY | 1 | ||
| 2 | 4584861 | SPACING BAR | 1 | ||
| 3 | 16605624 | HEXAGON BOLT | 3 | ||
| 4 | 17089474 | SPRING WASHER | 3 | ||
| 5 | 98473886 | SET OF V-BELTS | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8041M08.40 | 8041M08 | view |
