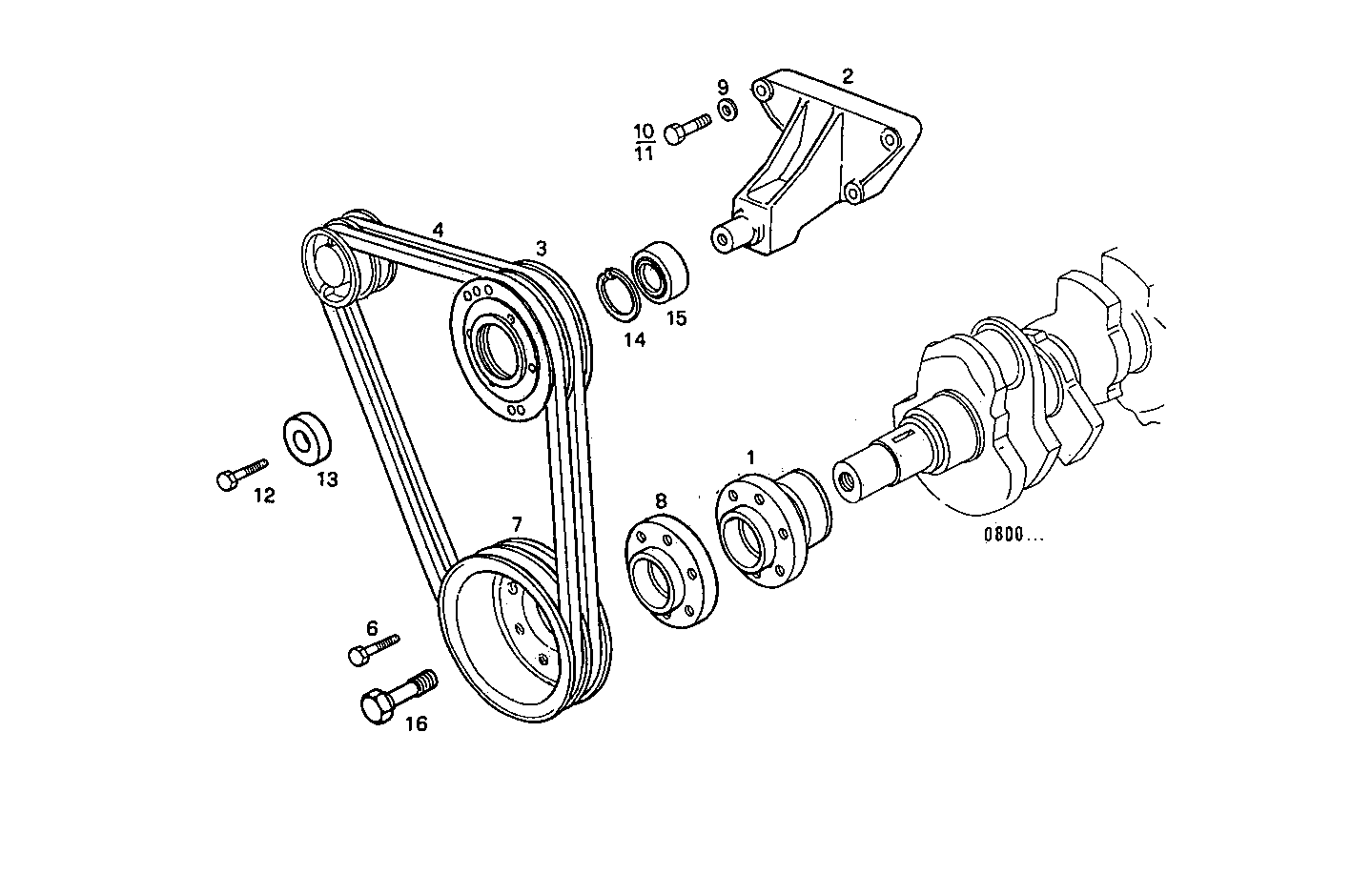

| 1 |
4852786
|
HUB
|
|
1
|
|
| 2 |
98470565
|
SUPPORT
|
|
1
|
|
| 3 |
98470573
|
PULLEY
|
|
1
|
|
| 4 |
98429205
|
SET OF V-BELTS
|
|
1
|
|
| 6 |
16324134
|
HEXAGON BOLT
|
|
6
|
|
| 7 |
98415051
|
CRANKSHAFT PULLEY
|
|
1
|
|
| 8 |
98424646
|
SPACING BAR
|
|
1
|
|
| 9 |
17090174
|
SPRING WASHER
|
|
4
|
|
| 10 |
11343721
|
HEXAGON BOLT
|
|
2
|
|
| 11 |
15971821
|
SCREW
|
|
2
|
|
| 12 |
16678434
|
HEXAGON BOLT
|
|
1
|
|
| 13 |
98427590
|
WASHER
|
|
1
|
|
| 14 |
16874776
|
CIRCLIP
|
|
1
|
|
| 15 |
98427607
|
ENGINE BEARINGS
|
|
1
|
|
| 16 |
99435038
|
SCREW
|
|
1
|
|
