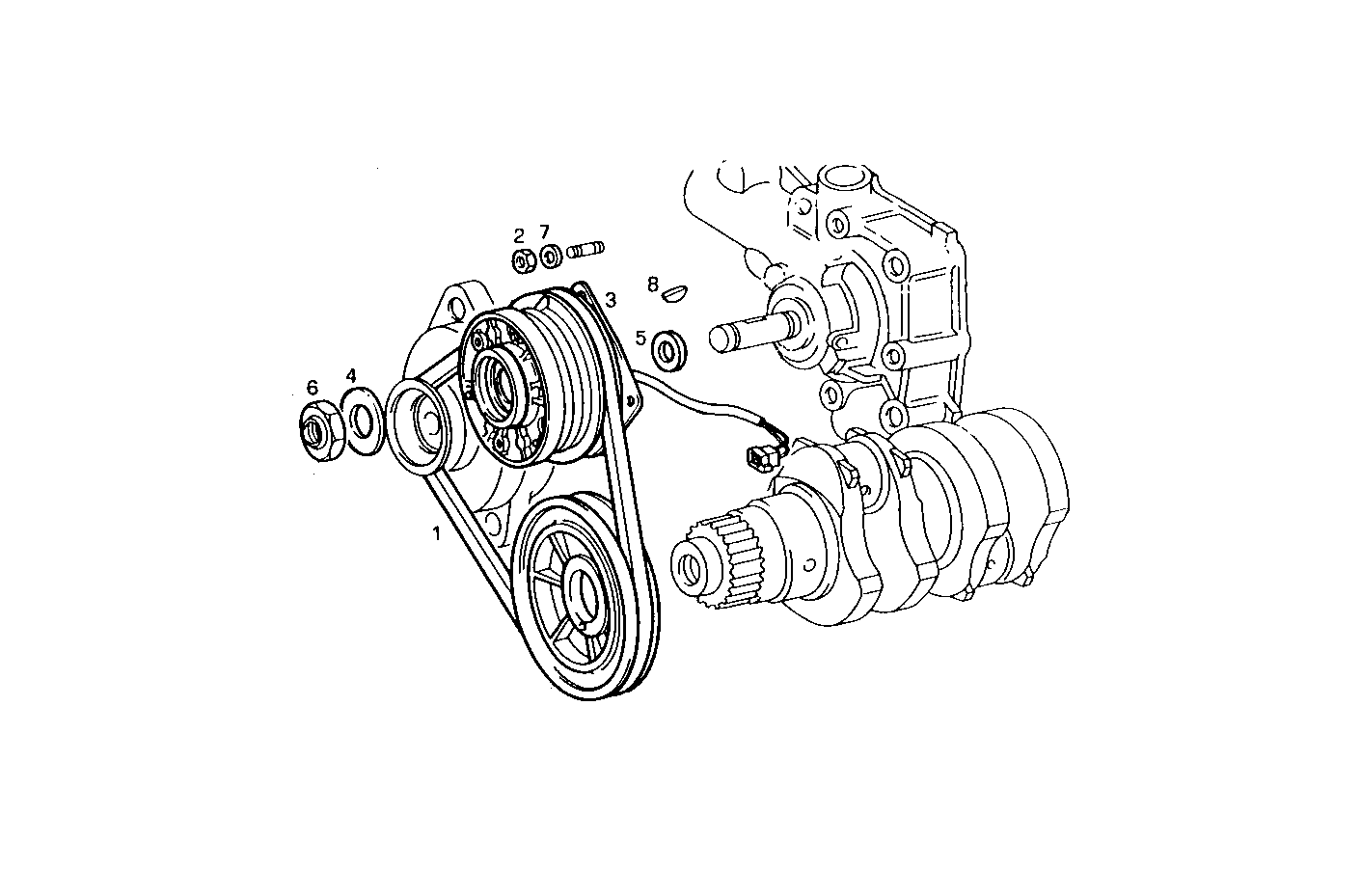

PULLEYS AND BELTS
Assembly ID: 3240.092
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4827114 | WATER PUMP BELT | 1 | ||
| 2 | 17037821 | HEXAGON NUT | 4 | ||
| 3 | 99447016 | WATER PUMP PULLEY | 1 | ||
| 4 | 17092074 | SPRING WASHER | 1 | ||
| 5 | 98437565 | WASHER | 1 | ||
| 6 | 98446151 | HEXAGON NUT | 1 | ||
| 7 | 11197774 | WASHER | 4 | ||
| 8 | 10205710 | KEY | 1 | ||
| 9 | 98431967 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SE00.00A012 | 8140SE00 | view |
