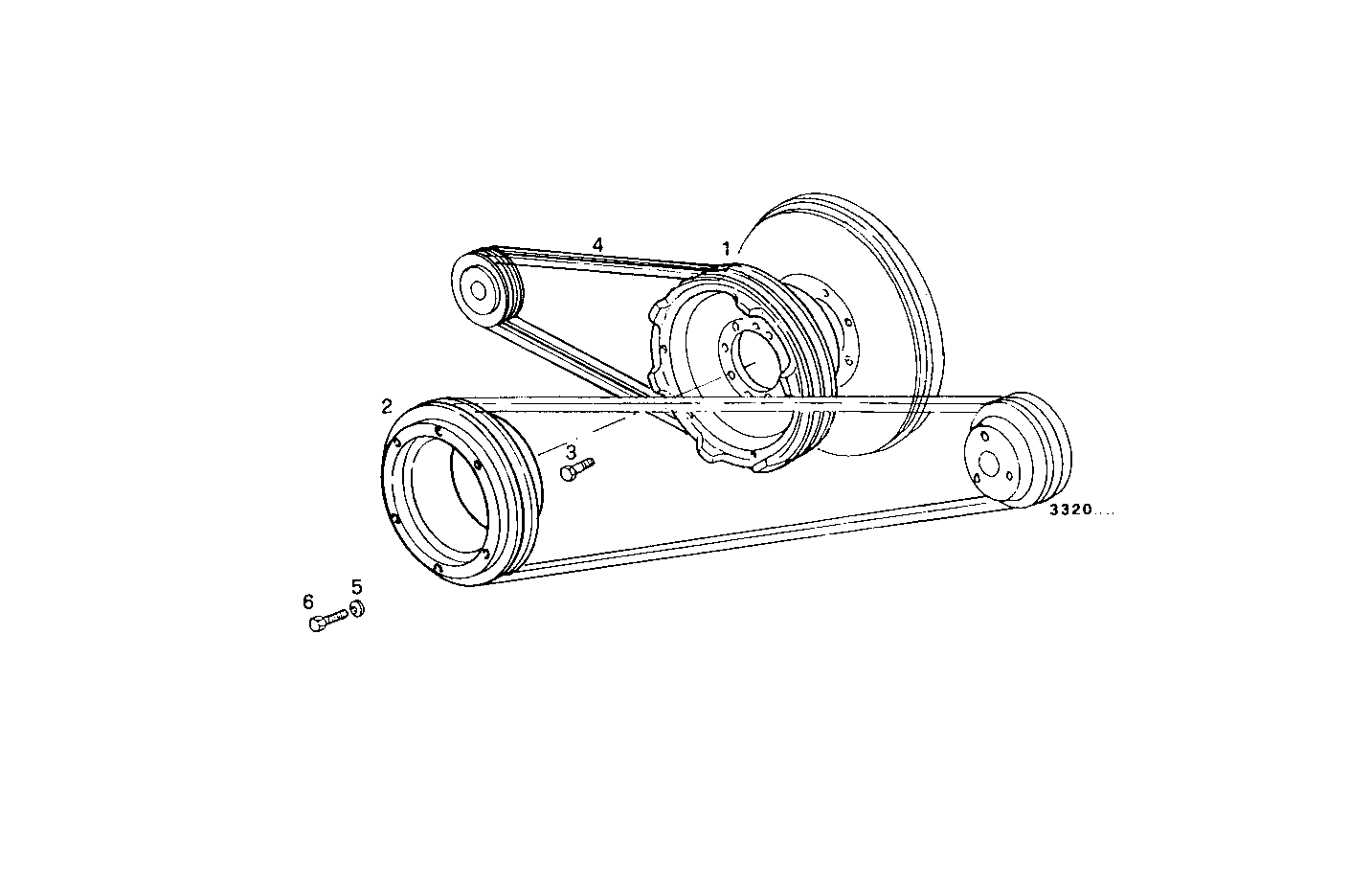

PULLEYS AND BELTS
Assembly ID: 3240.112
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98472209 | PULLEY | 1 | ||
| 2 | 8010805 | PULLEY | 1 | ||
| 3 | 14255030 | LOCKING SCREW | 8 | ||
| 4 | 4936553 | SET OF V-BELTS | 1 | ||
| 5 | 17089474 | SPRING WASHER | 6 | ||
| 6 | 16606524 | HEXAGON BOLT | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8281SRG75.10A80E | GE8281SRG75 | view |
| 8281SRG75.10 | 8281SRG75 | view |
| 8281SRG75.10A500 | 8281SRG75 | view |
