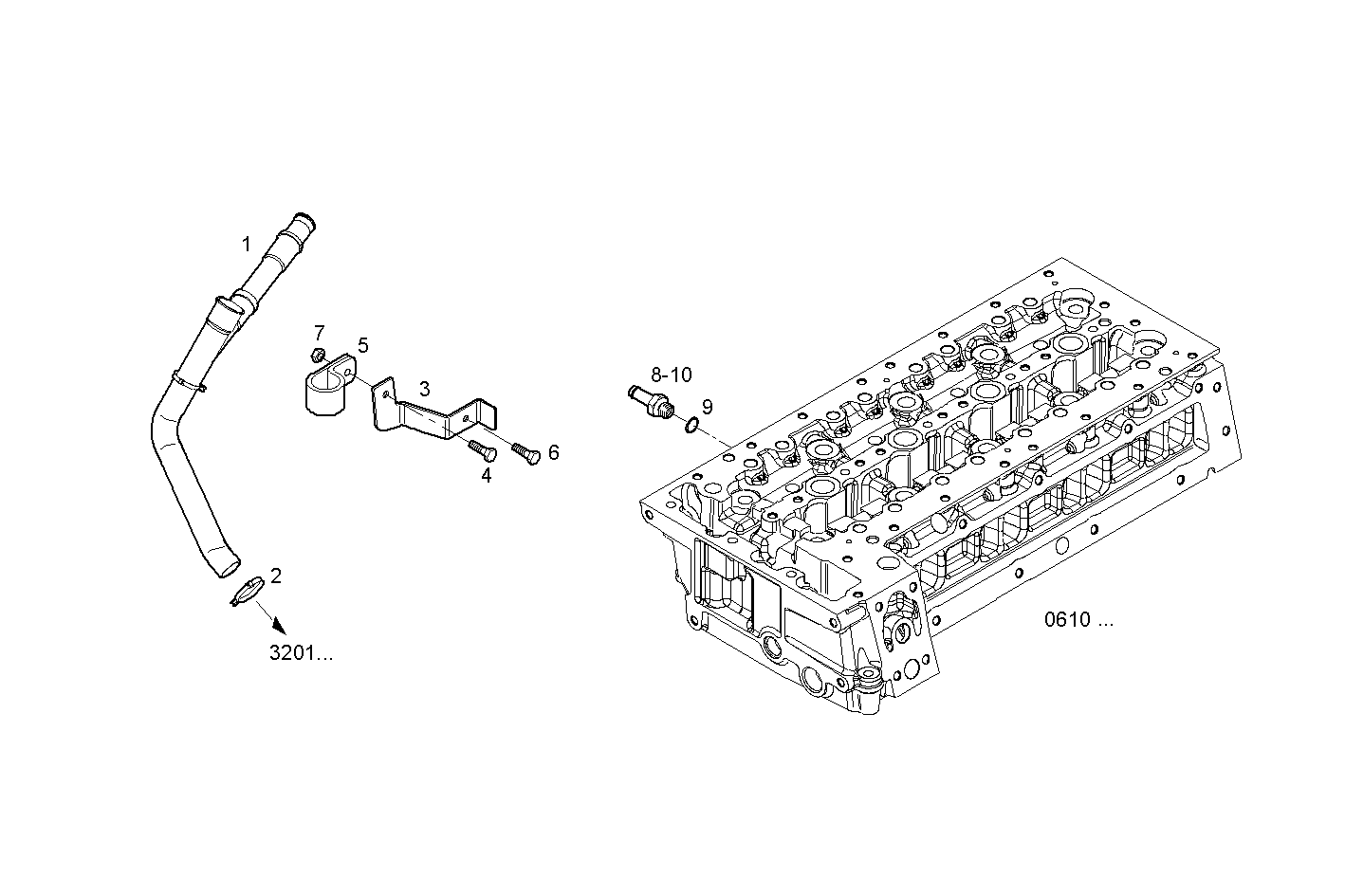

DELIV. HEATING PIPE
Assembly ID: 3240.189
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504136998 | HEATING TUBE | 1 | ||
| 2 | 98463348 | CLIP | 1 | ||
| 3 | 504136999 | RETAINER | 1 | ||
| 4 | 16673635 | HEXAGON BOLT | 1 | ||
| 5 | 17315290 | LOCK/YOKE | 1 | ||
| 6 | 16596924 | HEXAGON BOLT | 1 | ||
| 7 | 17044721 | HEXAGON NUT | 1 | ||
| 8 | 500389975 | CONNECTION PIPE | 1 | ||
| 9 | 10260160 | SEAL GASKET | 1 | ||
| 10 | 504158477 | CONNECTION PIPE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0481F*A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.10P002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0487K*C502 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C503 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.30A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.91L003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C504 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.70A002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.11A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A003 | SOFIM HPI 3.0L - EURO 4 | view |
