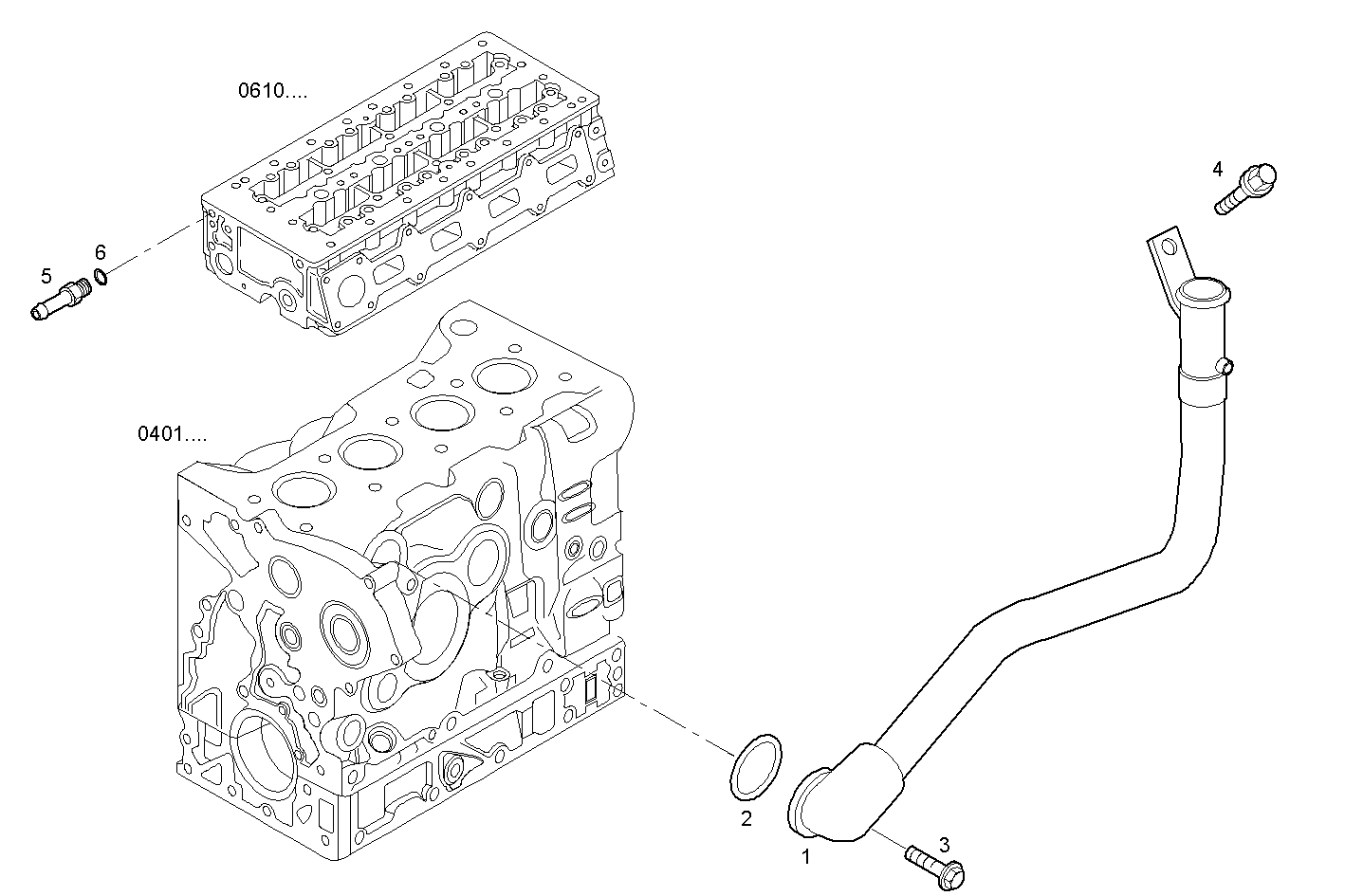

DELIV. HEATING PIPE
Assembly ID: 3240.197
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504159262 | WATER PIPE | 1 | ||
| 2 | 17288480 | O-RING | 1 | ||
| 3 | 18137825 | HEXAGON BOLT | 1 | ||
| 4 | 16673635 | HEXAGON BOLT | 1 | ||
| 5 | 504158477 | CONNECTION PIPE | 1 | ||
| 6 | 10260160 | SEAL GASKET | 1 | ||
| 7 | 500389975 | CONNECTION PIPE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
