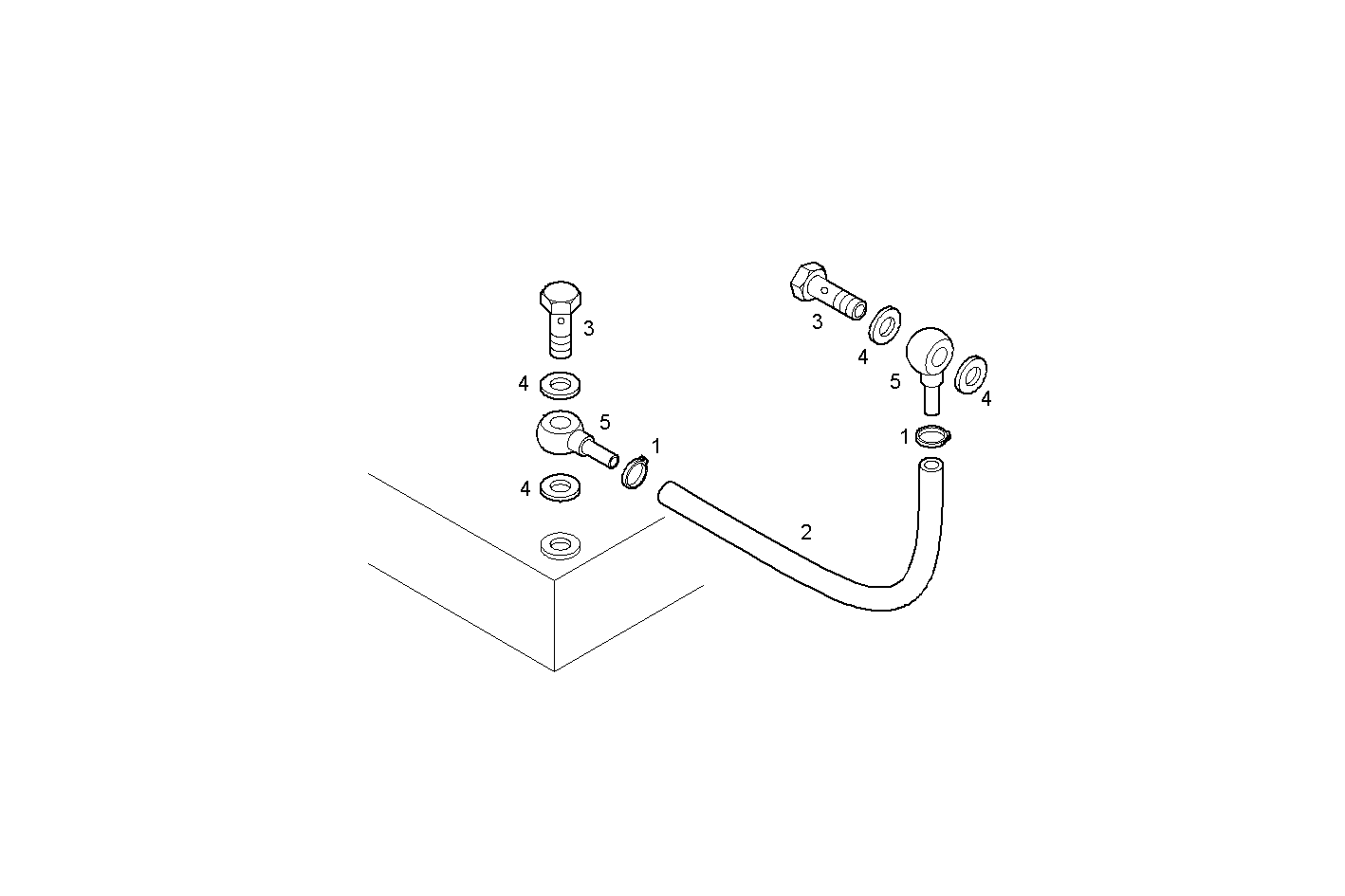

RETURN EXPANSION TANK WATER
Assembly ID: 3243.004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 18087993 | CLIP | 2 | ||
| 2 | 17724587 | RUBBER HOSE | 1 | ||
| 3 | 4864082 | BANJO BOLT | 2 | ||
| 4 | 98474306 | WASHER | 4 | ||
| 5 | 98405514 | PIPE SOCKET | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTF40.01A001 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTF41.00A001 | NEF 6 mechanic. | view |
| N67MNTF42.00A001 | NEF 6 mechanic. | view |
