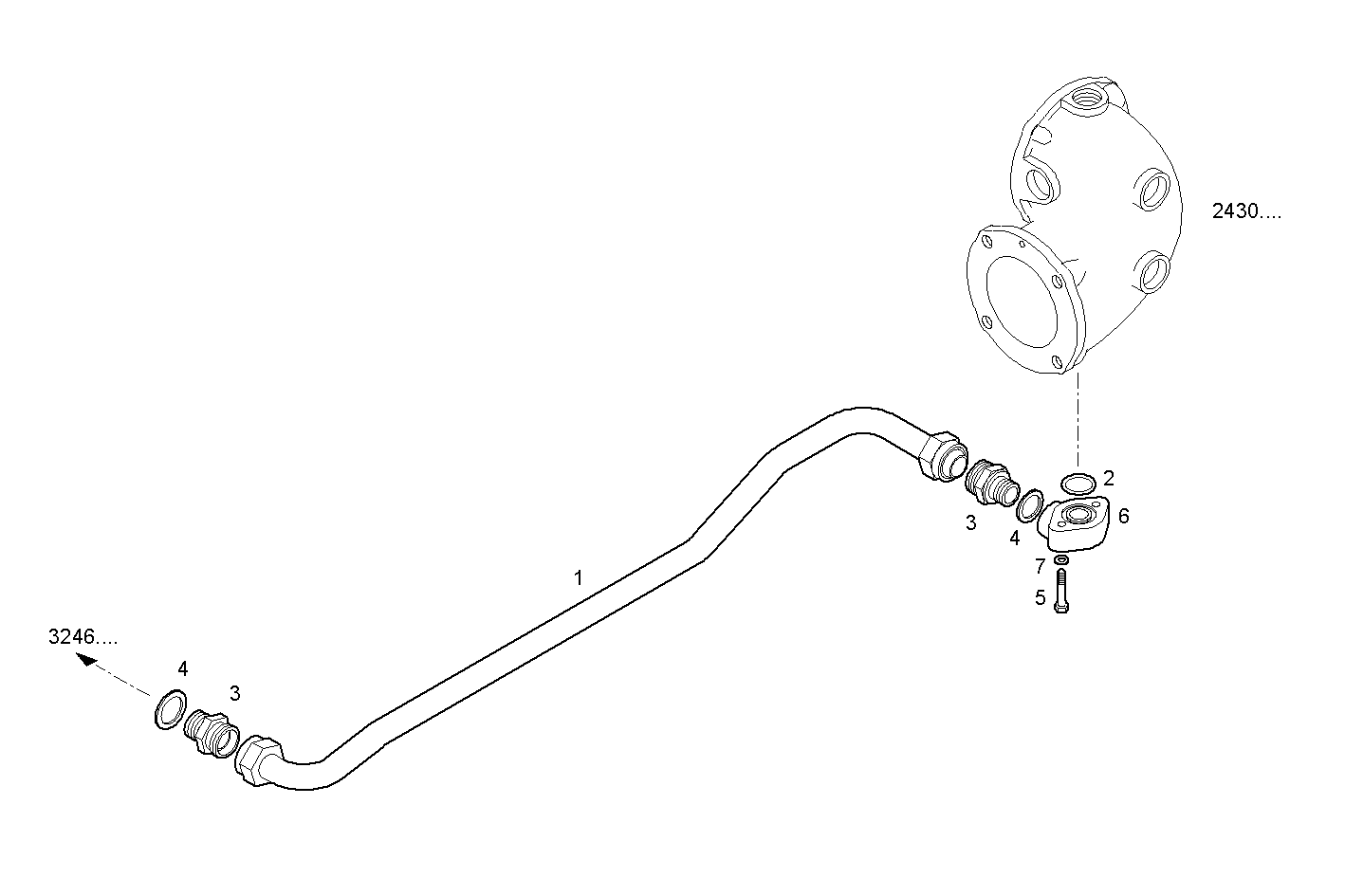

WATER LINES
Assembly ID: 3246.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8040899 | WATER PIPE | 1 | ||
| 2 | 17282381 | O-RING | 1 | ||
| 3 | 16500514 | THREADED UNION | 2 | ||
| 4 | 99489022 | SEAL GASKET | 2 | ||
| 5 | 16604024 | HEXAGON BOLT | 2 | ||
| 6 | 8031032 | FLANGED SOCKET | 1 | ||
| 7 | 17088474 | WASHER | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
