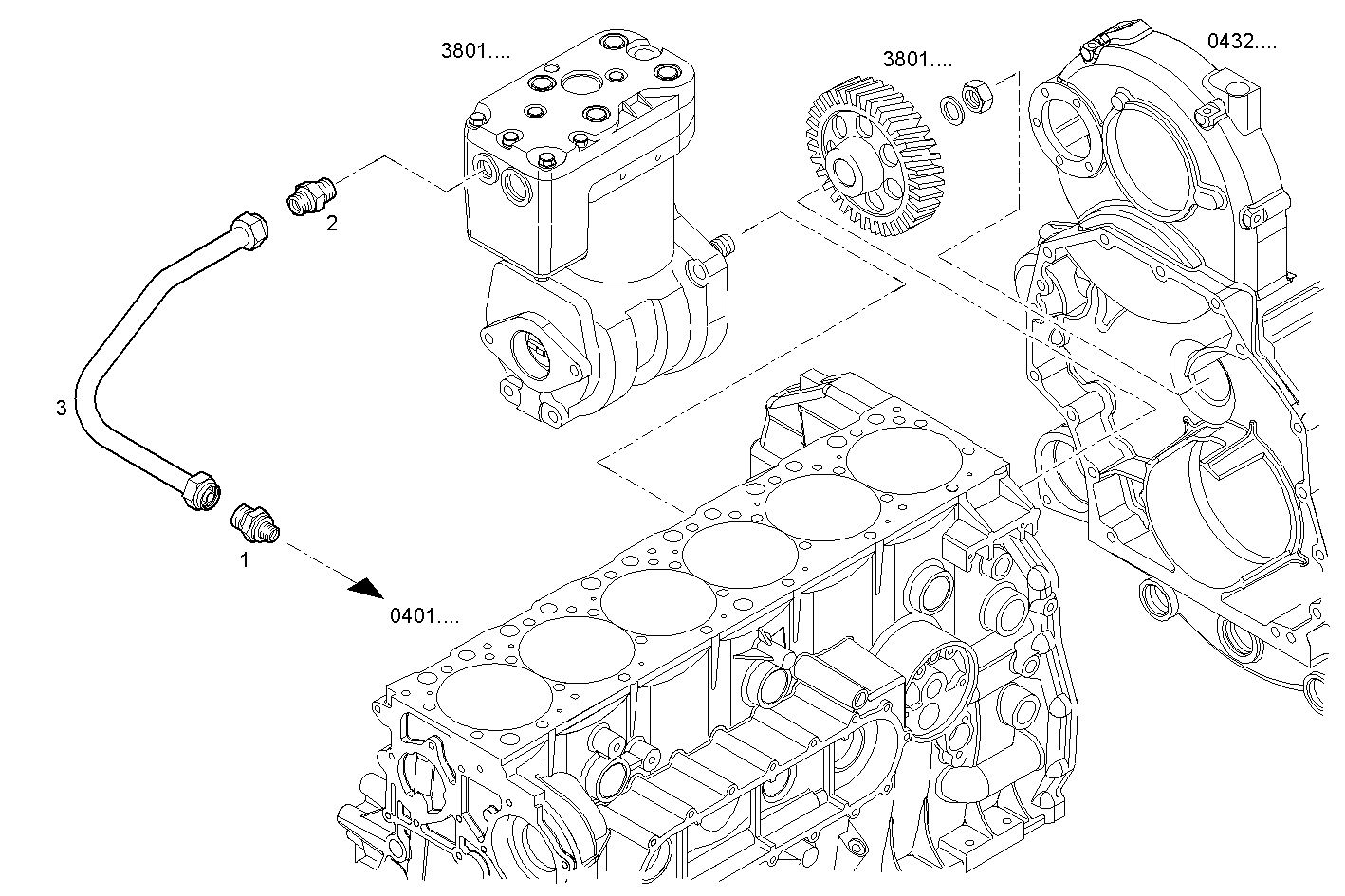

COMPRESSOR WATER INLET PIPE
Assembly ID: 3249.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504081274 | THREADED UNION | 1 | ||
| 2 | 504081277 | THREADED UNION | 1 | ||
| 3 | 504073755 | WATER PIPE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX20.00A003 | CURSOR 9 - TIER 3 | view |
