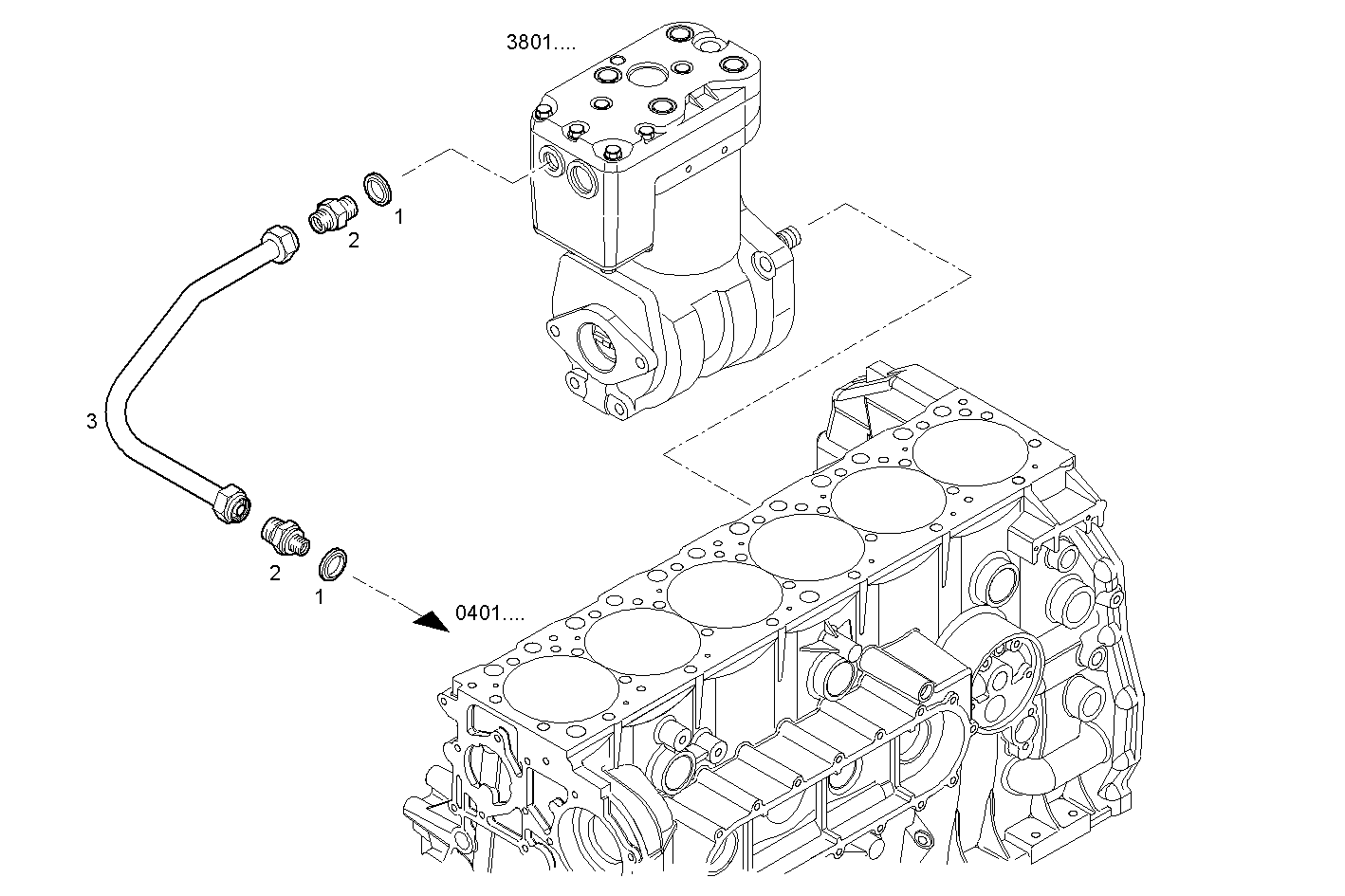

COMPRESSOR WATER INLET PIPE
Assembly ID: 3249.009
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99489020 | SEAL GASKET | 2 | ||
| 2 | 16500415 | PIPE SOCKET | 2 | ||
| 3 | 500354898 | WATER PIPE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0681D*B315 | CURSOR 10 - EURO 3 | view |
| C10ENTC23.00A002 | CURSOR 10 - EURO 3 | view |
