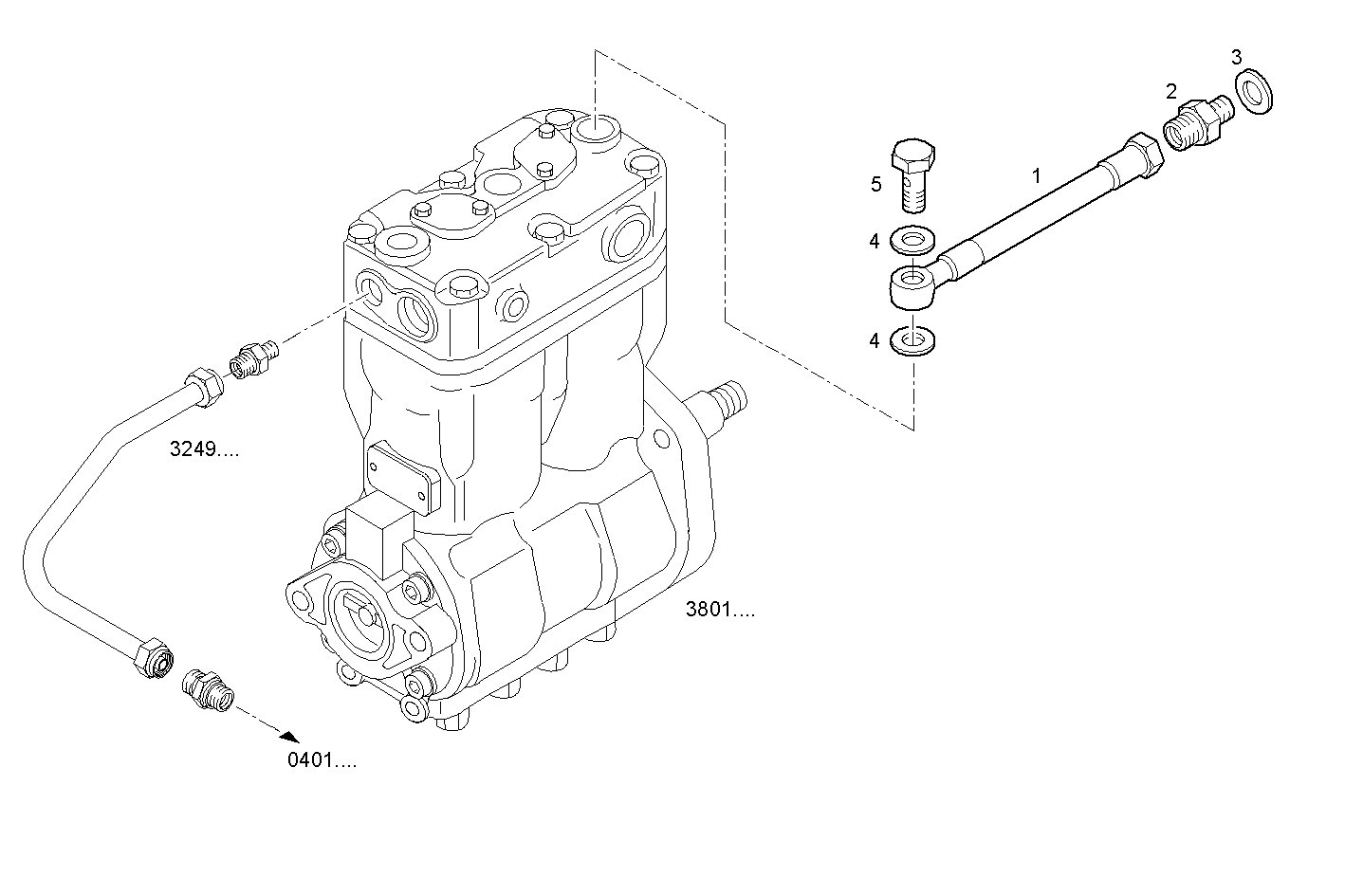

COMPRESSOR EXIT PIPE
Assembly ID: 3250.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504164149 | WATER PIPE | 1 | ||
| 2 | 504081274 | THREADED UNION | 1 | ||
| 3 | 99489019 | WASHER | 1 | ||
| 4 | 98474311 | SEAL GASKET | 2 | ||
| 5 | 504081280 | BANJO BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE0681B*B200 | CURSOR 9 - EURO 3 | view |
| F2CE0681B*B201 | CURSOR 9 - EURO 3 | view |
