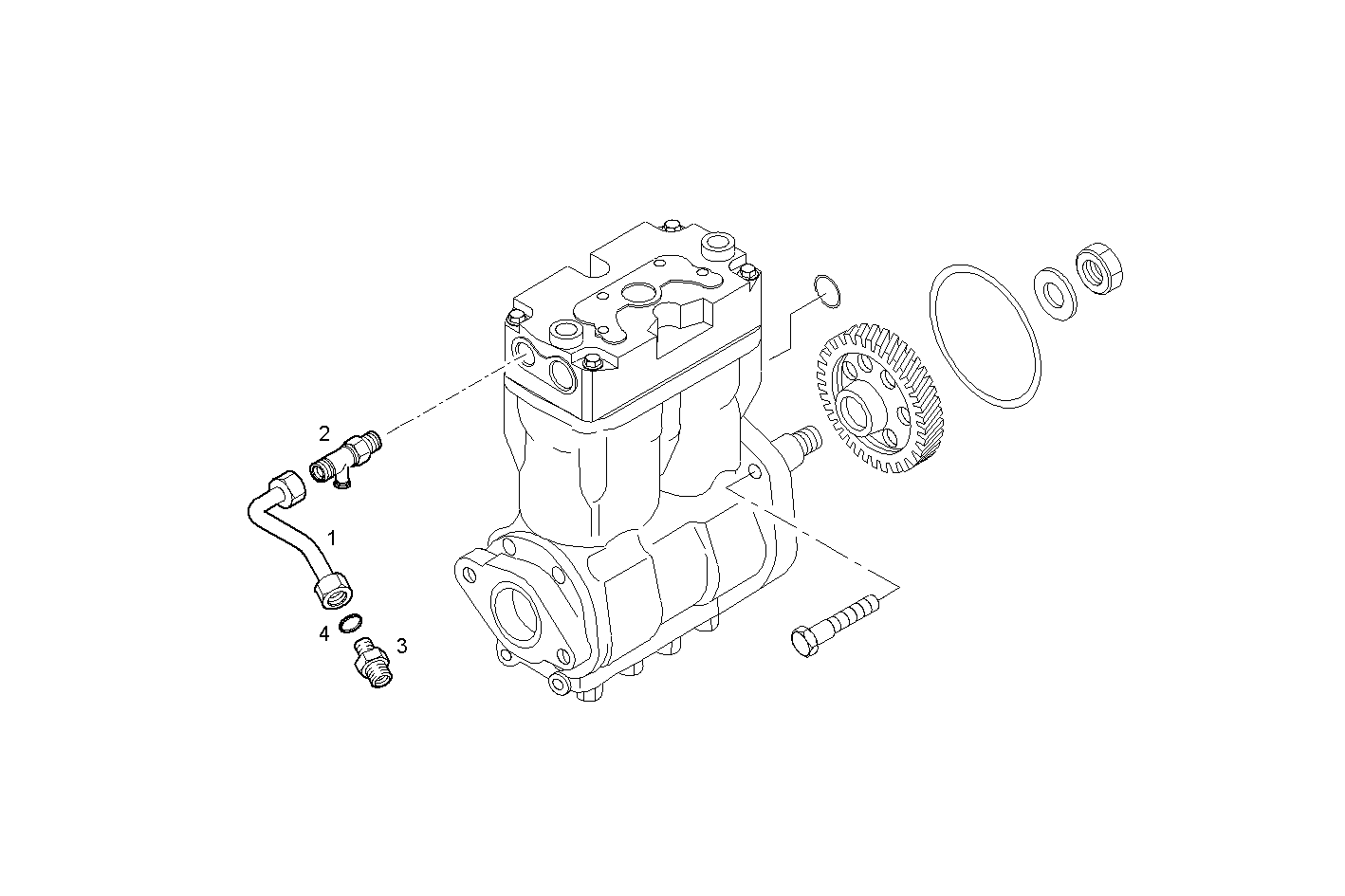

COMPRESSOR EXIT PIPE
Assembly ID: 3250.003
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504141089 | WATER PIPE | 1 | ||
| 2 | 41281587 | T-COUPLING | 1 | ||
| 3 | 16500415 | PIPE SOCKET | 1 | ||
| 4 | 99489020 | SEAL GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
