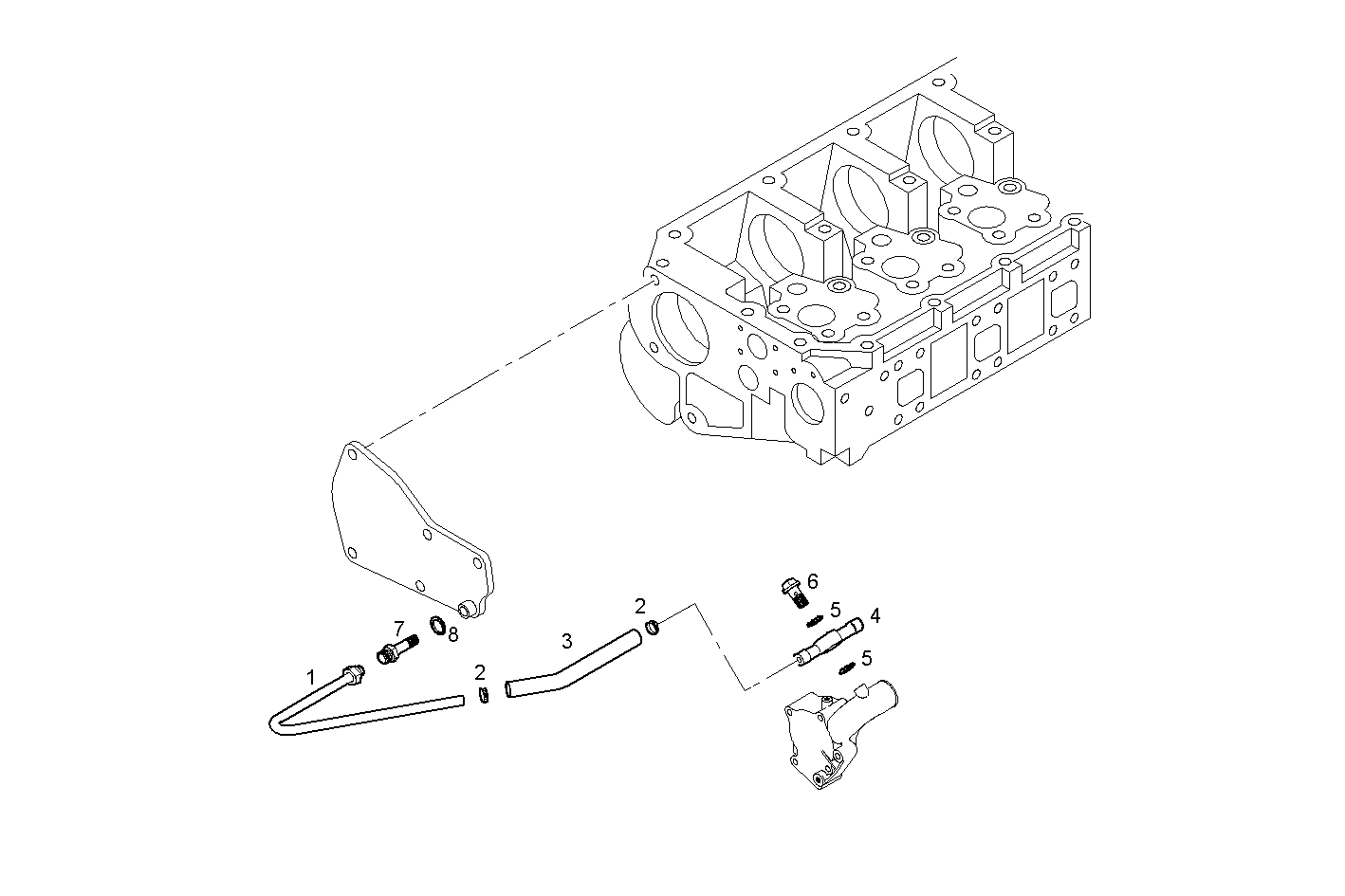

BLEEDER TUBING
Assembly ID: 3252.002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500380190 | PIPE | 1 | ||
| 2 | 18087993 | CLIP | 2 | ||
| 3 | 500378844 | WATER HOSE | 1 | ||
| 4 | 4627990 | BREATHER CONN. | 1 | ||
| 5 | 98474305 | WASHER | 2 | ||
| 6 | 4864081 | SCREW CONNECTOR | 1 | ||
| 7 | 99454269 | THREADED UNION | 1 | ||
| 8 | 99489016 | SEAL GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0642A*A002 | CURSOR 8 CNG | view |
| F2BE0642A*A003 | CURSOR 8 CNG | view |
| F2BE0642B*A001 | CURSOR 8 CNG | view |
| F2BE3681B*U056 | CURSOR 8 - EURO 5 | view |
| F2BE0642A*A009 | CURSOR 8 CNG | view |
| C78ENTG20.00A001 | CURSOR 8 CNG | view |
