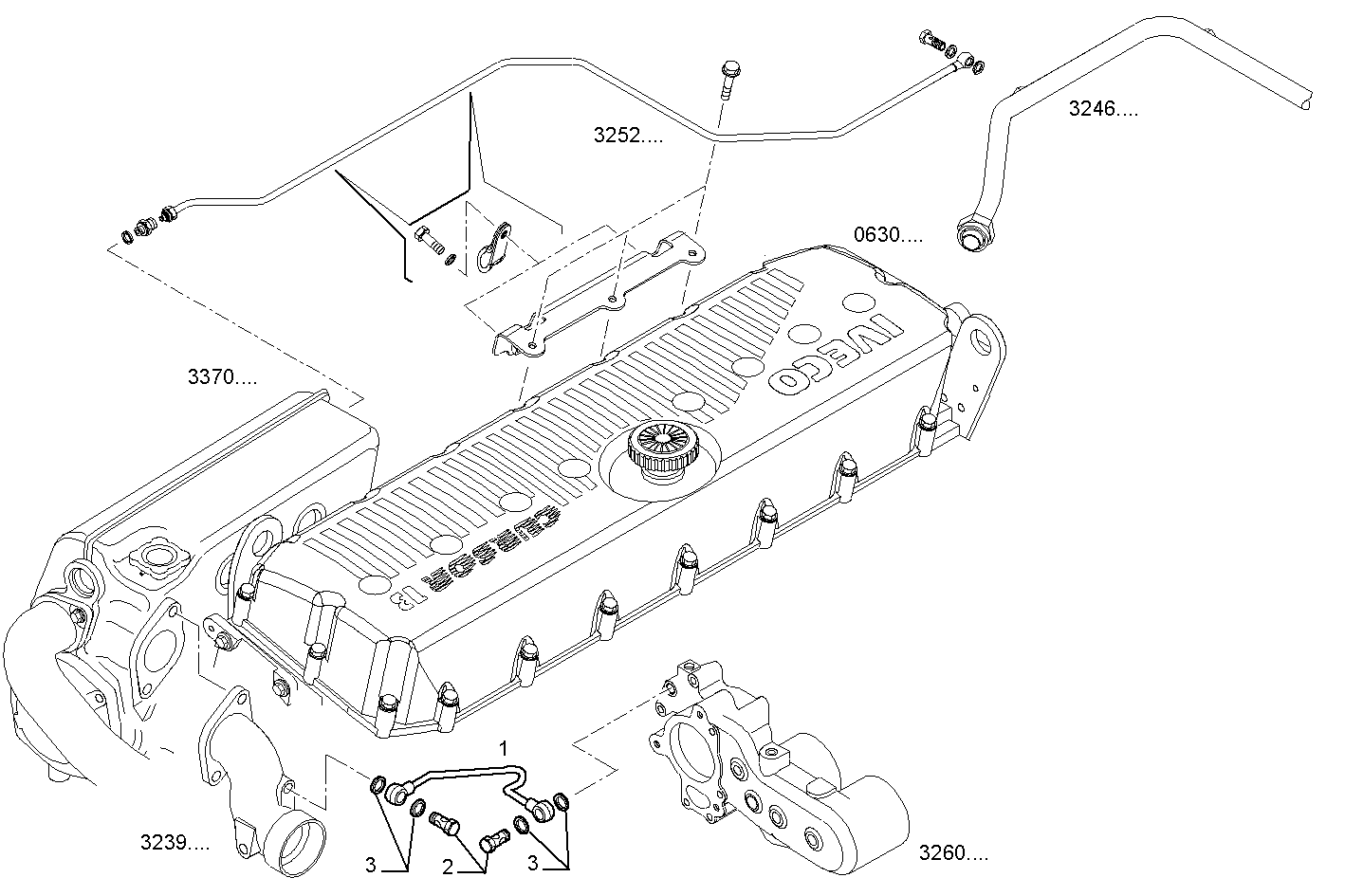

BLEEDER TUBING
Assembly ID: 3252.033
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8049386 | BREATHER PIPE | 1 | ||
| 2 | 4864083 | SCREW CONNECTOR | 2 | ||
| 3 | 98474308 | SEAL GASKET | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8049386 | BREATHER PIPE | 1 | ||
| 2 | 4864083 | SCREW CONNECTOR | 2 | ||
| 3 | 98474308 | SEAL GASKET | 4 |
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
