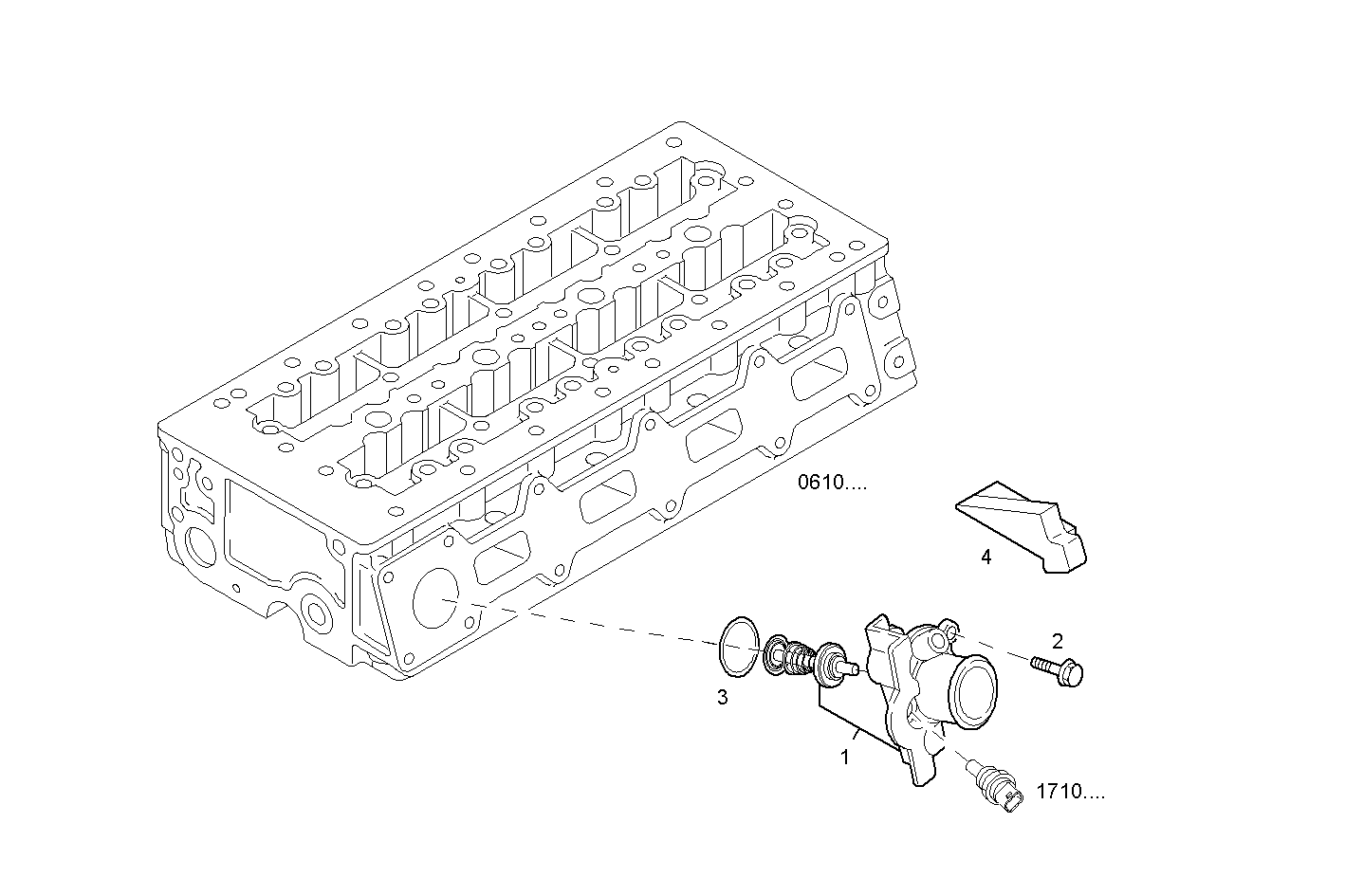

TEMPERATURE REGULATOR
Assembly ID: 3260.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504017209 | THERMOSTAT BODY | 1 | ||
| 2 | 16673734 | HEXAGON BOLT | 4 | ||
| 3 | 17284181 | O-RING | 1 | ||
| 4 | 504071259 | RUBBER LUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481B*A301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*B301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
