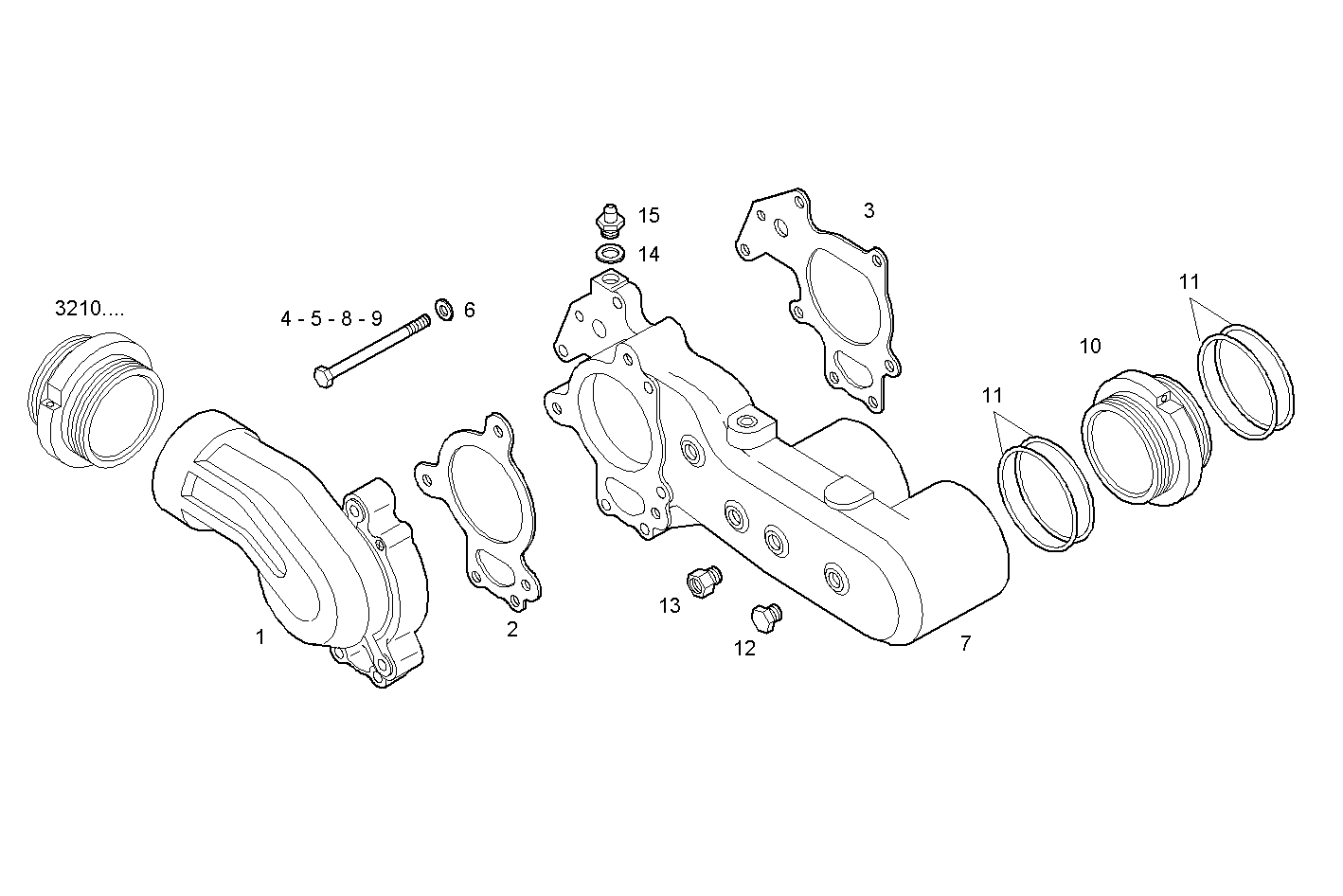

TEMPERATURE REGULATOR
Assembly ID: 3260.008
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8032185 | THERMOSTAT | 1 | ||
| 2 | 8032186 | FLAT ENGINE GASKET | 1 | ||
| 3 | 8032184 | FLAT ENGINE GASKET | 1 | ||
| 4 | 16606524 | HEXAGON BOLT | 2 | ||
| 5 | 16606824 | HEXAGON BOLT | 1 | ||
| 6 | 17089474 | SPRING WASHER | 7 | ||
| 7 | 8032716 | WATER MANIFOLD | 1 | ||
| 8 | 16607124 | HEXAGON BOLT | 2 | ||
| 9 | 16607024 | HEXAGON BOLT | 2 | ||
| 10 | 8032183 | SPACING BAR | 2 | ||
| 11 | 17290581 | O-RING | 8 | ||
| 12 | 8034352 | PLUG | 1 | ||
| 13 | 8041871 | THREADED UNION | 1 | ||
| 14 | 99489017 | SEAL GASKET | 1 | ||
| 15 | 500304562 | BREATHER PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
