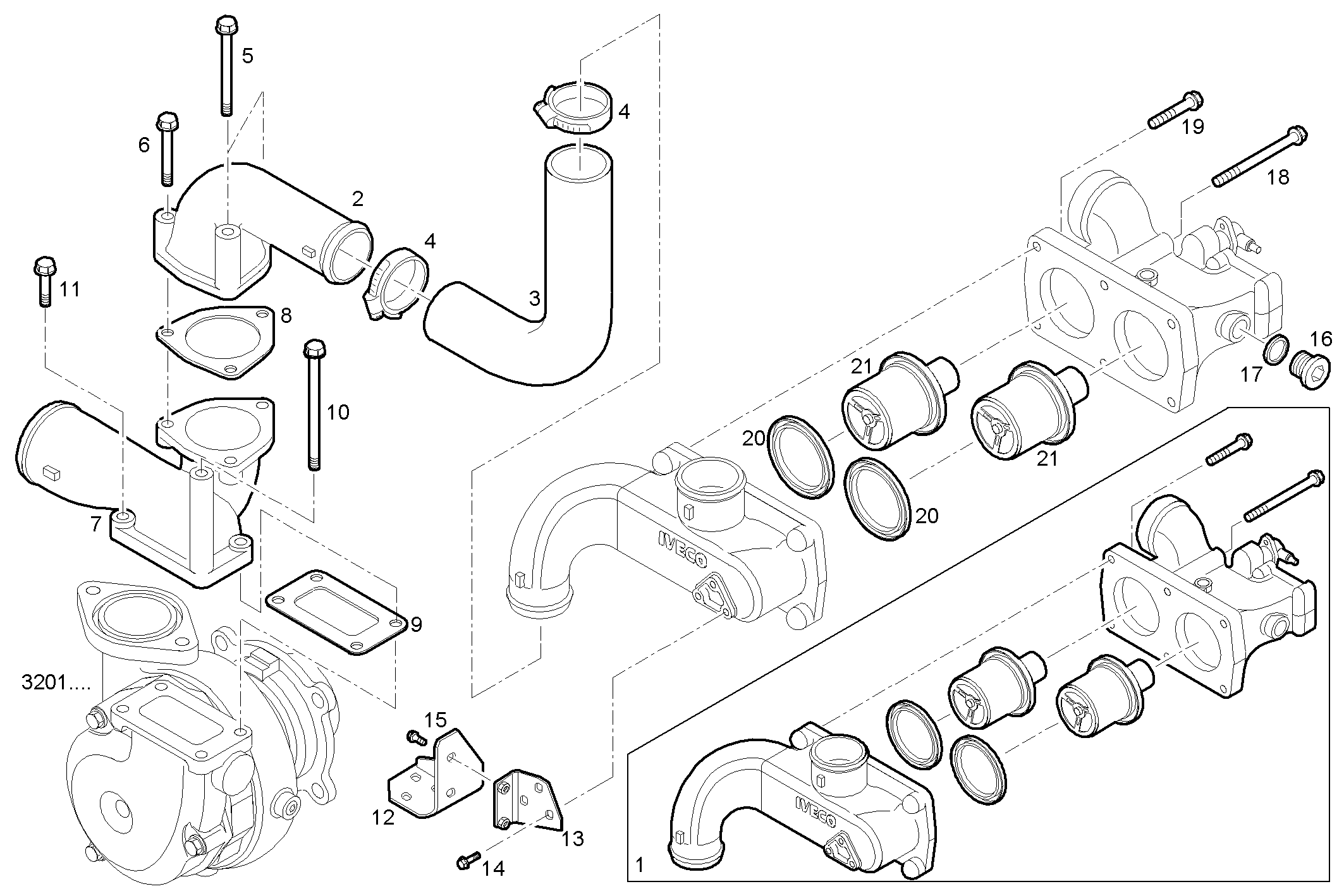

| 1 |
504114244
|
THERMOSTAT BODY
|
|
1
|
|
| 2 |
504096035
|
WATER PIPE
|
|
1
|
|
| 3 |
504095578
|
WATER HOSE
|
|
1
|
|
| 4 |
18088392
|
CLIP
|
|
2
|
|
| 5 |
16592525
|
HEXAGON BOLT
|
|
2
|
|
| 6 |
16586725
|
HEXAGON BOLT
|
|
1
|
|
| 7 |
504096634
|
WATER PIPE
|
|
1
|
|
| 8 |
504096749
|
FLAT ENGINE GASKET
|
|
1
|
|
| 9 |
504065725
|
FLAT ENGINE GASKET
|
|
1
|
|
| 10 |
16673735
|
HEXAGON BOLT
|
|
2
|
|
| 11 |
16598224
|
HEXAGON BOLT
|
|
2
|
|
| 12 |
504117010
|
SUPPORT
|
|
1
|
|
| 13 |
504117048
|
SUPPORT
|
|
1
|
|
| 14 |
16586225
|
HEXAGON BOLT
|
|
6
|
|
| 15 |
16600224
|
HEXAGON BOLT
|
|
2
|
|
| 16 |
16993311
|
THREADED PLUG
|
|
1
|
|
| 17 |
99489020
|
SEAL GASKET
|
|
1
|
|
| 18 |
16592625
|
HEXAGON BOLT
|
|
2
|
|
| 19 |
16673735
|
HEXAGON BOLT
|
|
4
|
|
| 20 |
8039230
|
WASHER
|
|
2
|
|
| 21 |
504114246
|
THERMOSTAT
|
|
2
|
|
